Yanmar YM342 vs TYM 4215C | Side-by-side comparison | ITC Resource Center
Compare Tractors

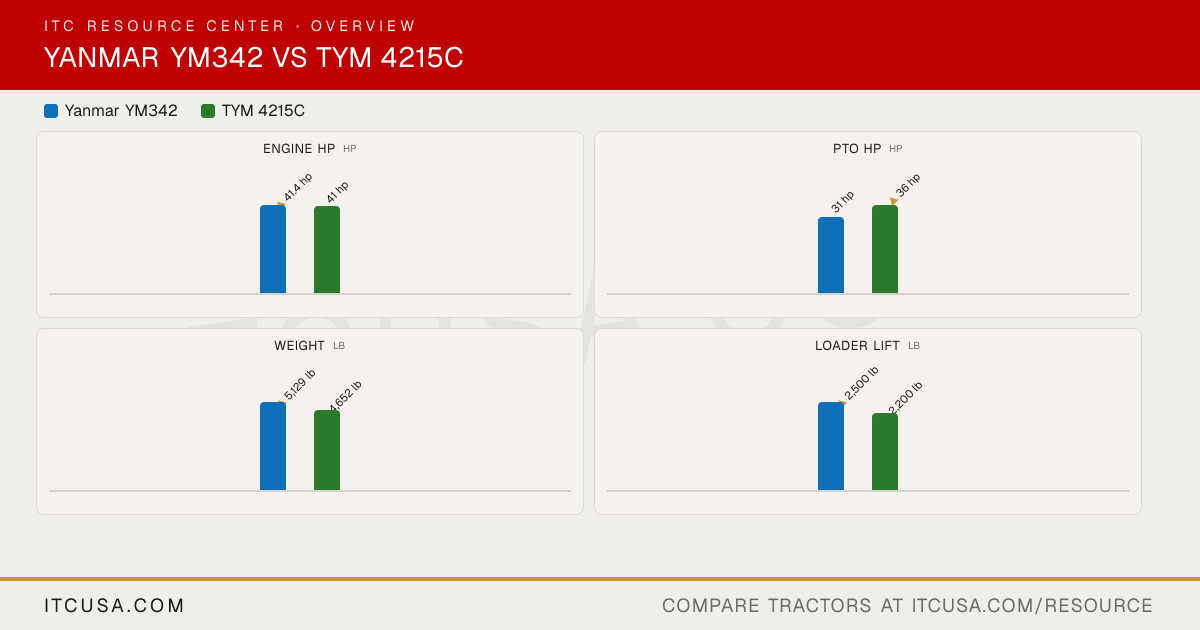

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
YanmarYM342
TYM4215C
Engine Manufacturer
Yanmar
TYM
Engine Model
4TNV88C-XKITL
T2000N2
Engine Type
4-cylinder, liquid-cooled diesel
4-cylinder, naturally aspirated diesel
No. of Cylinders
4
4
Displacement
133.6 in³
139.5 in³
Rated Engine Speed
Not Published
2600 rpm
Engine Power (Gross)
41.4 hp
41 hp
PTO Power
31 hp
36 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid cooled
Liquid-cooled
Air Cleaner
Dual air cleaner element
Dry element
Fuel System
Not Published
IDI
Alternator
Not Published
70 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
9.3 gpm
11.4 gpm
Steering Flow
5.3 gpm
5.2 gpm
Total Hydraulic Flow
14.6 gpm
16.5 gpm
Overall Hydraulic Pump Flow
14.6 gpm
16.5 gpm
Hydraulic System Type
Not Published
Dual gear pump
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
Rear: 0 (loader: 2)
No. of Optional Remote Valves
2
Up to 4
Fuel Tank Capacity
13.2 gal
7.1 gal
Coolant Capacity
6.3 qt
5.8 qt
Crankcase Capacity
5.1 qt
4.8 qt
Transmission / Hydraulic System Capacity
9.0 gal
9.8 gal
Front Axle Fluid Capacity
2.4 gal
6.8 qt
PTO Type
Independent
Independent
PTO Rear
540/540E rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I & II
Category I
Hitch Lift Capacity
3,190 lb
3,306 lb
Hitch Lift Capacity (at 24”)
2,750 lb
2,425 lb
Lift Control Type
Not Published
Position control
Transmission Type
Synchronized shuttle shift
HST (hydrostatic)
No. of Speeds
F8-R8
3-range hydrostatic
Max Travel Speed (Forward)
17.7 mph
18 mph
Max Travel Speed (Reverse)
Not Published
17.95 mph
Clutch
Dry Single
Not Published
Differential Lock & Limited Slip Options
Differential lock (foot pedal)
Differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic
Brakes
Not Published
Wet, multi-disc
Seat Suspension & Adjustability
Suspension seat
Suspension seat
Front Axle Type
Selectable 2WD/4WD engagement
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
70.9 in (with R4 tires)
55.6 in
Wheelbase
74.8 in
65.7 in
Ground Clearance
15.5 in
13.1 in
Min. Turn Radius without Brakes
138 in
124.8 in (left); 121.3 in (right)
Height to Top of ROPS
98.0 in (with R4 tires)
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
89.3 in
Overall Length
133.6 in (with 3PH and R4 tires)
120.9 in (with 3-point hitch)
Tractor Weight (Base)
3,916 lb
3,644 lb (with cab)
Weight with ROPS and Loader
5,129 lb (3,916 + 1,213, computed; YL605 loader)
Not Published
Weight with Cab and Loader
Not Published
4,652 lb (3,644 + 1,008, computed; BL150C loader total weight)
Tire Size & Options
AG; Industrial; Turf
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
8.0 - 16.0
7-16
R1 Agricultural - Rear
14.9 - 24.0
11.2-24
R3 Turf - Front
27.0 - 10.5
27x8.5-15, 6PR
R3 Turf - Rear
44 x 18 - 20.0
41x14.00, 4PR
R4 Industrial - Front
10.0 - 16.5
25x8.5-14, 6PR
R4 Industrial - Rear
17.5L - 24.0
380/70-19.5, 6PR (standard); 15-19.5 (option)
Quick Attach Loader System
YL605: Skid steer quick attach
BL150C: quick attachment assembly
Loader Model
YL605
BL150C
Loader Lift Height
YL605: 113.0 in
BL150C: 104.9 in
Loader Lift Capacity (Full Height)
YL605: 2,500 lb (at pivot pin)
BL150C: 2,200 lb (at pivot pin)
Loader Breakout Force
YL605: 3,047 lb
BL150C: 3,422 lb (at pivot pin, ground level)
Warranty Length & Coverage
Powertrain 10 years or 3,000 hours
Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
