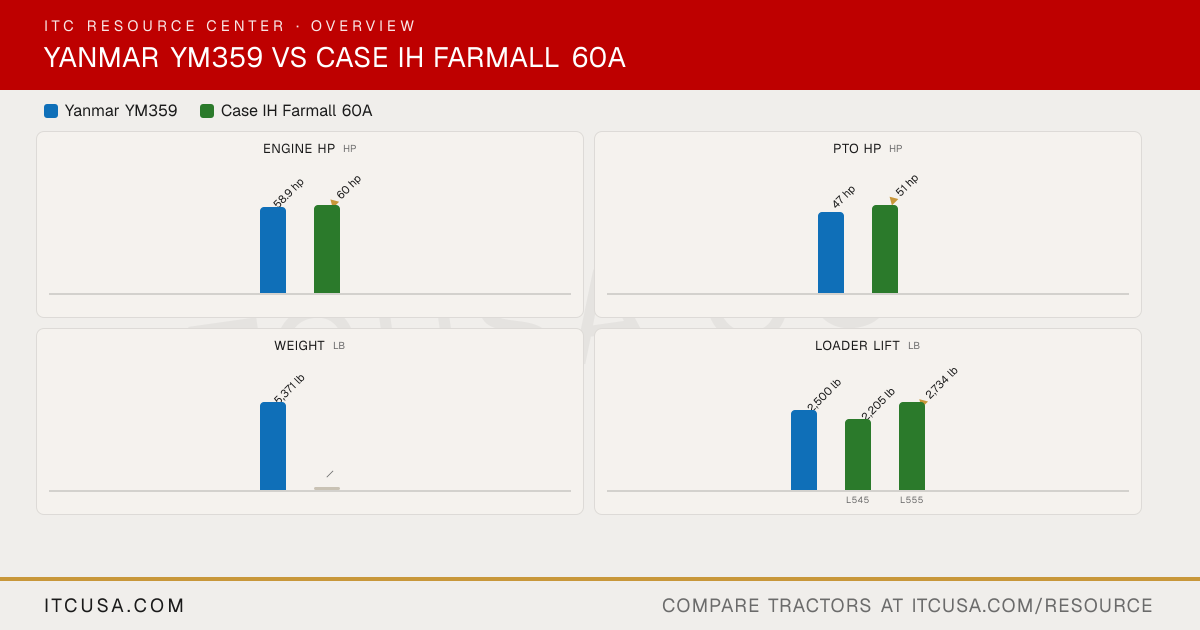

▶ EngineEngine Manufacturer Yanmar FPT Engine Model 4TNV98C-XNITL R 753 IE4 Engine Type 4-cylinder, liquid-cooled diesel 3-cylinder, FPT turbocharged & aftercooled No. of Cylinders 4 3 Displacement 202.4 in³ 135.9 in³ Rated Engine Speed 2500 rpm 2600 rpm Engine Power (Gross) 58.9 hp 60 hp PTO Power 47 hp 51 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Dual air cleaner element Dry Fuel System Not Published Electronic high pressure common rail Alternator Not Published 75 A ▶ HydraulicsPump Type Not Published Engine-driven dual gear-type Implement Flow 10.2 gpm 11.9 gpm Steering Flow 5.7 gpm 5.5 gpm Total Hydraulic Flow 15.9 gpm 17.4 gpm (11.9 + 5.5, computed) Overall Hydraulic Pump Flow 15.9 gpm Not Published Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 1 No. of Optional Remote Valves 2 2 ▶ Fluid CapacityFuel Tank Capacity 13.2 gal 17.2 gal Coolant Capacity 8.1 qt Not Published Crankcase Capacity 9.2 qt Not Published Transmission / Hydraulic System Capacity 9.0 gal Not Published Front Axle Fluid Capacity 2.4 gal Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540/540E rpm 540 / 540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I & II Category I/II Hitch Lift Capacity 3,190 lb Not Published Hitch Lift Capacity (at 24”) 2,750 lb 2,701 lb Lift Control Type Not Published Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type Synchronized shuttle shift 8x8 mechanical shuttle (dry clutch) No. of Speeds F8-R8 8F/8R Max Travel Speed (Forward) 18.5 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry Single Dry clutch Differential Lock & Limited Slip Options Differential lock (foot pedal) Mechanical rear differential lock; MFD engagement mechanical; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Brakes Not Published Wet disc Seat Suspension & Adjustability Suspension seat Contoured seat, adjustable Front Axle Type Selectable 2WD/4WD engagement 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 133.9 in (with 3PH and R4 tires) 2WD: 129.5 in; MFD: 134.0 in Overall Width 70.9 in (with R4 tires) 67.5 in Wheelbase 77.5 in 2WD: 77.5 in; MFD: 77.7 in Ground Clearance 15.5 in Not Published Min. Turn Radius without Brakes 142 in 2WD: 135.8 in; MFD: 190.9 in Height to Top of ROPS 98.0 in (with R4 tires) 2WD: 92.7 in; MFD: 97.4 in Height to Top of ROPS (folded) Not Published 77 in Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 4,158 lb 2WD: 4,442 lb; MFD: 5,060 lb Weight with ROPS and Loader 5,371 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 (bar tread) 2WD or MFD; R4 (industrial tread) MFD R1 Agricultural - Front 210/95R16 (Radial) 2WD: 7.5x16; MFD: 8.3x24 R1 Agricultural - Rear 420/85R24 (Radial) 13.6x28 R3 Turf - Front 27.0 - 10.5 Not Published R3 Turf - Rear 44 x 18 - 20.0 Not Published R4 Industrial - Front 10.0 - 16.5 MFD: 12.5x18 R4 Industrial - Rear 16.9 - 24.0 MFD: 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System YL605: Skid steer quick attach Compatible loaders: L545, L555 Loader Model YL605 L545; L555 Loader Lift Height YL605: 113.0 in L545: 106 in; L555: 105 in Loader Lift Capacity (Full Height) YL605: 2,500 lb L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb Loader Breakout Force YL605: 3,047 lb (19.7 in forward of pivot pin) L545: 3,131 lb; L555: 3,527 lb ▶ WarrantyWarranty Length & Coverage 10-year limited powertrain warranty or 3,000 hours (whichever comes first) Not Published
