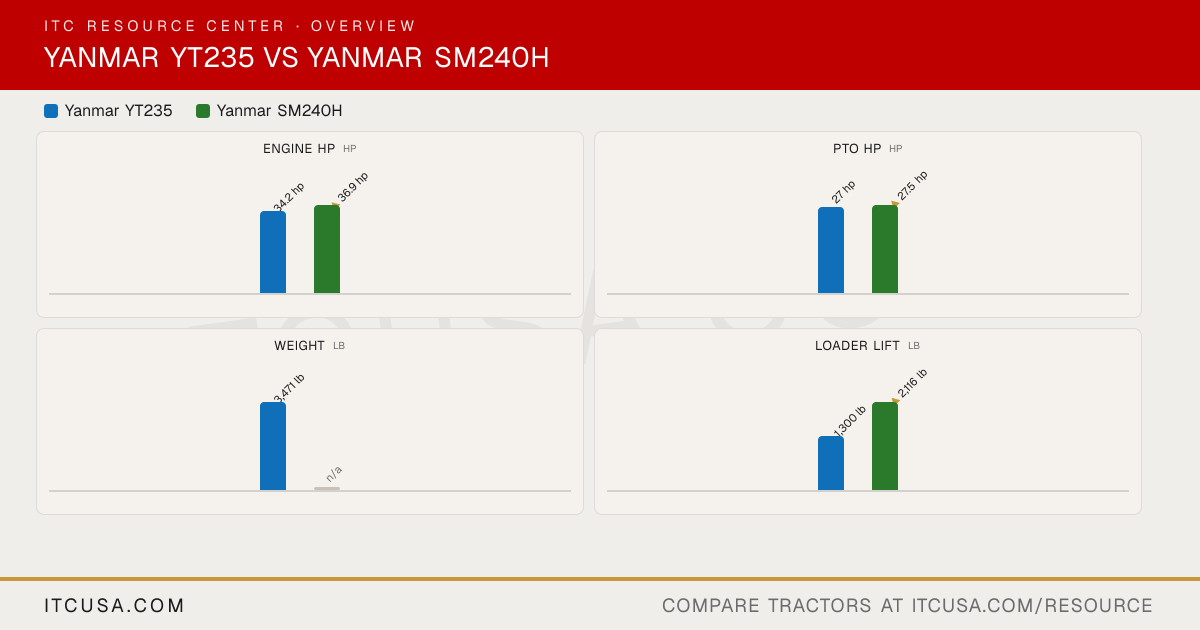

▶ EngineEngine Manufacturer YANMAR Yanmar Engine Model 3TNV88C Not Published Engine Type 3-cylinder, naturally aspirated diesel Not Published No. of Cylinders 3 Not Published Displacement 100.1 in³ Not Published Rated Engine Speed 2800 rpm 3000 rpm Engine Power (Gross) 34.2 hp 36.9 hp PTO Power 27 hp 27.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Not Published Air Cleaner Dual stage cyclonic (resin 5.5 in.) Not Published Fuel System Common rail direct injection Not Published Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 7.1 gpm 6.1 gpm Steering Flow 4.1 gpm 4.4 gpm Total Hydraulic Flow 11.2 gpm (7.1 + 4.1, computed) 10.5 gpm Overall Hydraulic Pump Flow 11.2 gpm (7.1 + 4.1, computed) 10.5 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published 1 or 2 ▶ Fluid CapacityFuel Tank Capacity 7.4 gal 9.0 gal Coolant Capacity 4.8 qt Not Published Crankcase Capacity 4.6 qt Not Published Transmission / Hydraulic System Capacity 8.2 gal Not Published Front Axle Fluid Capacity 2.4 gal Not Published ▶ PTO & HitchPTO Type Independent (electro-hydraulic) Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Standard Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,205 lb 2,639 lb Hitch Lift Capacity (at 24”) 1,764 lb 1,558 lb Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type Hydrostatic (Dual Touch Pedal) Hydrostatic No. of Speeds Unlimited (hydrostatic); 3 ranges Not Published Max Travel Speed (Forward) 11.7 mph (with R4 tires) Not Published Max Travel Speed (Reverse) 8.2 mph (with R4 tires) Not Published Clutch N/A (hydrostatic) Not Published Differential Lock & Limited Slip Options Rear differential lock (foot pedal engagement) Rear differential lock (foot pedal engagement) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Fully hydraulic power steering Not Published Brakes Wet disc Dual brakes Seat Suspension & Adjustability Not Published Comfortable, ergonomic operator's seat Front Axle Type 2WD/4WD selectable engagement Selectable 2WD/4WD engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 116.9 in Not Published Overall Width 58.3 in (with R4 tires) Not Published Wheelbase 65 in Not Published Ground Clearance 10.8 in (with R4 tires) 12.8 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 89.0 in (with R4 tires) Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,558 lb (with ROPS, R4 tires, full fluid) 3,020 lb Weight with ROPS and Loader 3,471 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial Not Published R1 Agricultural - Front 6-14 Not Published R1 Agricultural - Rear 9.5-22 Not Published R3 Turf - Front 25x8.5-14 Not Published R3 Turf - Rear 13.6x16 Not Published R4 Industrial - Front 25x8.5-14 Not Published R4 Industrial - Rear 15-19.6 Not Published ▶ Loader & AttachmentsQuick Attach Loader System YL310: Skid steer style bucket attachment Not Published Loader Model YL310 RL505 Loader Lift Height YL310: 84 in (to bucket pivot pin) RL505: 101.5 in Loader Lift Capacity (Full Height) YL310: 1,300 lb at pivot pins RL505: 2,116 lb Loader Breakout Force YL310: 2,105 lb at pivot pins RL505: 3,435 lb ▶ WarrantyWarranty Length & Coverage Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours
