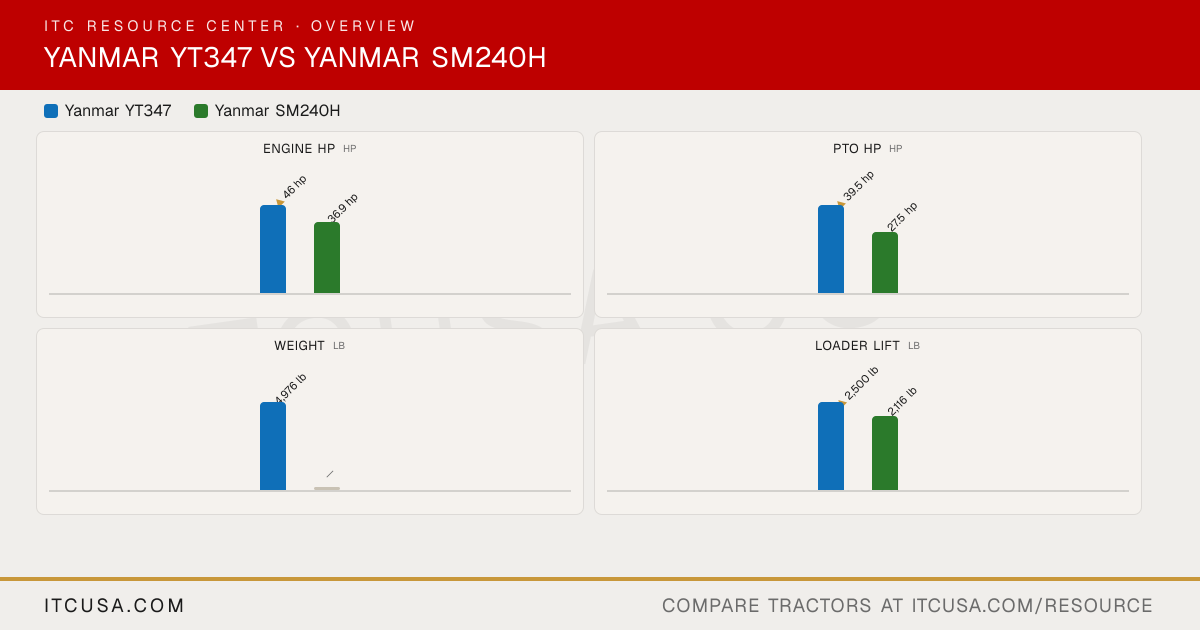

▶ EngineEngine Manufacturer YANMAR Yanmar Engine Model 4TNV88C Not Published Engine Type 4-cylinder, naturally aspirated diesel Not Published No. of Cylinders 4 Not Published Displacement 133.5 in³ Not Published Rated Engine Speed 2800 rpm 3000 rpm Engine Power (Gross) 46 hp 36.9 hp PTO Power 39.5 hp 27.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Not Published Air Cleaner Dual stage cyclonic (resin 5.5") Not Published Fuel System Common rail direct injection Not Published Alternator 55 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 10.1 gpm 6.1 gpm Steering Flow 5.7 gpm 4.4 gpm Total Hydraulic Flow 15.8 gpm (10.1 + 5.7, computed) 10.5 gpm Overall Hydraulic Pump Flow 15.8 gpm (10.1 + 5.7, computed) 10.5 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves 1 1 or 2 ▶ Fluid CapacityFuel Tank Capacity 12.7 gal 9.0 gal Coolant Capacity 6.2 qt Not Published Crankcase Capacity 7.0 qt Not Published Transmission / Hydraulic System Capacity 7.7 gal Not Published Front Axle Fluid Capacity 2.4 gal Not Published ▶ PTO & HitchPTO Type Independent (electro-hydraulic) Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,307 lb 2,639 lb Hitch Lift Capacity (at 24”) 2,756 lb 1,558 lb Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type I-HMT (Integrated Hydro Mechanical Transmission) Hydrostatic No. of Speeds 3 ranges (variable speed) Not Published Max Travel Speed (Forward) 18 mph (with R1 tires) Not Published Max Travel Speed (Reverse) 18 mph (with R1 tires) Not Published Clutch Clutch-less shifting (i-HMT) Not Published Differential Lock & Limited Slip Options Rear differential lock (foot pedal engagement) Rear differential lock (foot pedal engagement) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Fully hydraulic power steering Not Published Brakes Mechanical wet disc Dual brakes Seat Suspension & Adjustability Not Published Comfortable, ergonomic operator's seat Front Axle Type 2WD/4WD selectable engagement Selectable 2WD/4WD engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 130.9 in Not Published Overall Width 70.6 in (with R4 tires) Not Published Wheelbase 75.9 in Not Published Ground Clearance 12.8 in (with R4 tires) 12.8 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 95.7 in (with R4 tires) Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3,880 lb (with ROPS, R4 tires, full fluid) 3,020 lb Weight with ROPS and Loader 4,976 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial Not Published R1 Agricultural - Front 8-16 Not Published R1 Agricultural - Rear 14.9-24 Not Published R3 Turf - Front 27x10.5-15 Not Published R3 Turf - Rear 44x18-20 Not Published R4 Industrial - Front 10-16.5 Not Published R4 Industrial - Rear 17.5L-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System YL610: Skid-steer-style loader quick attachment system Not Published Loader Model YL610 RL505 Loader Lift Height YL610: 113 in (to bucket pivot pin) RL505: 101.5 in Loader Lift Capacity (Full Height) YL610: 2,500 lb at pivot pins RL505: 2,116 lb Loader Breakout Force YL610: 3,969 lb at pivot pins RL505: 3,435 lb ▶ WarrantyWarranty Length & Coverage Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours
