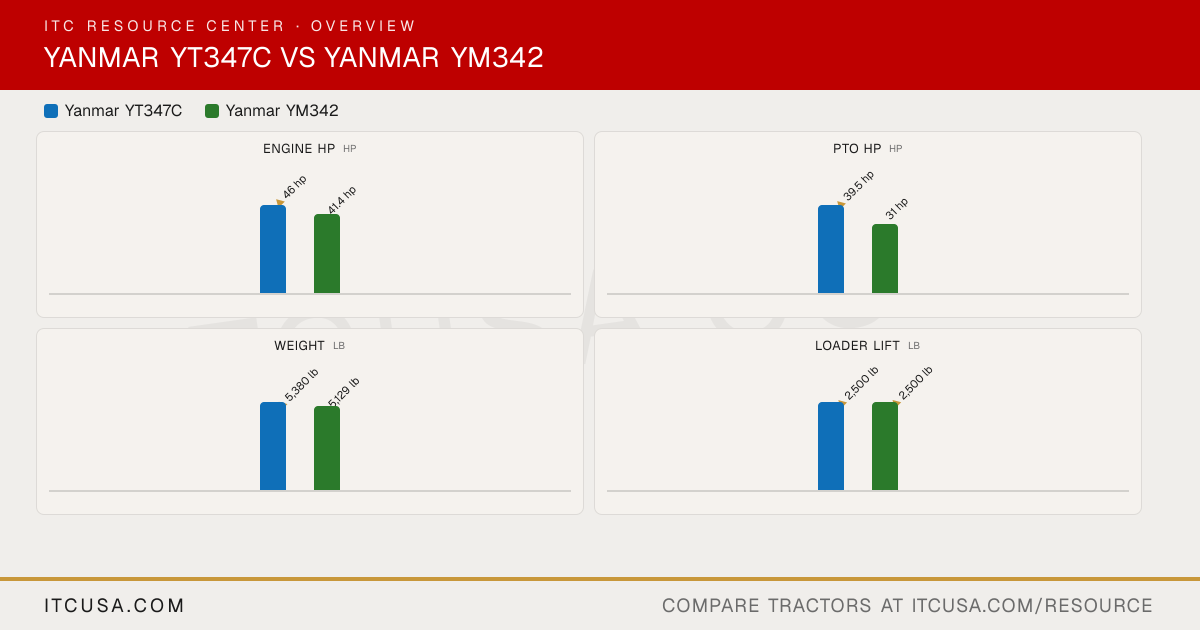

▶ EnginePTO Power 39.5 hp 31 hp Alternator 55 A, 12 V Not Published Air Cleaner Dual stage cyclonic (resin 5.5") Dual air cleaner element Engine Type 4-cylinder, naturally aspirated diesel 4-cylinder, liquid-cooled diesel Fuel System Common rail direct injection Not Published Displacement 133.6 in³ 133.6 in³ No. of Cylinders 4 4 Rated Engine Speed 2800 rpm Not Published Cooling System Type Liquid cooled Liquid cooled Engine Manufacturer YANMAR YANMAR Engine Power (Gross) 46 hp 41.4 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightWeight with ROPS and Loader Not Applicable 5,129 lb Weight with Cab and Loader 5,380 lb Not Applicable ▶ WarrantyWarranty Length & Coverage Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty 10-year limited powertrain warranty or 3,000 hours (whichever comes first) ▶ HydraulicsPump Type Not Published Not Published Steering Flow 5.7 gpm 5.3 gpm Implement Flow 10.1 gpm 9.3 gpm Total Hydraulic Flow 15.8 gpm 14.6 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 15.8 gpm 14.6 gpm No. of Optional Remote Valves 1 2 No. of Standard Remote Valves 2 1 ▶ PTO & HitchPTO Rear 540 rpm 540/540E rpm PTO Type Independent (electro-hydraulic) Independent Lift Control Type Position control Not Published Hitch Lift Capacity 3,307 lb 3,190 lb Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I & II Hitch Lift Capacity (at 24”) 2,756 lb 2,750 lb ▶ Tire OptionsR3 Turf - Rear 44 x 18 - 20.0 44 x 18 - 20.0 R3 Turf - Front 27.0 - 10.5 27.0 - 10.5 Tire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural; R3 Turf; R4 Industrial R4 Industrial - Rear 4.6 gal - 24.0 4.6 gal - 24.0 R4 Industrial - Front 10.0 - 16.5 10.0 - 16.5 R1 Agricultural - Rear 14.9 - 24.0 14.9 - 24.0 R1 Agricultural - Front 8.0 - 16.0 8.0 - 16.0 ▶ Fluid CapacityCoolant Capacity 6.2 qt Not Published Crankcase Capacity 7.0 qt Not Published Fuel Tank Capacity 12.7 gal 13.2 gal Front Axle Fluid Capacity 2.4 gal Not Published Transmission / Hydraulic System Capacity 7.7 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 113 in 113 in Loader Breakout Force 3,969 lb 3,047 lb Quick Attach Loader System YL610: Skid-steer-style loader quick attachment system YL605: Skid steer quick attach Loader Lift Capacity (Full Height) 2,500 lb 2,500 lb (pivot pin) ▶ Transmission & DrivetrainClutch Clutch-less shifting (i-HMT) Dry single No. of Speeds 3 ranges (variable speed) 8F/8R Transmission Type I-HMT (Integrated Hydro Mechanical Transmission) Synchronized shuttle shift Max Travel Speed (Forward) 18 mph 17.7 mph Max Travel Speed (Reverse) 18 mph Not Published Differential Lock & Limited Slip Options Rear differential lock (foot pedal engagement) Not Published ▶ Chassis, Steering & ControlsBrakes Mechanical wet disc Not Published Steering Fully hydraulic power steering Power steering Frame Type Not Published Not Published Front Axle Type Selectable 2WD/4WD engagement Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Suspension seat ▶ Dimensions & ManeuverabilityWheelbase 75.9 in 74.8 in Overall Width 70.6 in 70.9 in (with R4 tires) Ground Clearance 12.8 in 15.5 in Height to Top of ROPS Not Applicable 98 in (with R4 tires) Height to Top of Cab Model 89.5 in Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published 11.5 ft (3.5 m) Overall Length with 3-Point Hitch 130.9 in 133.6 in (with 3PH and R4 tires)
