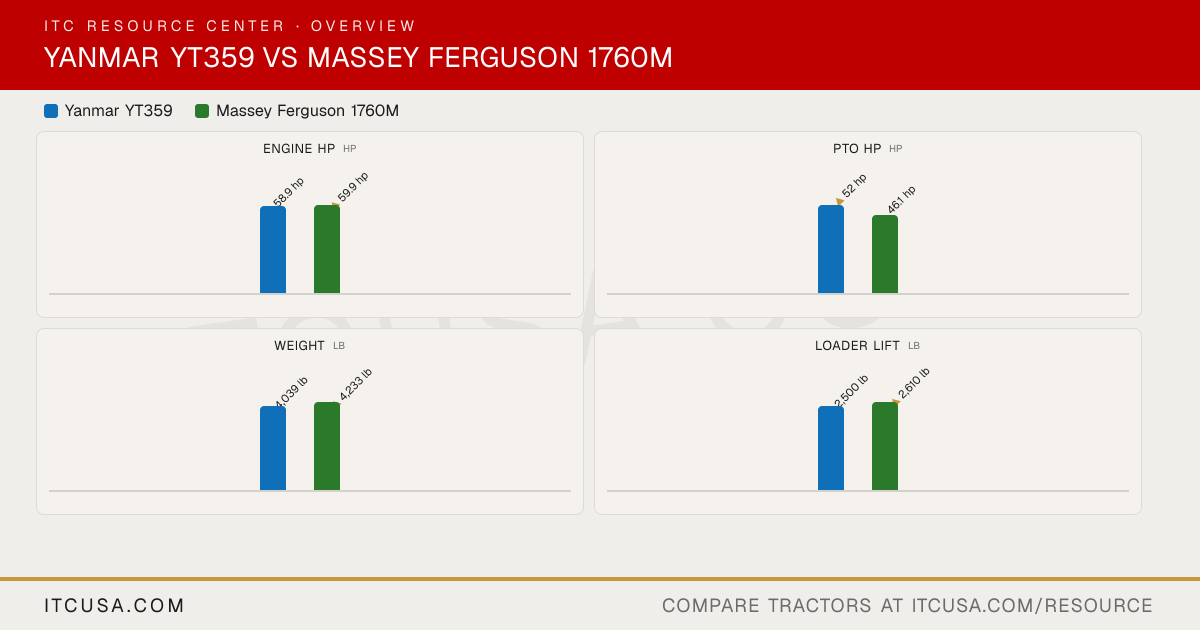

▶ EngineEngine Manufacturer YANMAR Shibaura Engine Model 4TNV98C N4LDI-TA Engine Type 4-cylinder, naturally aspirated diesel 4-cylinder turbocharged intercooled diesel, liquid-cooled No. of Cylinders 4 4 Displacement 202.5 in³ 135.2 in³ Rated Engine Speed 2500 rpm 2600 rpm Engine Power (Gross) 58.9 hp 59.9 hp PTO Power 52 hp 46.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Dual stage cyclonic (resin 6.5") Dry Fuel System Common rail direct injection Common rail direct injection Alternator 55 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Engine-driven gear-type pump Implement Flow 9.4 gpm Not Published Steering Flow 5.3 gpm Not Published Total Hydraulic Flow 14.7 gpm (9.4 + 5.3, computed) Not Published Overall Hydraulic Pump Flow 14.7 gpm (9.4 + 5.3, computed) 12x12 Power Shuttle: 12.7 gpm; HST: 12.6 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 12.1 gpm No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves 1 Up to 3 ▶ Fluid CapacityFuel Tank Capacity 12.7 gal 14.0 gal Coolant Capacity 7.8 qt 7.08 qt Crankcase Capacity 8.0 qt 6.87 qt Transmission / Hydraulic System Capacity 7.7 gal 12x12 Power Shuttle: 11.35 gal; HST: 9.25 gal Front Axle Fluid Capacity 2.4 gal 9.0 qt ▶ PTO & HitchPTO Type Independent (electro-hydraulic) Independent, with soft-start feature PTO Rear 540 rpm 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Not Published Optional, 2,000 rpm (not offered with the 12x12 power shuttle) Category, 3-Point Hitch Category I Category I with extendable ball ends Hitch Lift Capacity 3,307 lb Not Published Hitch Lift Capacity (at 24”) 2,756 lb 12x12 Power Shuttle: 3,307 lb; HST: 3,086 lb Lift Control Type Position control Position and draft control ▶ Transmission & DrivetrainTransmission Type I-HMT (Integrated Hydro Mechanical Transmission) 12 x 12 power shuttle or 3-range hydrostatic No. of Speeds 3 ranges (variable speed) 12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite Max Travel Speed (Forward) 18 mph (with R1 tires) Not Published Max Travel Speed (Reverse) 18 mph (with R1 tires) Not Published Clutch Clutch-less shifting (i-HMT) Multiple stage wet type Differential Lock & Limited Slip Options Rear differential lock (foot pedal engagement) Mechanical engagement via right side heel pedal ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Fully hydraulic power steering Power steering Brakes Mechanical wet disc Internal wet disc brakes, individual control via independent foot pedals Seat Suspension & Adjustability Not Published Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering Front Axle Type 2WD/4WD selectable engagement Cast steel 4WD front axle with center drive line and bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 132.1 in 12x12 Power Shuttle: 170.1 in; HST: 132.3 in Overall Width 70.6 in (with R4 tires) 12x12 Power Shuttle: 71.1 in; HST: 65.4 in Wheelbase 77.4 in 12x12 Power Shuttle: 80.3 in; HST: 77.9 in Ground Clearance 12.8 in (with R4 tires) 14.8 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 95.7 in (with R4 tires) 12x12 Power Shuttle: 103.2 in; HST: 102.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 12x12 Power Shuttle: 93.3 in; HST: 92.9 in ▶ WeightTractor Weight (Base) 4,039 lb (with ROPS, R4 tires, full fluid) 12x12 Power Shuttle: 4,233 lb Weight with ROPS and Loader 5,135 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 8-16 9.5x16 R1 Agricultural - Rear 14.9-24 16.9x26 R3 Turf - Front 27x10.5-15 27x10.50-15 R3 Turf - Rear 44x18-20 44x18.00-20 R4 Industrial - Front 10-16.5 12-16.5 R4 Industrial - Rear 17.5L-24 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System YL610: Skid-steer-style loader quick attachment system DL135: Skid steer quick attach Loader Model YL610 DL135 Loader Lift Height YL610: 113 in (to bucket pivot pin) DL135: 111 in Loader Lift Capacity (Full Height) YL610: 2,500 lb at pivot pins DL135: 2,610 lb Loader Breakout Force YL610: 3,969 lb at pivot pins DL135: 4,000 lb ▶ WarrantyWarranty Length & Coverage Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty 5-year powertrain warranty
