Yanmar YT359 vs TYM T4058P | Side-by-side comparison | ITC Resource Center
Compare Tractors

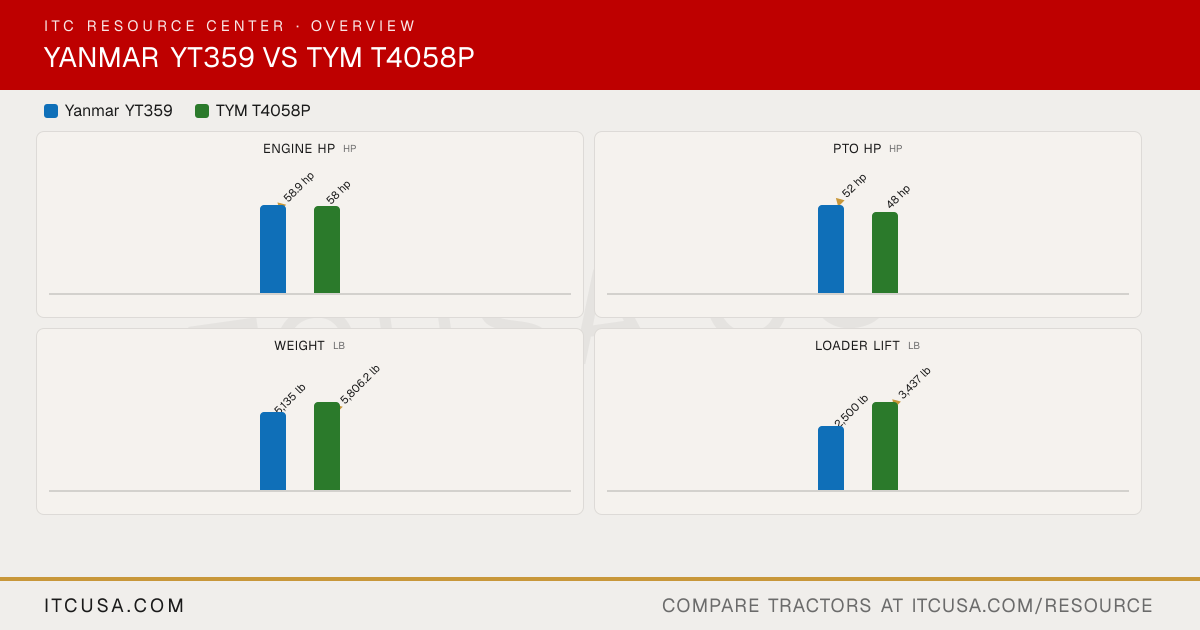

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
YanmarYT359
TYMT4058P
Engine Manufacturer
YANMAR
TYM
Engine Model
4TNV98C
T2300T1-UTR_4
Engine Type
4-cylinder, naturally aspirated diesel
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
202.5 in³
139.5 in³
Rated Engine Speed
2500 rpm
2600 rpm
Engine Power (Gross)
58.9 hp
58 hp
PTO Power
52 hp
48 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid cooled
Not Published
Air Cleaner
Dual stage cyclonic (resin 6.5")
Dry element
Fuel System
Common rail direct injection
IDI (indirect injection)
Alternator
55 A, 12 V
70 A, 12 V
Pump Type
Not Published
Single gear pump
Implement Flow
9.4 gpm
11.4 gpm
Steering Flow
5.3 gpm
5.13 gpm
Total Hydraulic Flow
14.7 gpm (9.4 + 5.3, computed)
16.5 gpm
Overall Hydraulic Pump Flow
14.7 gpm (9.4 + 5.3, computed)
16.5 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
Loader: 4; Rear: 4
No. of Optional Remote Valves
1
Not Published
Fuel Tank Capacity
12.7 gal
15.32 gal
Coolant Capacity
7.8 qt
6.2 qt
Crankcase Capacity
8.0 qt
4.7 qt
Transmission / Hydraulic System Capacity
7.7 gal
11.6 gal
Front Axle Fluid Capacity
2.4 gal
6.8 qt
PTO Type
Independent (electro-hydraulic)
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category II
Hitch Lift Capacity
3,307 lb
4,409 lb
Hitch Lift Capacity (at 24”)
2,756 lb
3,748 lb
Lift Control Type
Position control
Position and draft control (electronic)
Transmission Type
I-HMT (Integrated Hydro Mechanical Transmission)
Power shuttle
No. of Speeds
3 ranges (variable speed)
F12 x R12
Max Travel Speed (Forward)
18 mph (with R1 tires)
24.04 mph
Max Travel Speed (Reverse)
18 mph (with R1 tires)
19.39 mph
Clutch
Clutch-less shifting (i-HMT)
Wet, multi-disc
Differential Lock & Limited Slip Options
Rear differential lock (foot pedal engagement)
Standard differential lock
Frame Type
Not Published
Not Published
Steering
Fully hydraulic power steering
Hydrostatic
Brakes
Mechanical wet disc
Wet, multi-disc
Seat Suspension & Adjustability
Not Published
Suspension seat
Front Axle Type
2WD/4WD selectable engagement
4WD (selectable 2WD/4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
132.1 in
141.5 in
Overall Width
70.6 in (with R4 tires)
68.9 in
Wheelbase
77.4 in
78.7 in
Ground Clearance
12.8 in (with R4 tires)
18.1 in
Min. Turn Radius without Brakes
Not Published
L: 139.7 in; R: 141.9 in
Height to Top of ROPS
95.7 in (with R4 tires)
104.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
4,039 lb (with ROPS, R4 tires, full fluid)
4,506.2 lb
Weight with ROPS and Loader
5,135 lb
5,806.2 lb
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural, R3 Turf (golf), R4 Industrial
R1 Agricultural - Front
8-16
9.5-20
R1 Agricultural - Rear
14.9-24
14.9-28
R3 Turf - Front
27x10.5-15
29x12.5-15
R3 Turf - Rear
44x18-20
44x18.00-20
R4 Industrial - Front
10-16.5
10.5/80-18
R4 Industrial - Rear
17.5L-24
16.9-24
Quick Attach Loader System
YL610: Skid-steer-style loader quick attachment system
L4058P: Quick attach mechanism
Loader Model
YL610
L4058P
Loader Lift Height
YL610: 113 in (to bucket pivot pin)
L4058P: 117.5 in
Loader Lift Capacity (Full Height)
YL610: 2,500 lb at pivot pins
L4058P: 3,437 lb
Loader Breakout Force
YL610: 3,969 lb at pivot pins
L4058P: 4,742 lb
Warranty Length & Coverage
Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
