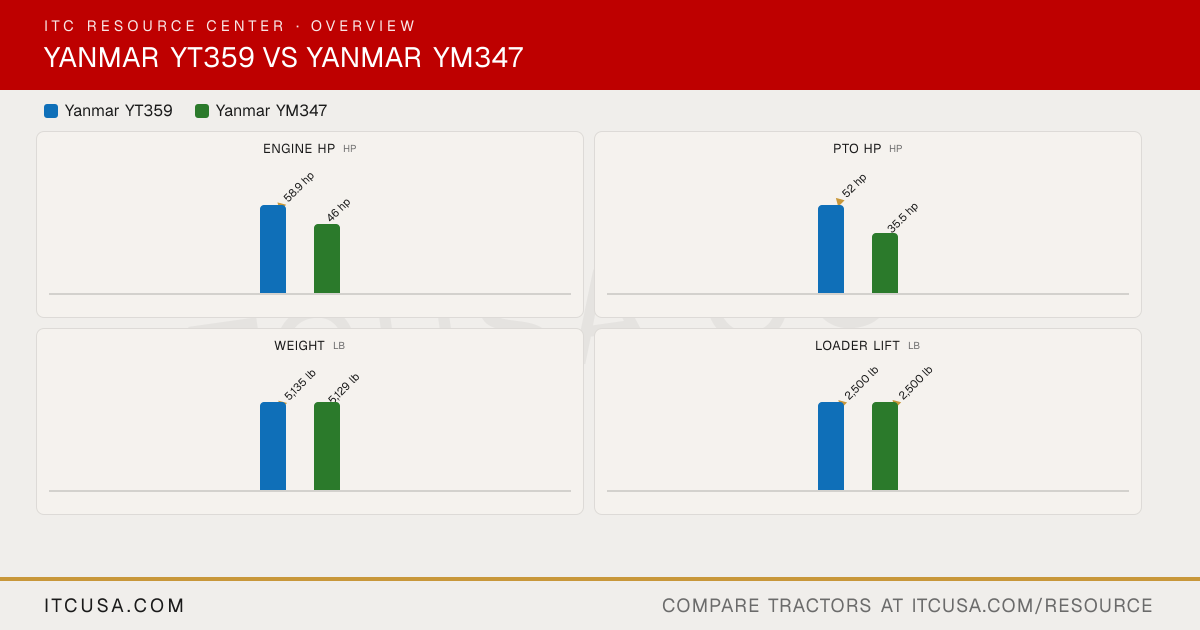

▶ EngineEngine Manufacturer YANMAR Yanmar Engine Model 4TNV98C 4TNV88C-XKITL Engine Type 4-cylinder, naturally aspirated diesel 4-cylinder, liquid-cooled diesel No. of Cylinders 4 4 Displacement 202.5 in³ 133.6 in³ Rated Engine Speed 2500 rpm Not Published Engine Power (Gross) 58.9 hp 46 hp PTO Power 52 hp 35.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Liquid cooled Air Cleaner Dual stage cyclonic (resin 6.5") Dual air cleaner element Fuel System Common rail direct injection Not Published Alternator 55 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 9.4 gpm 9.3 gpm Steering Flow 5.3 gpm 5.3 gpm Total Hydraulic Flow 14.7 gpm (9.4 + 5.3, computed) 14.6 gpm Overall Hydraulic Pump Flow 14.7 gpm (9.4 + 5.3, computed) 14.6 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves 1 2 ▶ Fluid CapacityFuel Tank Capacity 12.7 gal 13.2 gal Coolant Capacity 7.8 qt 6.3 qt Crankcase Capacity 8.0 qt 5.1 qt Transmission / Hydraulic System Capacity 7.7 gal 9.0 gal Front Axle Fluid Capacity 2.4 gal 2.4 gal ▶ PTO & HitchPTO Type Independent (electro-hydraulic) Independent PTO Rear 540 rpm 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I & II Hitch Lift Capacity 3,307 lb 3,190 lb Hitch Lift Capacity (at 24”) 2,756 lb 2,750 lb Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type I-HMT (Integrated Hydro Mechanical Transmission) Synchronized shuttle shift No. of Speeds 3 ranges (variable speed) F8-R8 Max Travel Speed (Forward) 18 mph (with R1 tires) 17.7 mph Max Travel Speed (Reverse) 18 mph (with R1 tires) Not Published Clutch Clutch-less shifting (i-HMT) Dry Single Differential Lock & Limited Slip Options Rear differential lock (foot pedal engagement) Differential lock (foot pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Fully hydraulic power steering Power steering Brakes Mechanical wet disc Not Published Seat Suspension & Adjustability Not Published Suspension seat Front Axle Type 2WD/4WD selectable engagement Selectable 2WD/4WD engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 132.1 in 133.6 in (with 3PH and R4 tires) Overall Width 70.6 in (with R4 tires) 70.9 in (with R4 tires) Wheelbase 77.4 in 74.8 in Ground Clearance 12.8 in (with R4 tires) 15.5 in Min. Turn Radius without Brakes Not Published 138 in Height to Top of ROPS 95.7 in (with R4 tires) 98.0 in (with R4 tires) Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 4,039 lb (with ROPS, R4 tires, full fluid) 3,916 lb Weight with ROPS and Loader 5,135 lb 5,129 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural - Front 8-16 8.0 - 16.0 R1 Agricultural - Rear 14.9-24 14.9 - 24.0 R3 Turf - Front 27x10.5-15 27.0 - 10.5 R3 Turf - Rear 44x18-20 44 x 18 - 20.0 R4 Industrial - Front 10-16.5 10.0 - 16.5 R4 Industrial - Rear 17.5L-24 17.5L - 24.0 ▶ Loader & AttachmentsQuick Attach Loader System YL610: Skid-steer-style loader quick attachment system YL605: Skid steer quick attach Loader Model YL610 YL605 Loader Lift Height YL610: 113 in (to bucket pivot pin) YL605: 113.0 in Loader Lift Capacity (Full Height) YL610: 2,500 lb at pivot pins YL605: 2,500 lb Loader Breakout Force YL610: 3,969 lb at pivot pins YL605: 3,047 lb (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty 10-year limited powertrain warranty or 3,000 hours (whichever comes first)
