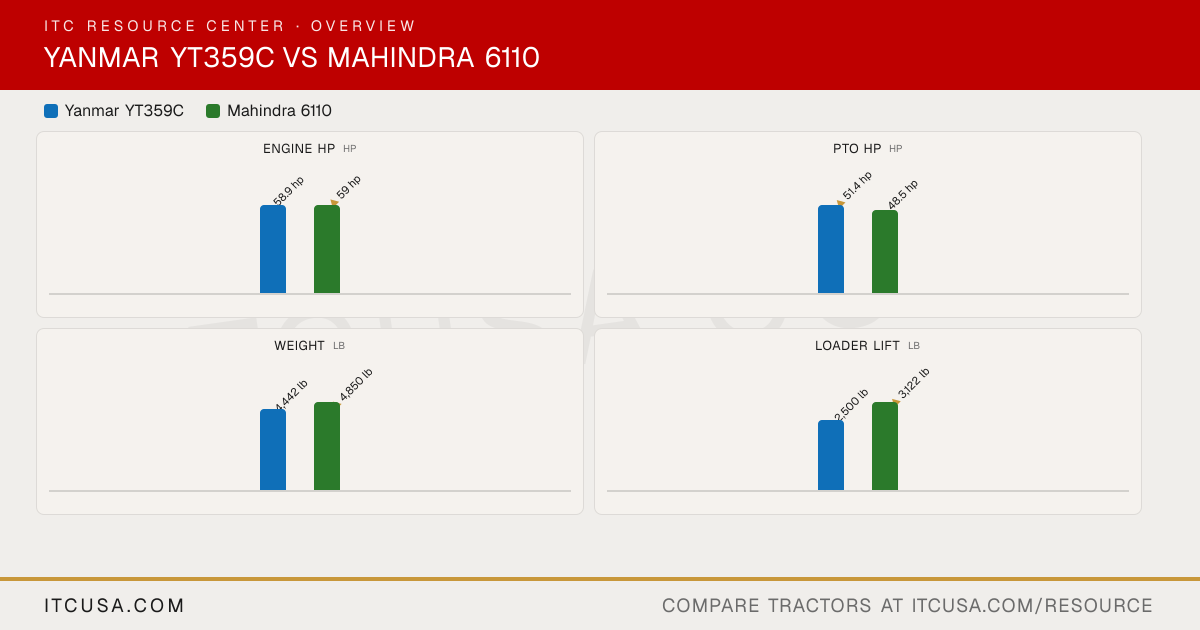

▶ EngineEngine Manufacturer YANMAR Daedong Engine Model 4TNV98C Not Published Engine Type 4-cylinder, naturally aspirated diesel Turbo-charged, indirect injection No. of Cylinders 4 4 Displacement 202.5 in³ 148.6 in³ Rated Engine Speed 2500 rpm 2600 rpm Engine Power (Gross) 58.9 hp 59 hp PTO Power 51.4 hp 48.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Not Published Air Cleaner Dual stage cyclonic (resin 6.5") Not Published Fuel System Common rail direct injection Not Published Alternator 55 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 9.4 gpm 11 gpm Steering Flow 5.3 gpm 5.4 gpm Total Hydraulic Flow 14.7 gpm (9.4 + 5.3, computed) Not Published Overall Hydraulic Pump Flow 14.7 gpm (9.4 + 5.3, computed) Not Published Hydraulic System Type Open center Open Center with position and draft control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves 1 3 ▶ Fluid CapacityFuel Tank Capacity 12.7 gal 18.5 gal Coolant Capacity 7.8 qt Not Published Crankcase Capacity 8.0 qt Not Published Transmission / Hydraulic System Capacity 7.7 gal Not Published Front Axle Fluid Capacity 2.4 gal Not Published ▶ PTO & HitchPTO Type Continuous live independent (electric hydro) Independent PTO Rear 540 rpm 540 rpm @ 2600 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category 2, with telescopic check chains Hitch Lift Capacity 3,307 lb 3,527 lb Hitch Lift Capacity (at 24”) 2,756 lb Not Published Lift Control Type Position control Position and draft control ▶ Transmission & DrivetrainTransmission Type I-HMT (Integrated Hydro Mechanical Transmission) Sync, shuttle w/ part synchromesh No. of Speeds 3 ranges (variable speed) 12F / 12R Max Travel Speed (Forward) 18 mph (with R1 tires) 20.0 mph Max Travel Speed (Reverse) 18 mph (with R1 tires) 20.5 mph Clutch Clutch-less shifting (i-HMT) Single plate, dry Differential Lock & Limited Slip Options Rear differential lock (foot pedal engagement) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Fully hydraulic power steering Hydrostatic/Tiltable Brakes Mechanical wet disc Wet Disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type 2WD/4WD selectable engagement Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 70.6 in (with R4 tires) 71.5 in Wheelbase 77.4 in Not Published Ground Clearance 12.8 in (with R4 tires) Not Published Min. Turn Radius without Brakes Not Published 12.5 ft Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 89.5 in (with R4 tires) 99.2 in Overall Length 132.1 in (with 3-point hitch and R4 tires) 141.3 in ▶ WeightTractor Weight (Base) 4,442 lb (cab, R4 tires, full fluid) 4,850 lb (operating weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader 5,538 lb (4,442 + 1,096, computed) Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial Not Published R1 Agricultural - Front 8-16 9.5x20 R1 Agricultural - Rear 14.9-24 14.9x28 R3 Turf - Front 27x10.5-15 LSW305-521 R3 Turf - Rear 44x18-20 LSW570-648 R4 Industrial - Front 10-16.5 10.5/80x18 R4 Industrial - Rear 17.5L-24 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System YL610: Skid-steer-style loader quick attachment system Not Published Loader Model YL610 ML161 Loader Lift Height YL610: 113 in (to bucket pivot pin) ML161: 115.4 in Loader Lift Capacity (Full Height) YL610: 2,500 lb at pivot pins ML161: 3,122 lb (at pivot pin) Loader Breakout Force YL610: 3,969 lb at pivot pins ML161: 5,225 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Tractor (private individual usage) 24 months or 2,000 hours; power train 10 years or 3,000 hours; attachments 1-year limited warranty Not Published
