Bad Boy Tractors 1025 vs Kioti CS2520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 1025 leads 7 categories to 1 (1 tied). Machine pages: Bad Boy Tractors 1025 and Kioti CS2520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1025	Kioti CS2520
Engine HP (hp)	▲ 24.6 hp	24.5 hp
PTO HP (hp)	▲ 18.8 hp	18.5 hp
Weight (lb)	▲ 1,610 lb	1,554 lb
Loader Lift (lb)	992 lb	▲ 1,062.3 lb
3-Pt Lift (24 in) (lb)	▲ 1,101 lb	700 lb
Lift Height (in)	▲ 75.5 in	73.7 in
Breakout Force (lbf)	▲ 1,531 lbf	1,329 lbf
Hydraulic Flow (gpm)	7 gpm	7 gpm
Travel Speed (mph)	▲ 10.5 mph	9.6 mph

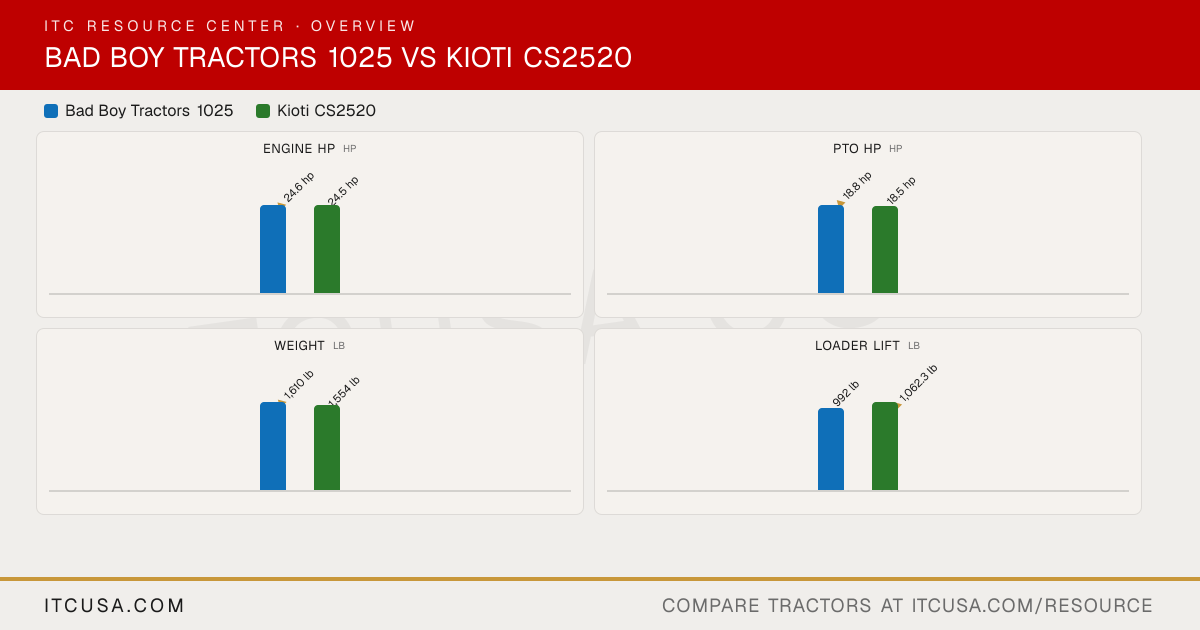

The headline numbers at a glance.

Bad Boy Tractors 1025Kioti CS2520

Engine HPhp

▲24.6 hp

24.5 hp

PTO HPhp

▲18.8 hp

18.5 hp

Weightlb

▲1,610 lb

1,554 lb

Loader Liftlb

992 lb

▲1,062.3 lb

3-Pt Lift (24 in)lb

▲1,101 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	KiotiCS2520


Engine Manufacturer	Yanmar	KIOTI (Daedong)
Engine Model	3TNV80F	3C100LFH-U2
Engine Type	Water-cooled, 4-cycle diesel	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)
No. of Cylinders	3	3
Displacement	77.3 in³	61.5 in³
Rated Engine Speed	3000 rpm	3200 rpm
Engine Power (Gross)	24.6 hp	24.5 hp
PTO Power	18.8 hp	18.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled, forced circulation	Not Published
Air Cleaner	Single element, dry	Not Published
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	Not Published

Pump Type	Gear pump	Gear
Implement Flow	4.2 gpm	7.0 gpm
Steering Flow	2.8 gpm	Not Published
Total Hydraulic Flow	7.0 gpm	7.0 gpm
Overall Hydraulic Pump Flow	6.95 gpm	7.0 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	5.8 gal	6.7 gal
Coolant Capacity	0.95 gal	0.87 gal
Crankcase Capacity	0.71 gal	1.0 gal
Transmission / Hydraulic System Capacity	3.83 gal	2.75 gal
Front Axle Fluid Capacity	0.85 gal	0.53 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,000 rpm	Available (2,200 rpm)
Category, 3-Point Hitch	Category 1 (N)	Category I
Hitch Lift Capacity	1,323 lb	1,580 lb
Hitch Lift Capacity (at 24”)	1,101 lb	700 lb
Lift Control Type	Position control	Position

Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	Hydrostatic (HST)
No. of Speeds	2 range (H/L)	Infinite, 2 range (High/Low)
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	9.6 mph
Max Travel Speed (Reverse)	Not Published	6.6 mph
Clutch	None (HST)	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	Rear differential lock (standard)

Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc, foot operated	Wet multi disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	104 in	99.3 in
Overall Width	45.8 in	45.9 in
Wheelbase	57.5 in	55.1 in
Ground Clearance	9.4 in	6.4 in
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	91.3 in	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,610 lb	1,554 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	6-12	18x8.5-10
R1 Agricultural - Rear	9.5-16	26x12.00-12
R3 Turf - Front	20x8-10	18x8.5-10
R3 Turf - Rear	29x12.5-15	26x12.00-12
R4 Industrial - Front	23x8.5-12	18x8.5-10
R4 Industrial - Rear	12-16.5	26x12.00-12

Quick Attach Loader System	Quick attach front loader	Quick attach (QA) bucket, 48 in
Loader Model	BBL105	SL2420
Loader Lift Height	75.5 in	SL2420: 73.7 in
Loader Lift Capacity (Full Height)	992 lb	SL2420: 1,062.3 lb
Loader Breakout Force	1,531 lbf	SL2420: 1,329.0 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor

Find a Bad Boy dealer near you Find a KIOTI dealer near you

Bad Boy Tractors 1025 vs Kioti CS2520: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the Kioti CS2520?: The Bad Boy Tractors 1025 leads on engine hp at 24.6 hp hp, compared to 24.5 hp hp for the Kioti CS2520.
Which has more PTO horsepower, the Bad Boy Tractors 1025 or the Kioti CS2520?: The Bad Boy Tractors 1025 leads on pto hp at 18.8 hp hp, compared to 18.5 hp hp for the Kioti CS2520.
Which is heavier, the Bad Boy Tractors 1025 or the Kioti CS2520?: The Bad Boy Tractors 1025 leads on weight at 1,610 lb lb, compared to 1,554 lb lb for the Kioti CS2520.
Which has more loader lift capacity, the Bad Boy Tractors 1025 or the Kioti CS2520?: The Kioti CS2520 leads on loader lift at 1,062.3 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1025.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Kioti CS2520?: The Bad Boy Tractors 1025 leads on 3-pt lift (24 in) at 1,101 lb lb, compared to 700 lb lb for the Kioti CS2520.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1025	Kioti CS2520
Engine HP (hp)	▲ 24.6 hp	24.5 hp
PTO HP (hp)	▲ 18.8 hp	18.5 hp
Weight (lb)	▲ 1,610 lb	1,554 lb
Loader Lift (lb)	992 lb	▲ 1,062.3 lb
3-Pt Lift (24 in) (lb)	▲ 1,101 lb	700 lb
Lift Height (in)	▲ 75.5 in	73.7 in
Breakout Force (lbf)	▲ 1,531 lbf	1,329 lbf
Hydraulic Flow (gpm)	7 gpm	7 gpm
Travel Speed (mph)	▲ 10.5 mph	9.6 mph

The headline numbers at a glance.

Bad Boy Tractors 1025Kioti CS2520

Engine HPhp

▲24.6 hp

24.5 hp

PTO HPhp

▲18.8 hp

18.5 hp

Weightlb

▲1,610 lb

1,554 lb

Loader Liftlb

992 lb

▲1,062.3 lb

3-Pt Lift (24 in)lb

▲1,101 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	KiotiCS2520


Engine Manufacturer	Yanmar	KIOTI (Daedong)
Engine Model	3TNV80F	3C100LFH-U2
Engine Type	Water-cooled, 4-cycle diesel	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)
No. of Cylinders	3	3
Displacement	77.3 in³	61.5 in³
Rated Engine Speed	3000 rpm	3200 rpm
Engine Power (Gross)	24.6 hp	24.5 hp
PTO Power	18.8 hp	18.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled, forced circulation	Not Published
Air Cleaner	Single element, dry	Not Published
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	Not Published

Pump Type	Gear pump	Gear
Implement Flow	4.2 gpm	7.0 gpm
Steering Flow	2.8 gpm	Not Published
Total Hydraulic Flow	7.0 gpm	7.0 gpm
Overall Hydraulic Pump Flow	6.95 gpm	7.0 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	5.8 gal	6.7 gal
Coolant Capacity	0.95 gal	0.87 gal
Crankcase Capacity	0.71 gal	1.0 gal
Transmission / Hydraulic System Capacity	3.83 gal	2.75 gal
Front Axle Fluid Capacity	0.85 gal	0.53 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,000 rpm	Available (2,200 rpm)
Category, 3-Point Hitch	Category 1 (N)	Category I
Hitch Lift Capacity	1,323 lb	1,580 lb
Hitch Lift Capacity (at 24”)	1,101 lb	700 lb
Lift Control Type	Position control	Position

Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	Hydrostatic (HST)
No. of Speeds	2 range (H/L)	Infinite, 2 range (High/Low)
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	9.6 mph
Max Travel Speed (Reverse)	Not Published	6.6 mph
Clutch	None (HST)	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	Rear differential lock (standard)

Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc, foot operated	Wet multi disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	104 in	99.3 in
Overall Width	45.8 in	45.9 in
Wheelbase	57.5 in	55.1 in
Ground Clearance	9.4 in	6.4 in
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	91.3 in	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,610 lb	1,554 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	6-12	18x8.5-10
R1 Agricultural - Rear	9.5-16	26x12.00-12
R3 Turf - Front	20x8-10	18x8.5-10
R3 Turf - Rear	29x12.5-15	26x12.00-12
R4 Industrial - Front	23x8.5-12	18x8.5-10
R4 Industrial - Rear	12-16.5	26x12.00-12

Quick Attach Loader System	Quick attach front loader	Quick attach (QA) bucket, 48 in
Loader Model	BBL105	SL2420
Loader Lift Height	75.5 in	SL2420: 73.7 in
Loader Lift Capacity (Full Height)	992 lb	SL2420: 1,062.3 lb
Loader Breakout Force	1,531 lbf	SL2420: 1,329.0 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor

Find a Bad Boy dealer near you Find a KIOTI dealer near you

Bad Boy Tractors 1025 vs Kioti CS2520: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the Kioti CS2520?

The Bad Boy Tractors 1025 leads on engine hp at 24.6 hp hp, compared to 24.5 hp hp for the Kioti CS2520.

Which has more PTO horsepower, the Bad Boy Tractors 1025 or the Kioti CS2520?

The Bad Boy Tractors 1025 leads on pto hp at 18.8 hp hp, compared to 18.5 hp hp for the Kioti CS2520.

Which is heavier, the Bad Boy Tractors 1025 or the Kioti CS2520?

The Bad Boy Tractors 1025 leads on weight at 1,610 lb lb, compared to 1,554 lb lb for the Kioti CS2520.

Which has more loader lift capacity, the Bad Boy Tractors 1025 or the Kioti CS2520?

The Kioti CS2520 leads on loader lift at 1,062.3 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1025.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Kioti CS2520?

The Bad Boy Tractors 1025 leads on 3-pt lift (24 in) at 1,101 lb lb, compared to 700 lb lb for the Kioti CS2520.
