Which has more horsepower, the Bad Boy Tractors 1025 or the Kubota LX3520?

The Bad Boy Tractors 1025 leads on engine hp at 23.9 hp hp, compared to 23.3 hp hp for the Kubota LX3520.

Which is heavier, the Bad Boy Tractors 1025 or the Kubota LX3520?

The Kubota LX3520 leads on weight at 2,624 lb lb, compared to 1,656 lb lb for the Bad Boy Tractors 1025.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Kubota LX3520?

The Kubota LX3520 leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,101 lb lb for the Bad Boy Tractors 1025.

Bad Boy Tractors 1025 vs Kubota LX3520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Kubota LX3520 leads 2 categories to 1. Machine pages: Bad Boy Tractors 1025 and Kubota LX3520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1025	Kubota LX3520
Engine HP (hp)	▲ 23.9 hp	23.3 hp
PTO HP (hp)	18.8 hp	—
Weight (lb)	1,656 lb	▲ 2,624 lb
Loader Lift (lb)	992 lb	—
3-Pt Lift (24 in) (lb)	1,101 lb	▲ 1,962 lb
Lift Height (in)	75.5 in	—
Breakout Force (lbf)	1,531 lbf	—
Hydraulic Flow (gpm)	7 gpm	—
Travel Speed (mph)	10.5 mph	—

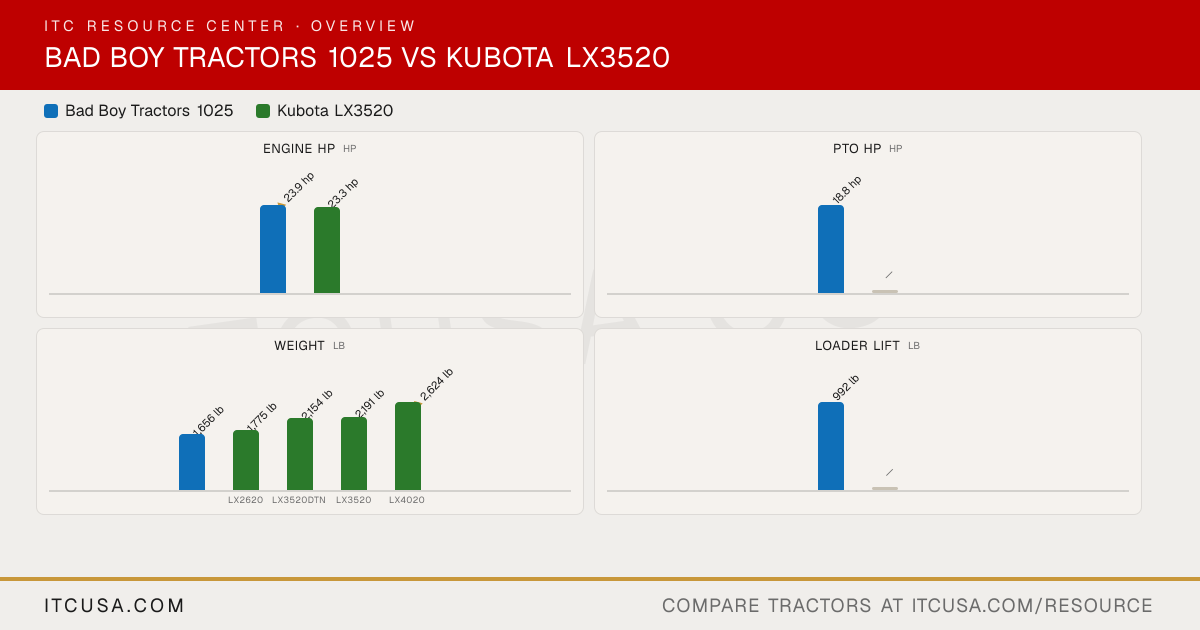

The headline numbers at a glance.

Bad Boy Tractors 1025Kubota LX3520

Engine HPhp

▲23.9 hp

23.3 hp

PTO HPhp

18.8 hp

—

Weightlb

1,656 lb

1,775 lb

2,154 lb

2,191 lb

▲2,624 lb

LX2620LX3520DTNLX3520LX4020

Loader Liftlb

992 lb

—

3-Pt Lift (24 in)lb

1,101 lb

1,819 lb

▲1,962 lb

LX2620LX3520/LX4020

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	KubotaLX3520


PTO Power	18.8 hp	28.7 (21.4) HP (kW)
Alternator	40 A, 12 V	—
Air Cleaner	Dry Element	LX2620: 4.5 inch paper filter (with dual filter); LX3520/LX4020: 6 inch paper filter (with dual element)
Engine Type	Water cooled 4 cycle, 3 cylinder diesel	Indirect injection, vertical, water-cooled, 4-cycle diesel and Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
Fuel System	Indirect Injection	Common Rail (CRS) diesel
Displacement	77.3 in³	77 in³
No. of Cylinders	3	4
Rated Engine Speed	3000 rpm	2500 rpm
Cooling System Type	Water cooled, Forced circulation	Pressurized radiator with radial air flow fan
Engine Manufacturer	YANMAR	Kubota
Engine Power (Gross)	23.9 hp	23.3 hp
Engine Emissions Constraints	Not Published	—

Tractor Weight (Base)	1,656 lb	LX2620: 1,775 lbs; LX3520DTN: 2,154 lbs; LX3520: 2,191 lbs; LX4020: 2,624 lbs
Weight with ROPS and Loader	1,610 lb	—
Weight with Cab and Loader	Not Applicable	—

Warranty Length & Coverage	Engine & Powertrain: 84 months (7 years) or 2,000 hours	Full warranty: 2 years / 2,000 hours \| Powertrain warranty: 6 years / 2,000 hours

Pump Type	Gear pump	Dual pump
Steering Flow	2.8 gpm	—
Implement Flow	4.2 gpm	—
Total Hydraulic Flow	7.0 gpm	9.1 (34.5) gpm (l/min.)
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	341.7 lbf/cm2	Open center system
Rear Remote Hydraulic Flow	Not Applicable	—
Overall Hydraulic Pump Flow	6.95 gpm	9.1 (34.5) gpm (l/min.)
No. of Optional Remote Valves	Not Published	—
No. of Standard Remote Valves	Not Applicable	—

PTO Rear	540 rpm @ 2,893 engine rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control valve
Hitch Lift Capacity	1,323 lb	2348 (1065) lbs. (kg)
Mid-PTO Availability	Yes (2,000 rpm @ 2,875 engine rpm)	2460 RPM
Category, 3-Point Hitch	Category I (N)	Category I
Hitch Lift Capacity (at 24”)	1,101 lb @ 24 in behind lift point	LX2620: 1,819 lbs; LX3520/LX4020: 1,962 lbs

R3 Turf - Rear	29X12.5-15	16.6-16
R3 Turf - Front	20X8-10	24x8.5-14
Tire Size & Options	R1 (Ag) / R3 (Turf) / R4 (Industrial)	Front R1: 7-12; R4: 23×8.50-12; R4 large: 25×8.50-14; R14: 23×8.50-12; R14 large: 25×8.50-14; TURF: 24×8.50-14; Rear R1: 12.4-16; R4: 14-17.5; R14: 14-17.5; TURF: 13.6-16; R4 large: 15-19.5; R14 large: 15-19.5
R4 Industrial - Rear	27X12-16.5	14-17.5 or 15-19.5
R4 Industrial - Front	23X8.5-12	23x8.5-12 or 25x8.5-14
R1 Agricultural - Rear	9.5-16	320/85D16
R1 Agricultural - Front	6-12	180/85D12

Coolant Capacity	3.8 ℓ (1 US gal)	LX2620: 4.5 qts (4.3 ℓ); LX3520/LX4020: 5.7 qts (5.4 ℓ)
Crankcase Capacity	2.7 ℓ (0.71 US gal)	LX2620: 4.2 qts (4.0 ℓ); LX3520/LX4020: 5.0 qts (4.7 ℓ)
Fuel Tank Capacity	22 ℓ (5.81 US gal)	LX2620: 7.1 gal (27 ℓ); LX3520/LX4020: 8.5 gal (32 ℓ)
Front Axle Fluid Capacity	0.85 gal	—
Transmission / Hydraulic System Capacity	3.83 gal	5.5 (21.0) gal (ℓ)

Loader Lift Height	75.5 in (pivot pin)	87.6 (2226) in. (mm)
Loader Breakout Force	1,531 lb (pivot pin, ground level)	—
Quick Attach Loader System	SSQA	2-Lever Quick Coupler (Standard); Swift-Tach (Optional)
Loader Lift Capacity (Full Height)	992 lb (pivot pin)	1100 (499) lbs. (kg)

Clutch	No	N/A
No. of Speeds	2 range (Low/High)	HST (3 range)
Transmission Type	Hydraulic + Mechanical H/L with Sliding-mesh MFWD(4WD)	HST (3 ranges)
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	17.0 (0-27.4) mph (km/h)
Max Travel Speed (Reverse)	Not Published	13.0 (0-20.8) mph (km/h)
Differential Lock & Limited Slip Options	Differential lock	Standard

Brakes	Wet disc, foot-operated	Multi-plate wet disk
Steering	Power steering (hydrostatic)	Hydrostatic power steering
Frame Type	Sub-compact tractor; selectable 4WD	—
Front Axle Type	Not Published	—
Drawbar Capacity	Not Published	—
Front Axle Rating	Not Published	—
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat (high back, designed to absorb shock)

Wheelbase	66.1 in	66.7 (1695) in. (mm)
Overall Width	50.8 in	53.7 (1365) in. (mm)
Overall Length	92.5 in	LX2620: 101.8 in.; LX3520DTN: 98.2 in.; LX3520/LX4020: 101.6-103.9 in. (2580-103.9 in)
Ground Clearance	8.2 in	12.8 (325) in. (mm)
Height to Top of ROPS	89.7 in	LX3520 Narrow: 56.7 in. (folded)
Height to Top of Cab Model	Not Applicable	—
Height to Top of ROPS (folded)	Not Published	56.7 (1440) in. (mm)
Min. Turn Radius without Brakes	Not Published	7.5 (2.3) feet (m) Front drive disengaged
Overall Length with 3-Point Hitch	104.0 in	101.8 (2586) in. (mm)
