Bad Boy Tractors 1025 vs Mahindra Max 28XL

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra Max 28XL leads 7 categories to 1. Machine pages: Bad Boy Tractors 1025 and Mahindra Max 28XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1025	Mahindra Max 28XL
Engine HP (hp)	24.6 hp	▲ 28 hp
PTO HP (hp)	18.8 hp	▲ 23.5 hp
Weight (lb)	1,610 lb	▲ 1,863 lb
Loader Lift (lb)	992 lb	▲ 1,402 lb
3-Pt Lift (24 in) (lb)	1,101 lb	▲ 2,205 lb
Lift Height (in)	75.5 in	▲ 82.7 in
Breakout Force (lbf)	1,531 lbf	▲ 2,690 lbf
Hydraulic Flow (gpm)	▲ 7 gpm	4.6 gpm
Travel Speed (mph)	10.5 mph	n/a

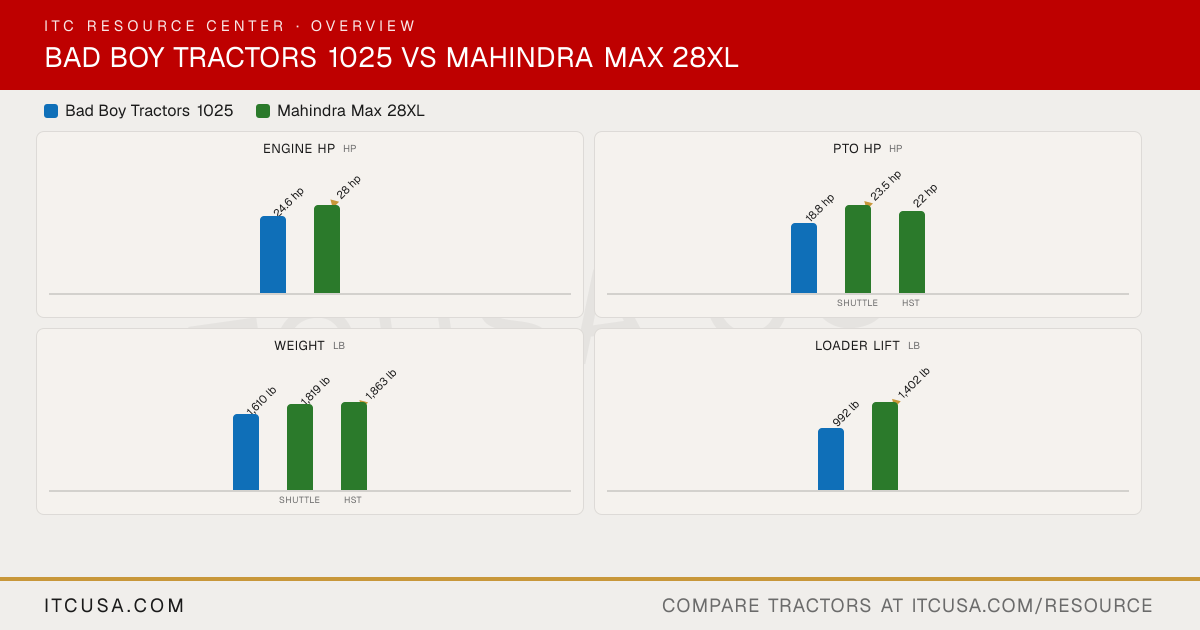

The headline numbers at a glance.

Bad Boy Tractors 1025Mahindra Max 28XL

Engine HPhp

24.6 hp

▲28 hp

PTO HPhp

18.8 hp

▲23.5 hp

22 hp

ShuttleHST

Weightlb

1,610 lb

1,819 lb

▲1,863 lb

ShuttleHST

Loader Liftlb

992 lb

▲1,402 lb

3-Pt Lift (24 in)lb

1,101 lb

▲2,205 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	MahindraMax 28XL


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV80F	S3L2
Engine Type	Water-cooled, 4-cycle diesel	Four stroke, indirect injection water-cooled, diesel
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2600 rpm
Engine Power (Gross)	24.6 hp	28 hp
PTO Power	18.8 hp	Shuttle: 23.5 hp; HST: 22 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled, forced circulation	Not Published
Air Cleaner	Single element, dry	Not Published
Fuel System	Indirect injection	Direct injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Gear pump	Not Published
Implement Flow	4.2 gpm	4.6 gpm
Steering Flow	2.8 gpm	2.7 gpm
Total Hydraulic Flow	7.0 gpm	Not Published
Overall Hydraulic Pump Flow	6.95 gpm	Not Published
Hydraulic System Type	Open center	Open center, full live hydraulic with position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	1 spool optional

Fuel Tank Capacity	5.8 gal	6.1 gal
Coolant Capacity	0.95 gal	Not Published
Crankcase Capacity	0.71 gal	Not Published
Transmission / Hydraulic System Capacity	3.83 gal	Not Published
Front Axle Fluid Capacity	0.85 gal	Not Published

PTO Type	Independent	Trans
PTO Rear	540 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Standard, 2,000 rpm	Optional, 2000 rpm @ 2526 rpm
Category, 3-Point Hitch	Category I (N)	Category 1, with check chains
Hitch Lift Capacity	1,323 lb	2205 lb
Hitch Lift Capacity (at 24”)	1,101 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	Constant mesh on gear shift and synchro mesh on F/R shuttle
No. of Speeds	2 range (H/L)	Infinite
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Single plate, dry
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	Not Published

Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power
Brakes	Wet disc, foot operated	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	104 in	109.3 in
Overall Width	45.8 in	54.3 in
Wheelbase	57.5 in	Not Published
Ground Clearance	9.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	6.6 ft
Height to Top of ROPS	91.3 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,610 lb	Shuttle: 1819 lb; HST: 1863 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	6-12	7x12
R1 Agricultural - Rear	9.5-16	9.5x16
R3 Turf - Front	20x8-10	23x8.5-12
R3 Turf - Rear	29x12.5-15	33x12.5-16.5
R4 Industrial - Front	23x8.5-12	23x8.5-12
R4 Industrial - Rear	12-16.5	12x16.5

Quick Attach Loader System	Quick attach front loader	Skid-steer style loader couplers
Loader Model	BBL105	ML205 (named by both Mahindra spec sheets; a US listing calls the same loader the ML202)
Loader Lift Height	75.5 in	ML205: 82.7 in
Loader Lift Capacity (Full Height)	992 lb	ML205: 1402 lb
Loader Breakout Force	1,531 lbf	ML205: 2690 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published

Find a Bad Boy dealer near you Find a Mahindra dealer near you

Bad Boy Tractors 1025 vs Mahindra Max 28XL: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?: The Mahindra Max 28XL leads on engine hp at 28 hp hp, compared to 24.6 hp hp for the Bad Boy Tractors 1025.
Which has more PTO horsepower, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?: The Mahindra Max 28XL leads on pto hp at 23.5 hp hp, compared to 18.8 hp hp for the Bad Boy Tractors 1025.
Which is heavier, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?: The Mahindra Max 28XL leads on weight at 1,863 lb lb, compared to 1,610 lb lb for the Bad Boy Tractors 1025.
Which has more loader lift capacity, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?: The Mahindra Max 28XL leads on loader lift at 1,402 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1025.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?: The Mahindra Max 28XL leads on 3-pt lift (24 in) at 2,205 lb lb, compared to 1,101 lb lb for the Bad Boy Tractors 1025.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1025	Mahindra Max 28XL
Engine HP (hp)	24.6 hp	▲ 28 hp
PTO HP (hp)	18.8 hp	▲ 23.5 hp
Weight (lb)	1,610 lb	▲ 1,863 lb
Loader Lift (lb)	992 lb	▲ 1,402 lb
3-Pt Lift (24 in) (lb)	1,101 lb	▲ 2,205 lb
Lift Height (in)	75.5 in	▲ 82.7 in
Breakout Force (lbf)	1,531 lbf	▲ 2,690 lbf
Hydraulic Flow (gpm)	▲ 7 gpm	4.6 gpm
Travel Speed (mph)	10.5 mph	n/a

The headline numbers at a glance.

Bad Boy Tractors 1025Mahindra Max 28XL

Engine HPhp

24.6 hp

▲28 hp

PTO HPhp

18.8 hp

▲23.5 hp

22 hp

ShuttleHST

Weightlb

1,610 lb

1,819 lb

▲1,863 lb

ShuttleHST

Loader Liftlb

992 lb

▲1,402 lb

3-Pt Lift (24 in)lb

1,101 lb

▲2,205 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	MahindraMax 28XL


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV80F	S3L2
Engine Type	Water-cooled, 4-cycle diesel	Four stroke, indirect injection water-cooled, diesel
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2600 rpm
Engine Power (Gross)	24.6 hp	28 hp
PTO Power	18.8 hp	Shuttle: 23.5 hp; HST: 22 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled, forced circulation	Not Published
Air Cleaner	Single element, dry	Not Published
Fuel System	Indirect injection	Direct injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Gear pump	Not Published
Implement Flow	4.2 gpm	4.6 gpm
Steering Flow	2.8 gpm	2.7 gpm
Total Hydraulic Flow	7.0 gpm	Not Published
Overall Hydraulic Pump Flow	6.95 gpm	Not Published
Hydraulic System Type	Open center	Open center, full live hydraulic with position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	1 spool optional

Fuel Tank Capacity	5.8 gal	6.1 gal
Coolant Capacity	0.95 gal	Not Published
Crankcase Capacity	0.71 gal	Not Published
Transmission / Hydraulic System Capacity	3.83 gal	Not Published
Front Axle Fluid Capacity	0.85 gal	Not Published

PTO Type	Independent	Trans
PTO Rear	540 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Standard, 2,000 rpm	Optional, 2000 rpm @ 2526 rpm
Category, 3-Point Hitch	Category I (N)	Category 1, with check chains
Hitch Lift Capacity	1,323 lb	2205 lb
Hitch Lift Capacity (at 24”)	1,101 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	Constant mesh on gear shift and synchro mesh on F/R shuttle
No. of Speeds	2 range (H/L)	Infinite
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Single plate, dry
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	Not Published

Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power
Brakes	Wet disc, foot operated	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	104 in	109.3 in
Overall Width	45.8 in	54.3 in
Wheelbase	57.5 in	Not Published
Ground Clearance	9.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	6.6 ft
Height to Top of ROPS	91.3 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,610 lb	Shuttle: 1819 lb; HST: 1863 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	6-12	7x12
R1 Agricultural - Rear	9.5-16	9.5x16
R3 Turf - Front	20x8-10	23x8.5-12
R3 Turf - Rear	29x12.5-15	33x12.5-16.5
R4 Industrial - Front	23x8.5-12	23x8.5-12
R4 Industrial - Rear	12-16.5	12x16.5

Quick Attach Loader System	Quick attach front loader	Skid-steer style loader couplers
Loader Model	BBL105	ML205 (named by both Mahindra spec sheets; a US listing calls the same loader the ML202)
Loader Lift Height	75.5 in	ML205: 82.7 in
Loader Lift Capacity (Full Height)	992 lb	ML205: 1402 lb
Loader Breakout Force	1,531 lbf	ML205: 2690 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published

Find a Bad Boy dealer near you Find a Mahindra dealer near you

Bad Boy Tractors 1025 vs Mahindra Max 28XL: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?

The Mahindra Max 28XL leads on engine hp at 28 hp hp, compared to 24.6 hp hp for the Bad Boy Tractors 1025.

Which has more PTO horsepower, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?

The Mahindra Max 28XL leads on pto hp at 23.5 hp hp, compared to 18.8 hp hp for the Bad Boy Tractors 1025.

Which is heavier, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?

The Mahindra Max 28XL leads on weight at 1,863 lb lb, compared to 1,610 lb lb for the Bad Boy Tractors 1025.

Which has more loader lift capacity, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?

The Mahindra Max 28XL leads on loader lift at 1,402 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1025.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Mahindra Max 28XL?

The Mahindra Max 28XL leads on 3-pt lift (24 in) at 2,205 lb lb, compared to 1,101 lb lb for the Bad Boy Tractors 1025.
