Across 6 measurable specs, this matchup is a dead heat: 3 categories to the Bad Boy Tractors 5045, 3 to the Bobcat CT5545. Machine pages: Bad Boy Tractors 5045 and Bobcat CT5545 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 5045 Bobcat CT5545 Engine HP (hp) ▲ 48 hp45 hp PTO HP (hp) ▲ 38.4 hp33.9 hp Weight (lb) 4,349 lb — Loader Lift (lb) ▲ 2,701 lb2,346 lb 3-Pt Lift (24 in) (lb) 2,425 lb ▲ 3,177 lbLift Height (in) 107.7 in — Breakout Force (lbf) 3,660 lbf — Hydraulic Flow (gpm) 16.4 gpm ▲ 17.8 gpmTravel Speed (mph) 16 mph ▲ 17.5 mph

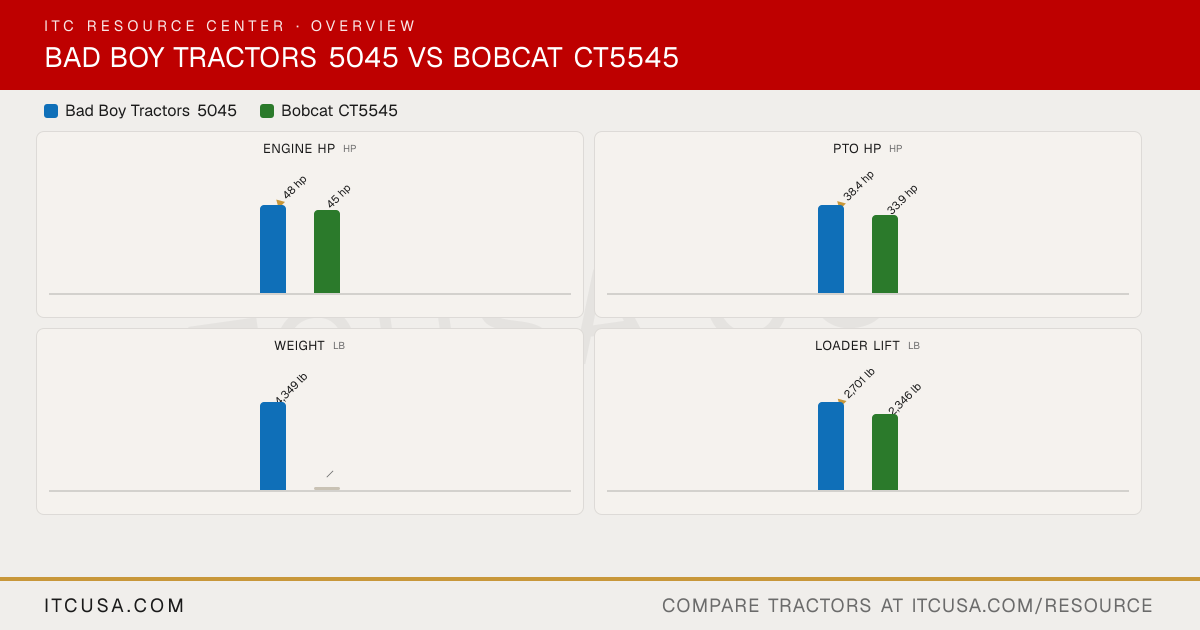

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 5045 Bobcat CT5545
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 5045 Bobcat CT5545
▶ EnginePTO Power 38.4 hp 33.9 hp Alternator 70 A, 12 V Not Published Air Cleaner Dry Element Not Published Engine Type 4 Cylinder Diesel Diesel Fuel System Not Published Not Published Displacement 139.5 in³ 109.8 in³ No. of Cylinders 4 3 Rated Engine Speed 2600 rpm 2750 rpm Cooling System Type Liquid Cooled Not Published Engine Manufacturer A2300N3, A2300T11, A2300N2, A2300T3 Not Published Engine Power (Gross) 48 hp 45 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightTractor Weight (Base) 4,349 lbs Cabin; 3,831-3,836 lbs (1,738-3,836 lb) ROPS — Weight with ROPS and Loader 5045S: 3,831 lb (tractor only); 5045H: 3,836 lb (tractor only) Not Applicable Weight with Cab and Loader Not Applicable Not Published ▶ WarrantyWarranty Length & Coverage 6-year powertrain warranty 24 months / 1,500 hours (whichever occurs first) ▶ HydraulicsPump Type Hydrostatic Power Steering Not Published Steering Flow 5.0 gpm 8.2 gpm Implement Flow 5045S: 11.4 gpm; 5045H: 10.7 gpm 9.6 gpm Total Hydraulic Flow 5045S: 16.4 gpm; 5045H: 15.7 gpm 17.8 gpm Hydraulic System Type Not Published Not Published Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 5045S: 16.4 gpm; 5045H: 15.7 gpm 17.8 gpm No. of Optional Remote Valves Not Published 2 No. of Standard Remote Valves Not Published 1 ▶ PTO & HitchPTO Rear 540 / 540E rpm 540 rpm PTO Type Independent Independent Lift Control Type Not Published Position with Draft Control Hitch Lift Capacity 3,306 lb 3,177 lb Mid-PTO Availability Not Published Optional: 2,103 rpm Category, 3-Point Hitch Category 1 Category 1 Hitch Lift Capacity (at 24”) 2,425 lb 3,177 lb ▶ Tire OptionsR3 Turf - Rear Not Published Not Published R3 Turf - Front Not Published Not Published Tire Size & Options R1 Agricultural Not Published R4 Industrial - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R1 Agricultural - Rear 13.6-26 Not Published R1 Agricultural - Front 9.5-16 Not Published ▶ Fluid CapacityCoolant Capacity 1.56 gal Cabin; 2.08 gal ROPS Not Published Crankcase Capacity 1.20 gal Not Published Fuel Tank Capacity 11.8 gal 14.8 gal Front Axle Fluid Capacity 1.90 gal Not Published Transmission / Hydraulic System Capacity 10.04 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 107.7 in (pivot pin) Not Published Loader Breakout Force 3,660 lb Not Published Quick Attach Loader System SSQA Not Published Loader Lift Capacity (Full Height) 2,701 lb 2,346 lb ▶ Transmission & DrivetrainClutch Not Published Not Applicable No. of Speeds 5045S: 16F/16R; 5045H: 4-range Not Applicable Transmission Type Synchromesh / HST Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.) Max Travel Speed (Forward) 16.0 mph 17.5 mph (28.2 km/hr) Max Travel Speed (Reverse) Not Published 17.5 mph (28.2 km/hr) Differential Lock & Limited Slip Options Rear differential lock Std ▶ Chassis, Steering & ControlsBrakes Wet, Multi-disc Wet Multi-Disc Steering Power steering Hydrostatic power steering Frame Type Compact utility tractor, 4WD Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Deluxe suspension seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 71.1 in. 75.6 in Overall Width 64.9 in. 74.2 in Overall Length 127.4 in. — Ground Clearance 15.5 in. 13.0 in Height to Top of ROPS 97.0 in. Cabin; 98.4 in. ROPS Not Applicable Height to Top of Cab Model Not Applicable 94.2 in Height to Top of ROPS (folded) Not Published Not Applicable Min. Turn Radius without Brakes Not Published 117.6 in Overall Length with 3-Point Hitch 127.4 in 139.6 in ▶ ITC Company AccessoriesAccessories that fit
Bad Boy Tractors 5045 vs Bobcat CT5545: Quick Answers
Which has more horsepower, the Bad Boy Tractors 5045 or the Bobcat CT5545? The Bad Boy Tractors 5045 leads on engine hp at 48 hp hp, compared to 45 hp hp for the Bobcat CT5545.
Which has more PTO horsepower, the Bad Boy Tractors 5045 or the Bobcat CT5545? The Bad Boy Tractors 5045 leads on pto hp at 38.4 hp hp, compared to 33.9 hp hp for the Bobcat CT5545.
Which has more loader lift capacity, the Bad Boy Tractors 5045 or the Bobcat CT5545? The Bad Boy Tractors 5045 leads on loader lift at 2,701 lb lb, compared to 2,346 lb lb for the Bobcat CT5545.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the Bobcat CT5545? The Bobcat CT5545 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045. More Head-to-Heads
