Bad Boy Tractors 5045 vs Case IH Farmall 40A Mechanical

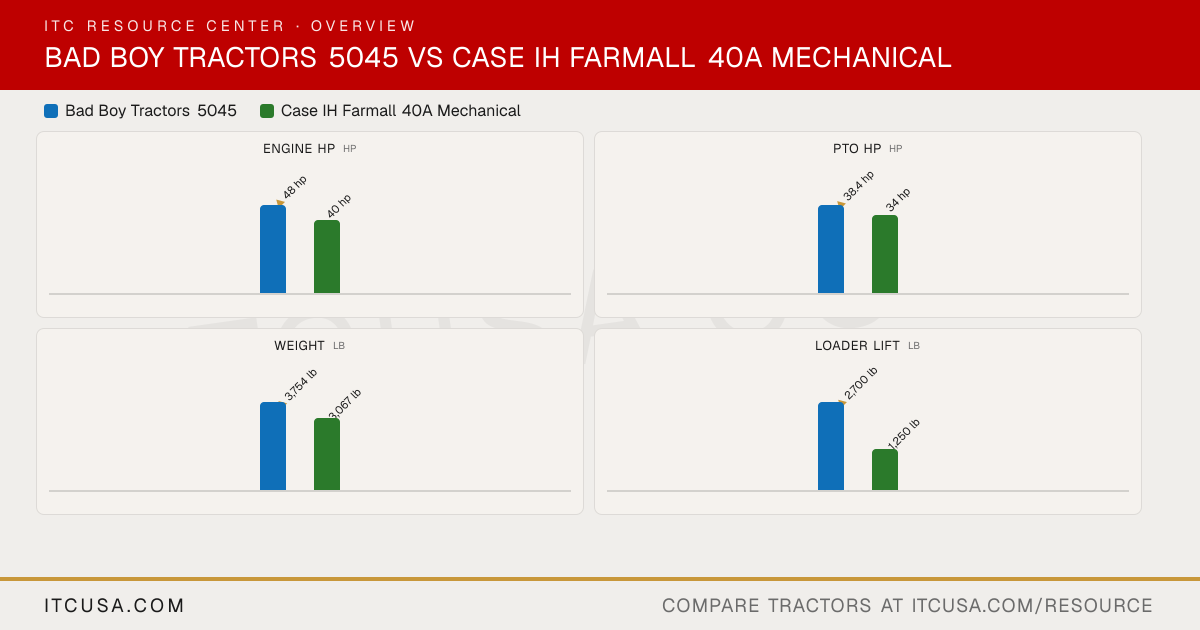

Across 9 measurable specs, the Bad Boy Tractors 5045 leads 9 categories to 0. Machine pages: Bad Boy Tractors 5045 and Case IH Farmall 40A Mechanical.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	Case IHFarmall 40A Mechanical

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A2300N2	L3C19-T4
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders	4	3
Displacement	139.5 in³	116 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	40 hp
PTO Power	38.4 hp	34 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Pressurized liquid cooling with recirculating bypass
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	High pressure common rail
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	10.7 gpm	8.2 gpm
Steering Flow	5 gpm	4.2 gpm
Total Hydraulic Flow	15.7 gpm	12.4 gpm (8.2 + 4.2, computed)
Overall Hydraulic Pump Flow	15.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 4 ports	1
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	7.4 gal
Coolant Capacity	2.08 gal	7.5 qt
Crankcase Capacity	1.20 gal	5.8 qt
Transmission / Hydraulic System Capacity	10.04 gal	8.5 gal
Front Axle Fluid Capacity	1.90 gal	6.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Mechanical Draft Control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)
No. of Speeds	4 range (HST)	12 forward, 12 reverse
Max Travel Speed (Forward)	19.5 mph	14.2 mph
Max Travel Speed (Reverse)	19.5 mph	13.63 mph
Clutch	None (HST)	Dry clutch
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical differential lock
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet disc, mechanical actuation
Seat Suspension & Adjustability	Deluxe suspension seat	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	145.2 in
Overall Width	64.9 in	66.5 in
Wheelbase	71.1 in	67.2 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	123 in
Height to Top of ROPS	98.4 in	87.6 in
Height to Top of ROPS (folded)	Not Published	68.2 in
Height to Top of Cab Model	97.0 in	Not Published
▶Weight
Tractor Weight (Base)	3,754 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 12.4-28 rear (ag)	R1 agricultural, R3 turf, or R4 industrial (R4 standard)
R1 Agricultural - Front	9.5-16	7x14
R1 Agricultural - Rear	12.4-28	11.2x24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	Not Published	25x8.50-14
R4 Industrial - Rear	Not Published	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL500	L340A
Loader Lift Height	106.6 in	98.4 in
Loader Lift Capacity (Full Height)	2,700 lb	1,250 lb
Loader Breakout Force	3,660 lb	1913 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 5045 vs Case IH Farmall 40A Mechanical: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 or the Case IH Farmall 40A Mechanical?

The Bad Boy Tractors 5045 leads on engine hp at 48 hp hp, compared to 40 hp hp for the Case IH Farmall 40A Mechanical.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the Case IH Farmall 40A Mechanical?

The Bad Boy Tractors 5045 leads on pto hp at 38.4 hp hp, compared to 34 hp hp for the Case IH Farmall 40A Mechanical.

Which is heavier, the Bad Boy Tractors 5045 or the Case IH Farmall 40A Mechanical?

The Bad Boy Tractors 5045 leads on weight at 3,754 lb lb, compared to 3,067 lb lb for the Case IH Farmall 40A Mechanical.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the Case IH Farmall 40A Mechanical?

The Bad Boy Tractors 5045 leads on loader lift at 2,700 lb lb, compared to 1,250 lb lb for the Case IH Farmall 40A Mechanical.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the Case IH Farmall 40A Mechanical?

The Bad Boy Tractors 5045 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the Case IH Farmall 40A Mechanical.
