Bad Boy Tractors 5045 vs Case IH Farmall 40C Gear

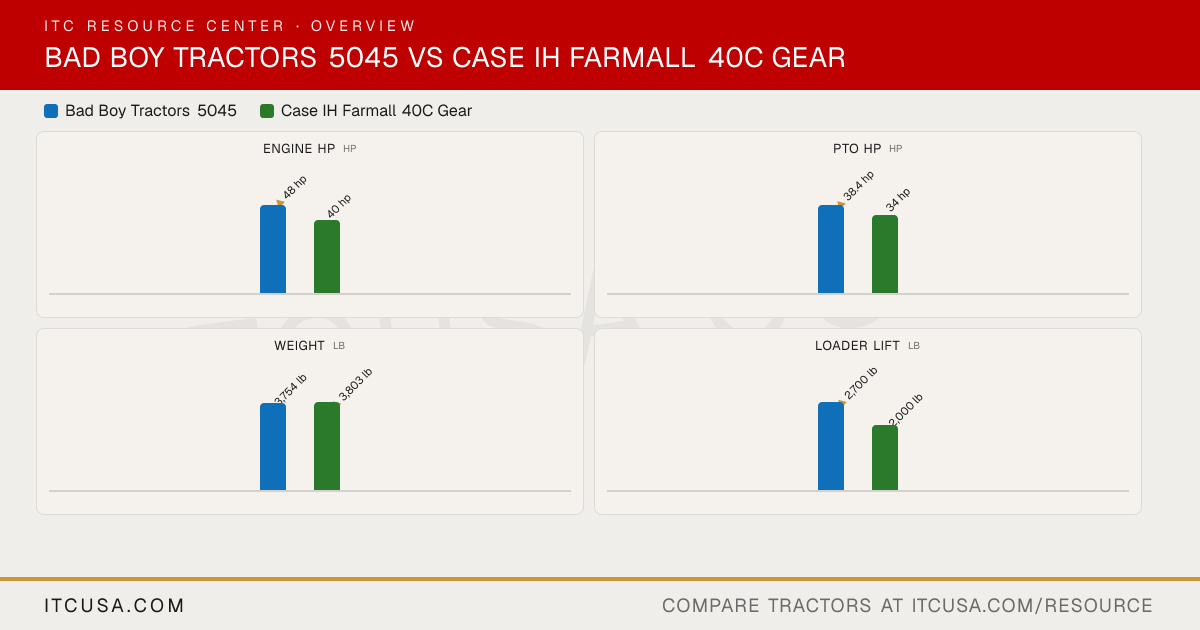

Across 9 measurable specs, the Bad Boy Tractors 5045 leads 8 categories to 1. Machine pages: Bad Boy Tractors 5045 and Case IH Farmall 40C Gear.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	Case IHFarmall 40C Gear

▶Engine
Engine Manufacturer	TYM	Not Published
Engine Model	A2300N2	Not Published
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	Diesel, 3-cylinder, turbocharged
No. of Cylinders	4	3
Displacement	139.5 in³	116 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	40 hp
PTO Power	38.4 hp	34 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Replaceable dry element
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	70 A
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	10.7 gpm	8.2 gpm
Steering Flow	5 gpm	4.2 gpm
Total Hydraulic Flow	15.7 gpm	Not Published
Overall Hydraulic Pump Flow	15.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 4 ports	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	12.4 gal
Coolant Capacity	2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.90 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent rear PTO, electro-hydraulic engagement
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Mechanical draft control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	12 x 12 mechanical shuttle with synchro shift
No. of Speeds	4 range (HST)	12 forward, 12 reverse
Max Travel Speed (Forward)	19.5 mph	14.2 mph
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	dry clutch
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Deluxe suspension seat	Deluxe cloth seat with adjustable suspension
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	128.1 in
Overall Width	64.9 in	66.4 in
Wheelbase	71.1 in	66 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	98.4 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	93.3 in
▶Weight
Tractor Weight (Base)	3,754 lb	3,803 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 12.4-28 rear (ag)	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	12.4-28	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick-Attach faceplate; quick-connect loader mounting (L350A)
Loader Model	BBL500	L350A
Loader Lift Height	106.6 in	105 in
Loader Lift Capacity (Full Height)	2,700 lb	2,000 lb
Loader Breakout Force	3,660 lb	2,640 lbf
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 5045 vs Case IH Farmall 40C Gear: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 or the Case IH Farmall 40C Gear?

The Bad Boy Tractors 5045 leads on engine hp at 48 hp hp, compared to 40 hp hp for the Case IH Farmall 40C Gear.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the Case IH Farmall 40C Gear?

The Bad Boy Tractors 5045 leads on pto hp at 38.4 hp hp, compared to 34 hp hp for the Case IH Farmall 40C Gear.

Which is heavier, the Bad Boy Tractors 5045 or the Case IH Farmall 40C Gear?

The Case IH Farmall 40C Gear leads on weight at 3,803 lb lb, compared to 3,754 lb lb for the Bad Boy Tractors 5045.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the Case IH Farmall 40C Gear?

The Bad Boy Tractors 5045 leads on loader lift at 2,700 lb lb, compared to 2,000 lb lb for the Case IH Farmall 40C Gear.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the Case IH Farmall 40C Gear?

The Bad Boy Tractors 5045 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the Case IH Farmall 40C Gear.
