Bad Boy Tractors 5045 vs Kioti NX4510CH

Across 9 measurable specs, the Kioti NX4510CH leads 6 categories to 3. Machine pages: Bad Boy Tractors 5045 and Kioti NX4510CH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	KiotiNX4510CH

▶Engine
PTO Power	38.4 hp	33.9 hp
Alternator	70 A, 12 V	Not Published
Air Cleaner	Dry Element	Not Published
Engine Type	4 Cylinder Diesel	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Not Published	Common Rail Direct Injection (CRDI)
Displacement	139.5 in³	111.4 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid Cooled	Water-cooled
Engine Manufacturer	A2300N3, A2300T11, A2300N2, A2300T3	KIOTI (Daedong)
Engine Power (Gross)	48 hp	45 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Tractor Weight (Base)	4,349 lbs Cabin; 3,831-3,836 lbs (1,738-3,836 lb) ROPS	—
Weight with ROPS and Loader	5045S: 3,831 lb (tractor only); 5045H: 3,836 lb (tractor only)	Not Applicable
Weight with Cab and Loader	Not Applicable	4,309 lb
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Gear
Steering Flow	5.0 gpm	8.2 gpm
Implement Flow	5045S: 11.4 gpm; 5045H: 10.7 gpm	9.6 gpm
Total Hydraulic Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	17.90 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	17.90 gpm
No. of Optional Remote Valves	Not Published	1
No. of Standard Remote Valves	Not Published	1
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position with Draft Control
Hitch Lift Capacity	3,306 lb	3,177 lbs (at 24 in)
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	3,177 lbs
▶Tire Options
R3 Turf - Rear	Not Published	21.5lx16.1
R3 Turf - Front	Not Published	29x12.5-15
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	14.9-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	13.6-26	13.6-24
R1 Agricultural - Front	9.5-16	8.0-16
▶Fluid Capacity
Coolant Capacity	1.56 gal Cabin; 2.08 gal ROPS	2.0 gal
Crankcase Capacity	1.20 gal	1.58 gal
Fuel Tank Capacity	11.8 gal	14.8 gal
Front Axle Fluid Capacity	1.90 gal	1.8 gal
Transmission / Hydraulic System Capacity	10.04 gal	11.89 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	108.3 in
Loader Breakout Force	3,660 lb	3,727 lb
Quick Attach Loader System	SSQA	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	2,701 lb	2,761 lb
▶Transmission & Drivetrain
Clutch	Not Published	None
No. of Speeds	5045S: 16F/16R; 5045H: 4-range	3 Range
Transmission Type	Synchromesh / HST	Hydrostatic
Max Travel Speed (Forward)	16.0 mph	16.52 mph
Max Travel Speed (Reverse)	Not Published	16.52 mph
Differential Lock & Limited Slip Options	Rear differential lock	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet Multi Disc
Steering	Power steering	Hydrostatic Power Steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Adjustable Seat
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	75.6 in
Overall Width	64.9 in.	65.6 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	13.7 in
Height to Top of ROPS	97.0 in. Cabin; 98.4 in. ROPS	Not Applicable
Height to Top of Cab Model	Not Applicable	94.1 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	9.81 ft (2.99 m)
Overall Length with 3-Point Hitch	127.4 in	139.6 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Bad Boy Tractors 5045 vs Kioti NX4510CH: Quick Answers

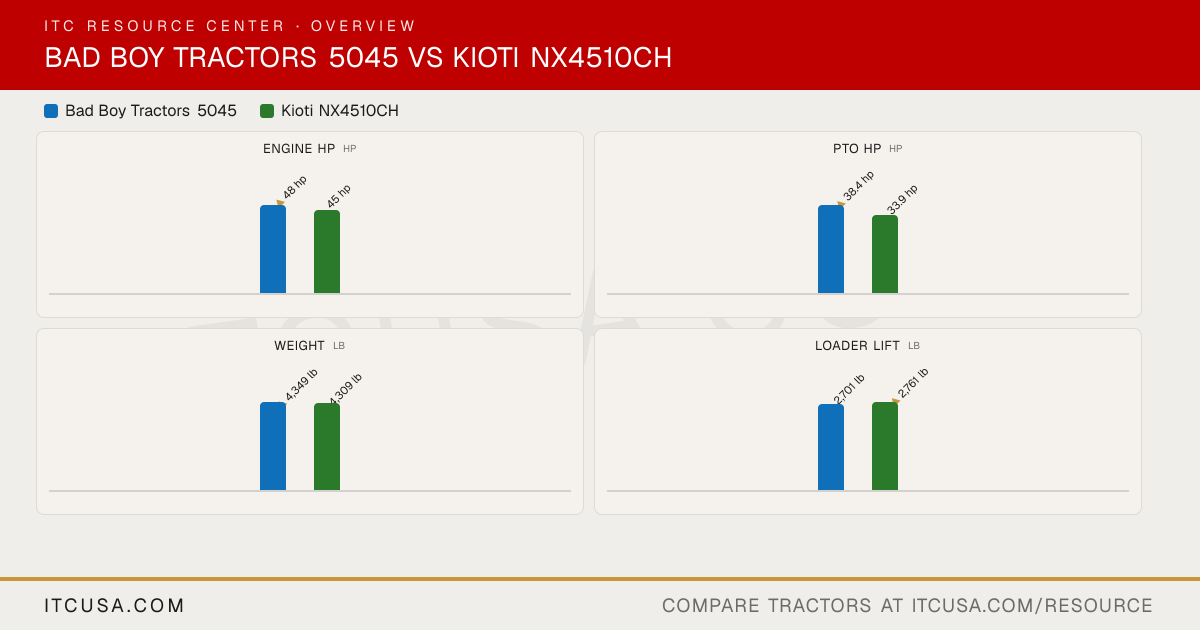

Which has more horsepower, the Bad Boy Tractors 5045 or the Kioti NX4510CH?

The Bad Boy Tractors 5045 leads on engine hp at 48 hp hp, compared to 45 hp hp for the Kioti NX4510CH.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the Kioti NX4510CH?

The Bad Boy Tractors 5045 leads on pto hp at 38.4 hp hp, compared to 33.9 hp hp for the Kioti NX4510CH.

Which is heavier, the Bad Boy Tractors 5045 or the Kioti NX4510CH?

The Bad Boy Tractors 5045 leads on weight at 4,349 lb lb, compared to 4,309 lb lb for the Kioti NX4510CH.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the Kioti NX4510CH?

The Kioti NX4510CH leads on loader lift at 2,761 lb lb, compared to 2,701 lb lb for the Bad Boy Tractors 5045.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the Kioti NX4510CH?

The Kioti NX4510CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045.
