Bad Boy Tractors 5045 vs Kubota M5660SUH

Across 9 measurable specs, the Kubota M5660SUH leads 7 categories to 2. Machine pages: Bad Boy Tractors 5045 and Kubota M5660SUH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

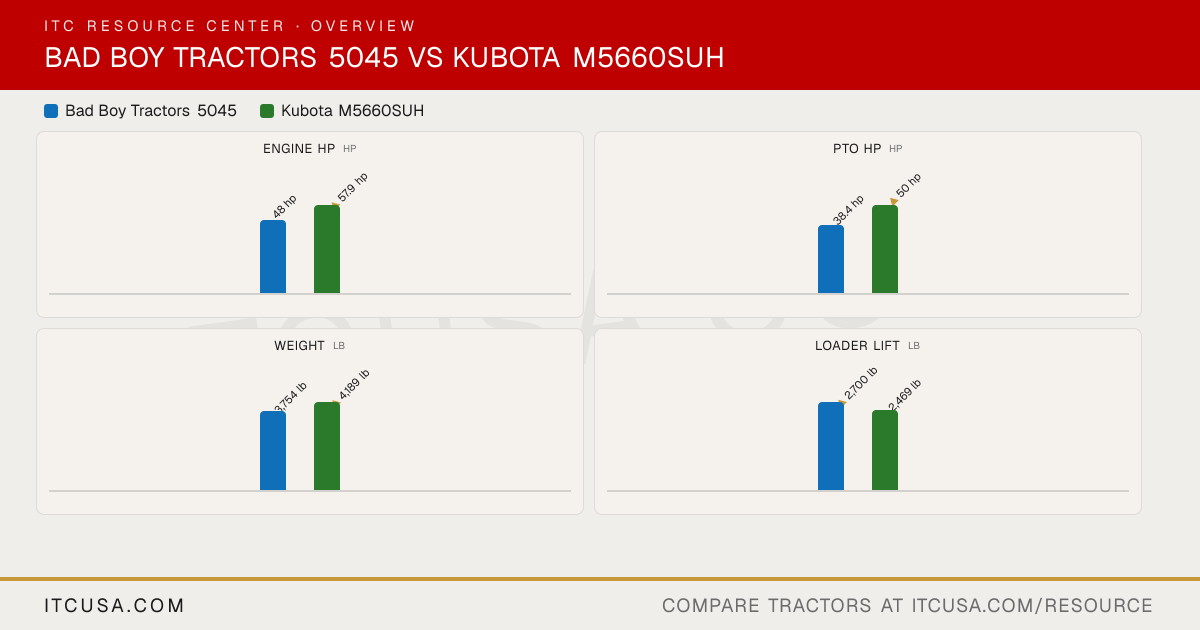

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	KubotaM5660SUH

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A2300N2	V2403-CR-TE4
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	4-cylinder in-line, common rail direct injection, turbocharged diesel
No. of Cylinders	4	4
Displacement	139.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	57.9 hp
PTO Power	38.4 hp	50 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled, pressurized radiator with recovery tank
Air Cleaner	Dry element	Dry paper dual element, 8 in diameter, pre-cleaner standard
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	45 A
▶Hydraulics
Pump Type	Not Published	Gear pump
Implement Flow	10.7 gpm	10.6 gpm
Steering Flow	5 gpm	6.1 gpm
Total Hydraulic Flow	15.7 gpm	16.5 gpm
Overall Hydraulic Pump Flow	15.7 gpm	16.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1 (SCD)
No. of Optional Remote Valves	Up to 4 ports	2 optional (3 maximum)
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	17.7 gal
Coolant Capacity	2.08 gal	8.5 qt
Crankcase Capacity	1.20 gal	7.6 qt
Transmission / Hydraulic System Capacity	10.04 gal	50.7 qt
Front Axle Fluid Capacity	1.90 gal	No front axle oil, 2WD (M5660SUH); 6.9 qt front differential case plus 3.2 qt per bevel gear case (M5660SUHD)
▶PTO & Hitch
PTO Type	Independent	Hydraulic independent PTO, self-modulating multi-plate wet clutch with brake
PTO Rear	540 / 540E rpm	540 rpm (540/540E optional)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I and II
Hitch Lift Capacity	3,306 lb	4189 lb
Hitch Lift Capacity (at 24”)	2,425 lb	3307 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Fully synchronized 4-speed main gear shift with hi-lo range and hydraulic shuttle, 8F/8R
No. of Speeds	4 range (HST)	8F/8R
Max Travel Speed (Forward)	19.5 mph	18.2 mph
Max Travel Speed (Reverse)	19.5 mph	18.6 mph
Clutch	None (HST)	Multiple wet disc
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock standard (mechanical)
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Mechanical wet disc
Seat Suspension & Adjustability	Deluxe suspension seat	Fully adjustable suspension seat with retractable seat belt
Front Axle Type	Selectable 4WD	Adjustable tubular steel, 2WD (M5660SUH); Cast iron bevel pinion drive with 55 degree turning angle, 4WD (M5660SUHD)
Front Axle Rating	Not Published	4410 lb at 55.9 in tread spacing (M5660SUH); 5290 lb at 55.9 in tread spacing (M5660SUHD)
Drawbar Capacity	Not Published	2200 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	138.7 in (M5660SUH); 136 in (M5660SUHD)
Overall Width	64.9 in	73.2 in
Wheelbase	71.1 in	82 in (M5660SUH); 80.7 in (M5660SUHD)
Ground Clearance	15.5 in	16.3 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	10.8 ft (M5660SUH); 12.8 ft (M5660SUHD)
Height to Top of ROPS	98.4 in	95.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	Not Published
▶Weight
Tractor Weight (Base)	3,754 lb	4189 lb (M5660SUH); 4387 lb (M5660SUHD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 12.4-28 rear (ag)	2WD: 6.50-16, 7.5-16, 9.5L-15 fronts with 14.9-28 or 16.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1 and LSW; 4WD: 9.5-22 or 280/85R20 fronts with 14.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1; R4 12.5/80-18 / 16.9-24
R1 Agricultural - Front	9.5-16	6.5-16 (M5660SUH); 8.3-24 (M5660SUHD)
R1 Agricultural - Rear	12.4-28	14.9-28
R3 Turf - Front	Not Published	29x12.50-15
R3 Turf - Rear	Not Published	21.5L-16.1
R4 Industrial - Front	Not Published	12.5/80-18 (M5660SUHD)
R4 Industrial - Rear	Not Published	16.9-24 (M5660SUHD)
▶Loader & Attachments
Quick Attach Loader System	SSQA	LA1154SU: 2-lever quick attach coupler standard
Loader Model	BBL500	LA1154SU (printed LA1154 in the 2014 brochure)
Loader Lift Height	106.6 in	LA1154: 130.9 in (height position); 115.7 in (power position)
Loader Lift Capacity (Full Height)	2,700 lb	LA1154: 2469 lb (height position); 2928 lb (power position)
Loader Breakout Force	3,660 lb	LA1154SU: 4230 lbf (height position); 5354 lbf (power position)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	All usage - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 5045 vs Kubota M5660SUH: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 or the Kubota M5660SUH?

The Kubota M5660SUH leads on engine hp at 57.9 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the Kubota M5660SUH?

The Kubota M5660SUH leads on pto hp at 50 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045.

Which is heavier, the Bad Boy Tractors 5045 or the Kubota M5660SUH?

The Kubota M5660SUH leads on weight at 4,189 lb lb, compared to 3,754 lb lb for the Bad Boy Tractors 5045.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the Kubota M5660SUH?

The Bad Boy Tractors 5045 leads on loader lift at 2,700 lb lb, compared to 2,469 lb lb for the Kubota M5660SUH.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the Kubota M5660SUH?

The Kubota M5660SUH leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045.
