Bad Boy Tractors 5045 vs Massey Ferguson 2605H

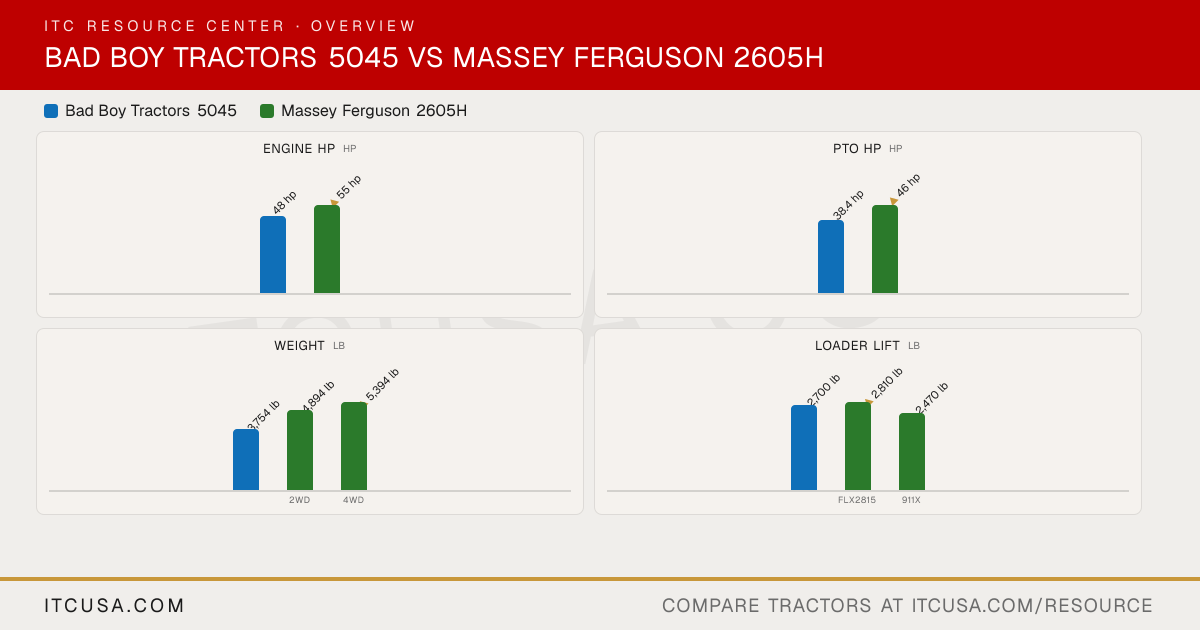

Across 8 measurable specs, the Massey Ferguson 2605H leads 7 categories to 0 (1 tied). Machine pages: Bad Boy Tractors 5045 and Massey Ferguson 2605H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	Massey Ferguson2605H

▶Engine
Engine Manufacturer	TYM	Simpson
Engine Model	A2300N2	SJV326
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	3-cylinder, turbocharged, intercooled, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	139.5 in³	157.9 in³
Rated Engine Speed	2600 rpm	2000 rpm
Engine Power (Gross)	48 hp	55 hp
PTO Power	38.4 hp	46 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	Electronically controlled high-pressure common rail
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Mark 1A scotch yoke piston pump
Implement Flow	10.7 gpm	Not Published
Steering Flow	5 gpm	Not Published
Total Hydraulic Flow	15.7 gpm	15.7 gpm
Overall Hydraulic Pump Flow	15.7 gpm	15.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	10.6 gpm
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 4 ports	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	14.5 gal
Coolant Capacity	2.08 gal	4 gal
Crankcase Capacity	1.20 gal	2.5 gal
Transmission / Hydraulic System Capacity	10.04 gal	10.5 gal
Front Axle Fluid Capacity	1.90 gal	4WD: 1.5 gal differential, plus 0.23 gal per wheel end
▶PTO & Hitch
PTO Type	Independent	2WD: Live; 4WD: Independent
PTO Rear	540 / 540E rpm	540 rpm, 6-spline
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I and II
Hitch Lift Capacity	3,306 lb	4,519 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,755 lb
Lift Control Type	Position control	Draft, position and response control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	2WD: 8F x 2R SideShift sliding gear; 4WD: 8F x 8R synchro shuttle
No. of Speeds	4 range (HST)	2WD: 8 forward and 2 reverse; 4WD: 8 forward and 8 reverse
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	2WD: dual stage dry; 4WD: split torque
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical engagement via right-side heel pedal
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering with separate reservoir
Brakes	Wet, multi-disc	Oil-immersed wet disc
Seat Suspension & Adjustability	Deluxe suspension seat	ReverseRise adjustable seat with fixed steering column
Front Axle Type	Selectable 4WD	2WD: straight, telescopically adjustable; 4WD: heavy-duty planetary reduction
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	2WD: 138 in; 4WD: 139 in
Overall Width	64.9 in	66.5 in
Wheelbase	71.1 in	2WD: 80.7 in; 4WD: 81.5 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	98.4 in	91.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	Not Published
▶Weight
Tractor Weight (Base)	3,754 lb	2WD: 4,894 lb; 4WD: 5,394 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 12.4-28 rear (ag)	2WD standard (ag): 6.00x16 front, 13.6x28 rear; 2WD optional (ag): 7.5x16 front, 16.6x28 rear; 4WD standard (ag): 9.5x24 front, 14.9x28 rear; 4WD industrial: 10.5/80-18 front with 14.9x24 rear, or 12.5/80-18 front with 16.9x24 rear
R1 Agricultural - Front	9.5-16	2WD: 6.00x16 (7.5x16 optional); 4WD: 9.5x24
R1 Agricultural - Rear	12.4-28	2WD: 13.6x28 (16.6x28 optional); 4WD: 14.9x28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	4WD: 10.5/80-18 or 12.5/80-18
R4 Industrial - Rear	Not Published	4WD: 14.9x24 or 16.9x24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Skid steer style coupling
Loader Model	BBL500	FLx2815 (2WD); 911X (4WD)
Loader Lift Height	106.6 in	FLx2815: 111 in; 911X: 114 in
Loader Lift Capacity (Full Height)	2,700 lb	FLx2815: 2,810 lb; 911X: 2,470 lb
Loader Breakout Force	3,660 lb	FLx2815: 4,240 lb; 911X: 2,755 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 5045 vs Massey Ferguson 2605H: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 or the Massey Ferguson 2605H?

The Massey Ferguson 2605H leads on engine hp at 55 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the Massey Ferguson 2605H?

The Massey Ferguson 2605H leads on pto hp at 46 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045.

Which is heavier, the Bad Boy Tractors 5045 or the Massey Ferguson 2605H?

The Massey Ferguson 2605H leads on weight at 5,394 lb lb, compared to 3,754 lb lb for the Bad Boy Tractors 5045.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the Massey Ferguson 2605H?

The Massey Ferguson 2605H leads on loader lift at 2,810 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5045.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the Massey Ferguson 2605H?

The Massey Ferguson 2605H leads on 3-pt lift (24 in) at 2,755 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045.
