Bad Boy Tractors 5045 vs Massey Ferguson MF 240 XTRA

Across 4 measurable specs, this matchup is a dead heat: 2 categories to the Bad Boy Tractors 5045, 2 to the Massey Ferguson MF 240 XTRA. Machine pages: Bad Boy Tractors 5045 and Massey Ferguson MF 240 XTRA.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

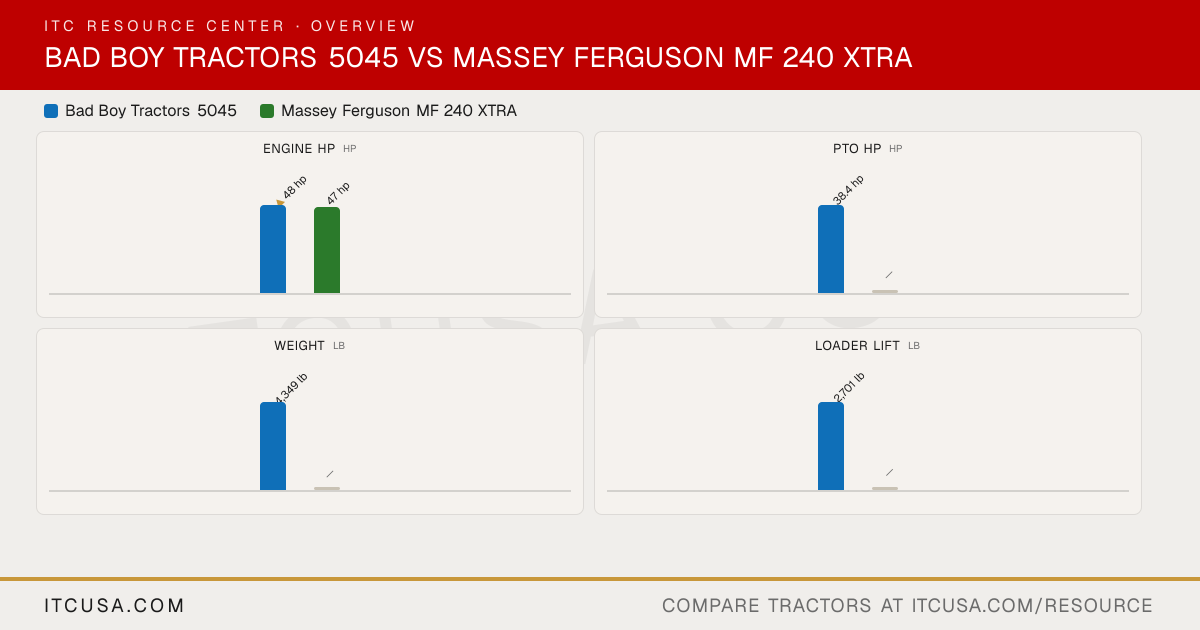

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	Massey FergusonMF 240 XTRA

▶Engine
PTO Power	38.4 hp	Not Published
Alternator	70 A, 12 V	Not Published
Air Cleaner	Dry Element	Dry Type / Oil Bath
Engine Type	4 Cylinder Diesel	3-cylinder diesel
Fuel System	Not Published	Not Published
Displacement	139.5 in³	152.6 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2000 rpm
Cooling System Type	Liquid Cooled	Not Published
Engine Manufacturer	A2300N3, A2300T11, A2300N2, A2300T3	Simpson
Engine Power (Gross)	48 hp	47 hp
Engine Emissions Constraints	Tier 4	Not Published
▶Weight
Tractor Weight (Base)	4,349 lbs Cabin; 3,831-3,836 lbs (1,738-3,836 lb) ROPS	—
Weight with ROPS and Loader	5045S: 3,831 lb (tractor only); 5045H: 3,836 lb (tractor only)	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Not Published
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Scotch yoke pump (rear axle mounted)
Steering Flow	5.0 gpm	5.3 gpm
Implement Flow	5045S: 11.4 gpm; 5045H: 10.7 gpm	4.8 gpm
Total Hydraulic Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	10.0 gpm
Hydraulic System Type	Not Published	Open centre
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	10.0 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Live PTO
Lift Control Type	Not Published	Ferguson System
Hitch Lift Capacity	3,306 lb	3,197 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	R1 Agricultural	R1 Agricultural
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	13.6-26	12.4X24; 13.6X28
R1 Agricultural - Front	9.5-16	6.00X16
▶Fluid Capacity
Coolant Capacity	1.56 gal Cabin; 2.08 gal ROPS	Not Published
Crankcase Capacity	1.20 gal	Not Published
Fuel Tank Capacity	11.8 gal	12.4 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	Not Published
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,701 lb	Not Published
▶Transmission & Drivetrain
Clutch	Not Published	Dual Dry Plate
No. of Speeds	5045S: 16F/16R; 5045H: 4-range	8F / 2R
Transmission Type	Synchromesh / HST	Sliding mesh gearbox
Max Travel Speed (Forward)	16.0 mph	18.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical differential lock (foot pedal)
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Oil immersed, mechanical actuation
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	74.4 in
Overall Width	64.9 in.	Not Published
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	Not Published
Height to Top of ROPS	97.0 in. Cabin; 98.4 in. ROPS	85.4 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	127.4 in	126.4 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 5045 vs Massey Ferguson MF 240 XTRA: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 or the Massey Ferguson MF 240 XTRA?

The Bad Boy Tractors 5045 leads on engine hp at 48 hp hp, compared to 47 hp hp for the Massey Ferguson MF 240 XTRA.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the Massey Ferguson MF 240 XTRA?

The Massey Ferguson MF 240 XTRA leads on 3-pt lift (24 in) at 3,197 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045.
