Bad Boy Tractors 5045 vs New Holland Workmaster 50

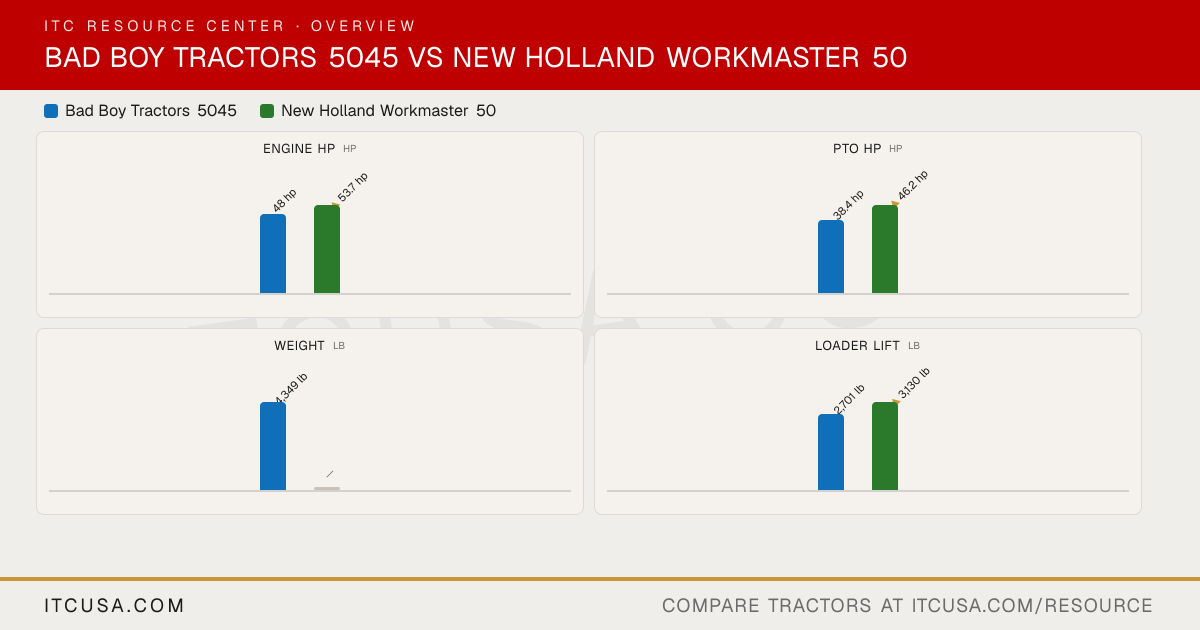

Across 7 measurable specs, the New Holland Workmaster 50 leads 6 categories to 1. Machine pages: Bad Boy Tractors 5045 and New Holland Workmaster 50.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	New HollandWorkmaster 50

▶Engine
Engine Manufacturer	TYM	FPT
Engine Model	A2300N2	R753
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	Turbocharged 3-cylinder diesel
No. of Cylinders	4	3
Displacement	139.5 in³	136 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	53 hp
PTO Power	38.4 hp	45 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	2-stage
Fuel System	Not Published	Direct injection / Common rail
Alternator	50 A, 12 V	75 A
▶Hydraulics
Pump Type	Not Published	Dual hydraulic pumps; open center, fixed displacement gear pump
Implement Flow	10.7 gpm	12 gpm
Steering Flow	5 gpm	5.5 gpm
Total Hydraulic Flow	15.7 gpm	17.5 gpm
Overall Hydraulic Pump Flow	15.7 gpm	17.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 4 ports	2
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	17.2 gal
Coolant Capacity	2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.90 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 rpm (540E optional)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category II/I
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2,701 lb
Lift Control Type	Position control	Position control with mechanical draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	8x8 synchronized shuttle
No. of Speeds	4 range (HST)	8F/8R
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Dry, 11 in diameter, organic plate
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical rear differential lock (foot pedal); 4WD front axle with limited slip and front differential lock
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Not Published
Brakes	Wet, multi-disc	Individual mechanically actuated wet disc
Seat Suspension & Adjustability	Deluxe suspension seat	Deluxe contoured suspension seat, adjusts to operator height
Front Axle Type	Selectable 4WD	4WD: limited-slip front axle with front differential lock, mechanical engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	64.9 in	67.5 in (shipping width)
Wheelbase	71.1 in	ROPS 4WD: 77.6 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	9.18 ft (with brake applied)	Not Published
Height to Top of ROPS	98.4 in	ROPS 4WD: 97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
Overall Length	127.4 in (with 3-point hitch)	ROPS 4WD: 134 in
▶Weight
Tractor Weight (Base)	3,831 lb	ROPS 2WD: 4,442 lb (shipping weight); ROPS 4WD: 5,059 lb (shipping weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable
▶Tire Options
Tire Size & Options	9.5-16 front / 12.4-28 rear (ag)	R1 agricultural, R3 turf, R4 industrial
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	12.4-28	13.6x28 R1
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	18.4x24 R4
▶Loader & Attachments
Quick Attach Loader System	SSQA	600TL Series quick-attach loader (611TL, 621TL, 616TL, 626TL)
Loader Model	BBL500	611TL, 616TL, 621TL, 626TL (611TL and 621TL non self-leveling; 616TL and 626TL mechanical self-leveling)
Loader Lift Height	106.6 in	611TL: 112 in; 616TL: 115 in; 621TL: 119 in; 626TL: 122 in
Loader Lift Capacity (Full Height)	2,700 lb (at pivot pin)	Not Published
Loader Breakout Force	3,660 lb	611TL: 2,998 lb; 616TL: 3,130 lb; 621TL: 3,086 lb; 626TL: 3,527 lb (at 31.5 in in front of pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 5045 vs New Holland Workmaster 50: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on engine hp at 53 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on pto hp at 45 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045.

Which is heavier, the Bad Boy Tractors 5045 or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on weight at 5,059 lb lb, compared to 3,831 lb lb for the Bad Boy Tractors 5045.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on 3-pt lift (24 in) at 2,701 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045.
