Which has more horsepower, the Bad Boy Tractors 5045 or the TYM 4820?

They are effectively tied: both machines are rated at 48 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the TYM 4820?

They are effectively tied: both machines are rated at 38.4 hp hp for pto hp.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the TYM 4820?

They are effectively tied: both machines are rated at 2,701 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the TYM 4820?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).

Bad Boy Tractors 5045 vs TYM 4820

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM 4820 leads 2 categories to 1 (5 tied). Machine pages: Bad Boy Tractors 5045 and TYM 4820.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 5045	TYM 4820
Engine HP (hp)	48 hp	48 hp
PTO HP (hp)	38.4 hp	38.4 hp
Weight (lb)	4,349 lb	—
Loader Lift (lb)	2,701 lb	2,701 lb
3-Pt Lift (24 in) (lb)	2,425 lb	2,425 lb
Lift Height (in)	▲ 107.7 in	106.6 in
Breakout Force (lbf)	3,660 lbf	3,660 lbf
Hydraulic Flow (gpm)	16.4 gpm	▲ 16.5 gpm
Travel Speed (mph)	16 mph	▲ 19.5 mph

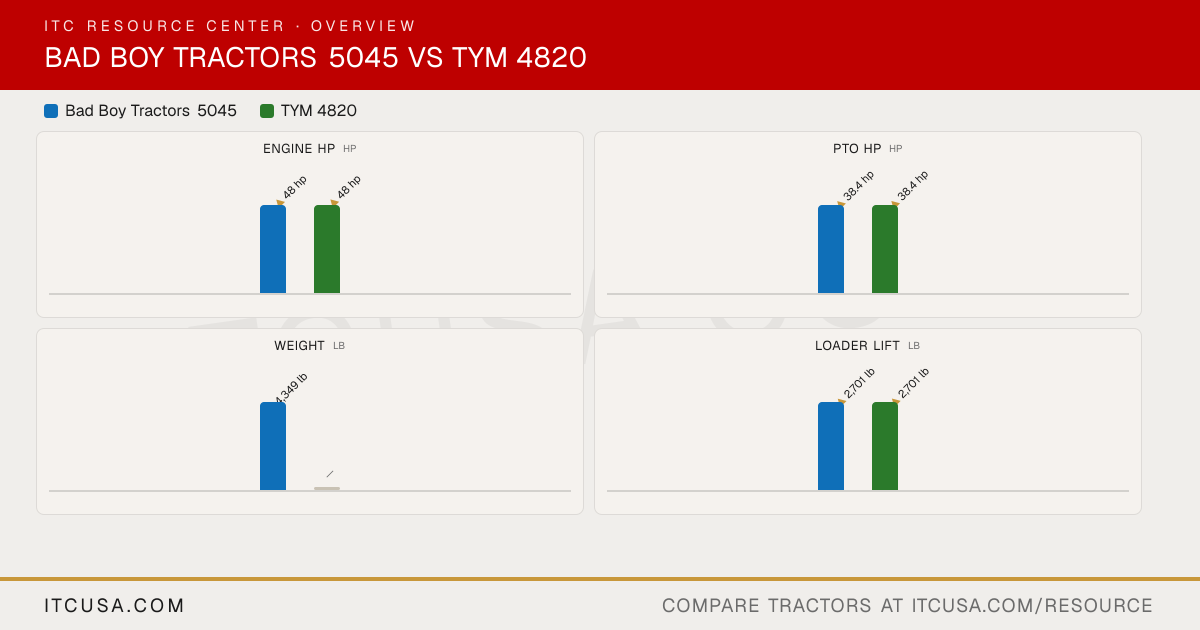

The headline numbers at a glance.

Bad Boy Tractors 5045TYM 4820

Engine HPhp

▲48 hp

PTO HPhp

▲38.4 hp

Weightlb

4,349 lb

—

Loader Liftlb

▲2,701 lb

3-Pt Lift (24 in)lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	TYM4820


PTO Power	38.4 hp	38.4 hp
Alternator	70 A, 12 V	50 A, 12 V
Air Cleaner	Dry Element	Dry element
Engine Type	4 Cylinder Diesel	4-cylinder, naturally aspirated diesel
Fuel System	Not Published	IDI
Displacement	139.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid Cooled	Not Published
Engine Manufacturer	A2300N3, A2300T11, A2300N2, A2300T3	TYM
Engine Power (Gross)	48 hp	48 hp
Engine Emissions Constraints	Tier 4	Tier 4

Tractor Weight (Base)	4,349 lbs Cabin; 3,831-3,836 lbs (1,738-3,836 lb) ROPS	—
Weight with ROPS and Loader	5045S: 3,831 lb (tractor only); 5045H: 3,836 lb (tractor only)	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Hydrostatic Power Steering	Dual gear pump
Steering Flow	5.0 gpm	5.2 gpm
Implement Flow	5045S: 11.4 gpm; 5045H: 10.7 gpm	11.4 gpm
Total Hydraulic Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	16.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	16.5 gpm
No. of Optional Remote Valves	Not Published	Up to 4
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 / 540E rpm	540/750 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	3,306 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb

R3 Turf - Rear	Not Published	41x14-20 / 44x18-20
R3 Turf - Front	Not Published	27x8.5-15 / 29x12.5-15
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5Lx24
R4 Industrial - Front	Not Published	12-16.5
R1 Agricultural - Rear	13.6-26	13.6-26
R1 Agricultural - Front	9.5-16	9.5-16

Coolant Capacity	1.56 gal Cabin; 2.08 gal ROPS	6.2 qt
Crankcase Capacity	1.20 gal	4.8 qt
Fuel Tank Capacity	11.8 gal	11.8 gal
Front Axle Fluid Capacity	1.90 gal	6.8 qt
Transmission / Hydraulic System Capacity	10.04 gal	HST: 11.1 gal; Gear: 10.3 gal

Loader Lift Height	107.7 in (pivot pin)	106.6 in
Loader Breakout Force	3,660 lb	3,660 lb
Quick Attach Loader System	SSQA	BL200: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	2,701 lb	2,701 lb

Clutch	Not Published	HST: Not Applicable; Gear: Dry single plate
No. of Speeds	5045S: 16F/16R; 5045H: 4-range	HST: 4-Range; Gear: F16 x R16 (4-Range)
Transmission Type	Synchromesh / HST	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	16.0 mph	HST: 19.5 mph; Gear: 16 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock system

Brakes	Wet, Multi-disc	Wet, multi disc
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Suspension seat

Wheelbase	71.1 in.	71.1 in
Overall Width	64.9 in.	64.9 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	15.5 in
Height to Top of ROPS	97.0 in. Cabin; 98.4 in. ROPS	98.4 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	L: 128.7 in; R: 126.0 in
Overall Length with 3-Point Hitch	127.4 in	127.4 in
