Which has more horsepower, the Bad Boy Tractors 5045 or the TYM T4058PC?

The TYM T4058PC leads on engine hp at 58 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the TYM T4058PC?

The TYM T4058PC leads on pto hp at 48 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045.

Which is heavier, the Bad Boy Tractors 5045 or the TYM T4058PC?

The TYM T4058PC leads on weight at 6,251.5 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5045.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the TYM T4058PC?

The TYM T4058PC leads on loader lift at 3,437 lb lb, compared to 2,701 lb lb for the Bad Boy Tractors 5045.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the TYM T4058PC?

The TYM T4058PC leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045.

Bad Boy Tractors 5045 vs TYM T4058PC

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T4058PC leads 9 categories to 0. Machine pages: Bad Boy Tractors 5045 and TYM T4058PC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 5045	TYM T4058PC
Engine HP (hp)	48 hp	▲ 58 hp
PTO HP (hp)	38.4 hp	▲ 48 hp
Weight (lb)	4,349 lb	▲ 6,251.5 lb
Loader Lift (lb)	2,701 lb	▲ 3,437 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 3,748 lb
Lift Height (in)	107.7 in	▲ 117.5 in
Breakout Force (lbf)	3,660 lbf	▲ 4,742 lbf
Hydraulic Flow (gpm)	16.4 gpm	▲ 16.5 gpm
Travel Speed (mph)	16 mph	▲ 24 mph

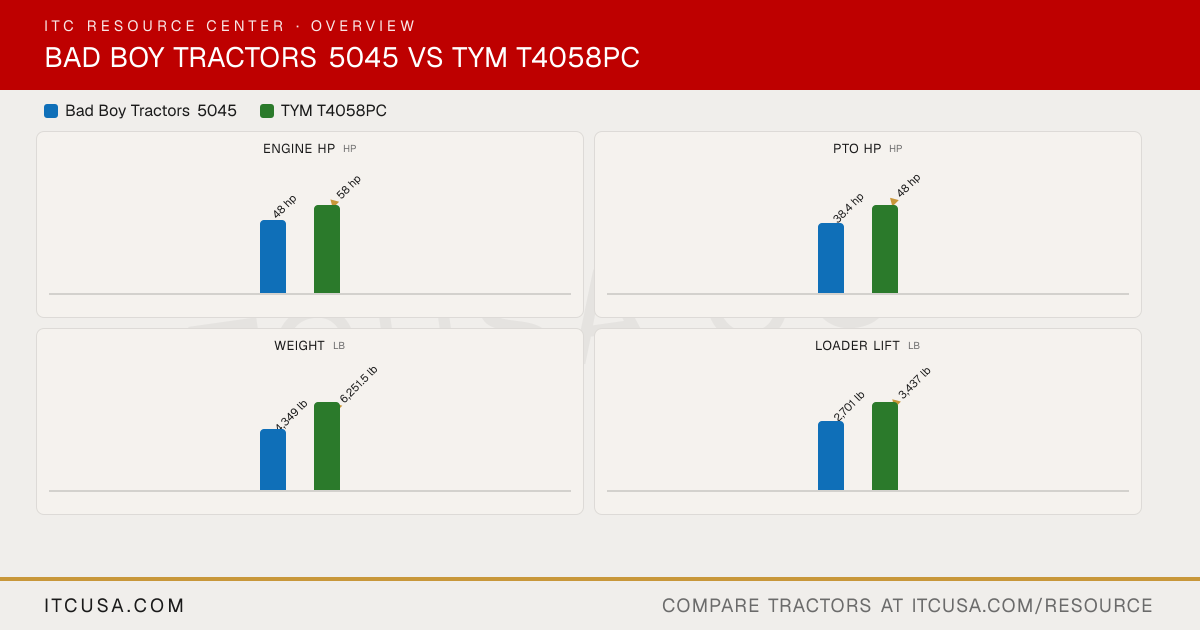

The headline numbers at a glance.

Bad Boy Tractors 5045TYM T4058PC

Engine HPhp

48 hp

▲58 hp

PTO HPhp

38.4 hp

▲48 hp

Weightlb

4,349 lb

▲6,251.5 lb

Loader Liftlb

2,701 lb

▲3,437 lb

3-Pt Lift (24 in)lb

2,425 lb

▲3,748 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	TYMT4058PC


PTO Power	38.4 hp	48 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry Element	Dry element
Engine Type	4 Cylinder Diesel	4-cylinder, turbocharged diesel
Fuel System	Not Published	IDI
Displacement	139.5 in³	139.6 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid Cooled	Not Published
Engine Manufacturer	A2300N3, A2300T11, A2300N2, A2300T3	TYM
Engine Power (Gross)	48 hp	58 hp
Engine Emissions Constraints	Tier 4	Tier 4

Tractor Weight (Base)	4,349 lbs Cabin; 3,831-3,836 lbs (1,738-3,836 lb) ROPS	—
Weight with ROPS and Loader	5045S: 3,831 lb (tractor only); 5045H: 3,836 lb (tractor only)	Not Applicable
Weight with Cab and Loader	Not Applicable	6,251.5 lb

Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Hydrostatic Power Steering	Single gear pump
Steering Flow	5.0 gpm	5.13 gpm
Implement Flow	5045S: 11.4 gpm; 5045H: 10.7 gpm	11.4 gpm
Total Hydraulic Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	16.5 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	16.5 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Loader: 6; Rear: 6

PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	3,306 lb	4,409 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category II
Hitch Lift Capacity (at 24”)	2,425 lb	3,748 lb

R3 Turf - Rear	Not Published	44x18.00-20
R3 Turf - Front	Not Published	29x12.5-15
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	16.9-24
R4 Industrial - Front	Not Published	10.5/80-18
R1 Agricultural - Rear	13.6-26	14.9-28
R1 Agricultural - Front	9.5-16	9.5-20

Coolant Capacity	1.56 gal Cabin; 2.08 gal ROPS	6.2 qt
Crankcase Capacity	1.20 gal	4.8 qt
Fuel Tank Capacity	11.8 gal	15.3 gal
Front Axle Fluid Capacity	1.90 gal	6.8 qt
Transmission / Hydraulic System Capacity	10.04 gal	11.62 gal

Loader Lift Height	107.7 in (pivot pin)	117.5 in
Loader Breakout Force	3,660 lb	4,742 lb
Quick Attach Loader System	SSQA	L4058PC: Quick attach mechanism
Loader Lift Capacity (Full Height)	2,701 lb	3,437 lb

Clutch	Not Published	Wet, multi-disc
No. of Speeds	5045S: 16F/16R; 5045H: 4-range	F12 x R12
Transmission Type	Synchromesh / HST	Power shuttle
Max Travel Speed (Forward)	16.0 mph	24.04 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Not Published

Brakes	Wet, Multi-disc	Wet, multi-disc
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Suspension seat

Wheelbase	71.1 in.	78.7 in
Overall Width	64.9 in.	68.9 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	18.1 in
Height to Top of ROPS	97.0 in. Cabin; 98.4 in. ROPS	Not Applicable
Height to Top of Cab Model	Not Applicable	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	L: 139.7 in; R: 141.9 in
Overall Length with 3-Point Hitch	127.4 in	141.5 in
