Bad Boy Tractors 5045 vs TYM T454C

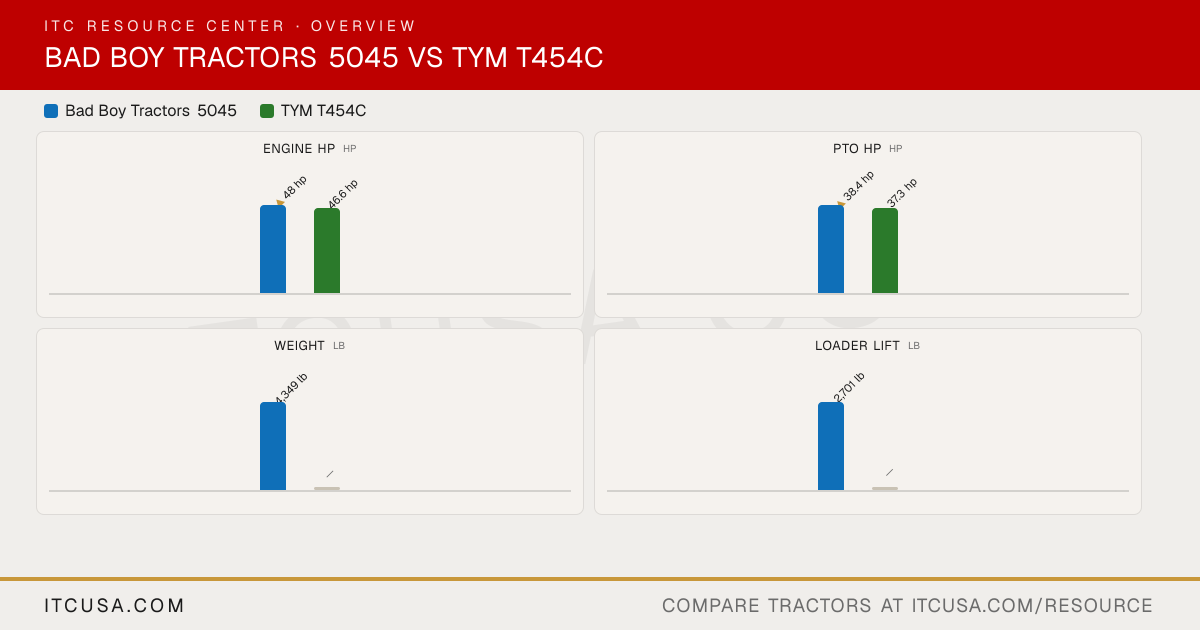

Across 9 measurable specs, the Bad Boy Tractors 5045 leads 5 categories to 4. Machine pages: Bad Boy Tractors 5045 and TYM T454C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	TYMT454C

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A2300N2	4TNV88CR
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	4-cylinder, naturally aspirated, liquid-cooled diesel
No. of Cylinders	4	4
Displacement	139.5 in³	133.6 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	48 hp	46 hp
PTO Power	38.4 hp	36.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dual dry
Fuel System	Not Published	CRDI
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	10.7 gpm	9.5 gpm
Steering Flow	5 gpm	4.6 gpm
Total Hydraulic Flow	15.7 gpm	14.1 gpm
Overall Hydraulic Pump Flow	15.7 gpm	14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 4 ports	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	17.0 gal
Coolant Capacity	2.08 gal	9 qt
Crankcase Capacity	1.20 gal	7.1 qt
Transmission / Hydraulic System Capacity	10.04 gal	9.2 gal
Front Axle Fluid Capacity	1.90 gal	10.5 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	3,314 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,945 lb
Lift Control Type	Position control	Position/Draft
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Synchro-shuttle
No. of Speeds	4 range (HST)	F16 x R16
Max Travel Speed (Forward)	19.5 mph	18.4 mph
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Dry single plate
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
Front Axle Type	Selectable 4WD	4WD, center-pivot reverse Elliot type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	64.9 in	63.8 in
Wheelbase	71.1 in	76.2 in
Ground Clearance	15.5 in	13.8 in
Min. Turn Radius without Brakes	9.18 ft (with brake applied)	150.4 in
Height to Top of ROPS	98.4 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	99.6 in
Overall Length	127.4 in (with 3-point hitch)	141.3 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,831 lb	4,233 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 12.4-28 rear (ag)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-16	Farm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural - Rear	12.4-28	Farm Specialist 13.6-26 NHS TL 6PR
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.50-15 NHS TL 4PR
R3 Turf - Rear	Not Published	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R4 Industrial - Front	Not Published	Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Rear	Not Published	Xtra Grip 17.5-24 NHS TL 6PR
▶Loader & Attachments
Quick Attach Loader System	SSQA	TX55: Quick attach mechanism
Loader Model	BBL500	TX55
Loader Lift Height	106.6 in	TX55: 109.1 in
Loader Lift Capacity (Full Height)	2,700 lb (at pivot pin)	TX55: 2,478 lb (at pivot pin)
Loader Breakout Force	3,660 lb	TX55: 4,938 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T454 T554 Rural King RK55 Brush Screen Insert $249.99

Find a Bad Boy dealer near you→Find a TYM dealer near you→

Bad Boy Tractors 5045 vs TYM T454C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 or the TYM T454C?

The Bad Boy Tractors 5045 leads on engine hp at 48 hp hp, compared to 46 hp hp for the TYM T454C.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the TYM T454C?

The Bad Boy Tractors 5045 leads on pto hp at 38.4 hp hp, compared to 36.7 hp hp for the TYM T454C.

Which is heavier, the Bad Boy Tractors 5045 or the TYM T454C?

The TYM T454C leads on weight at 4,233 lb lb, compared to 3,831 lb lb for the Bad Boy Tractors 5045.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the TYM T454C?

The Bad Boy Tractors 5045 leads on loader lift at 2,700 lb lb, compared to 2,478 lb lb for the TYM T454C.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the TYM T454C?

The TYM T454C leads on 3-pt lift (24 in) at 2,945 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045.
