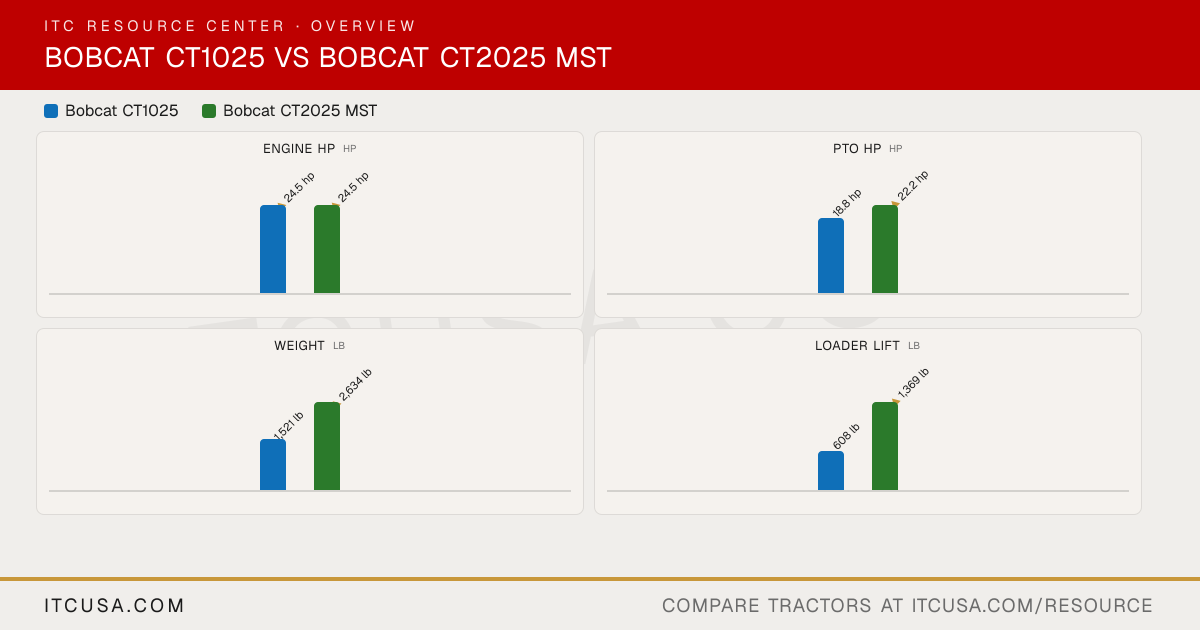

Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT1025
BobcatCT2025 MST
Engine Manufacturer
Daedong
Daedong
Engine Model
3C100LFH-U1
3A165LWM
Engine Type
Diesel
Diesel
No. of Cylinders
3
3
Displacement
61.5 in³
100 in³
Rated Engine Speed
3200 rpm
2400 rpm
Engine Power (Gross)
24.5 hp
24.5 hp
PTO Power
18.8 hp
22.2 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Water-cooled
Air Cleaner
Dry type, replaceable
Dry type, replaceable
Fuel System
Indirect injection (IDI)
Indirect injection (IDI)
Alternator
50 A, 12 V
75 A, 12 V
Pump Type
Not Published
Not Published
Implement Flow
Not Published
6.9 gpm
Steering Flow
Not Published
4.5 gpm
Total Hydraulic Flow
7.2 gpm
11.4 gpm
Overall Hydraulic Pump Flow
7.2 gpm
11.4 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
None (rear hydraulics optional)
None (rear hydraulics optional)
No. of Optional Remote Valves
1 pair
2 pairs
Fuel Tank Capacity
6.7 gal
9.0 gal
Coolant Capacity
Not Published
3.0 qt
Crankcase Capacity
4.0 qt
6.1 qt
Transmission / Hydraulic System Capacity
3.4 gal
5.8 gal
Front Axle Fluid Capacity
2.1 qt
6.3 qt
PTO Type
Independent
Live
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Standard: 2200 rpm
Optional: 1976 rpm
Category, 3-Point Hitch
Category 1 Limited
Category 1
Hitch Lift Capacity
1576 lb
2271 lb
Hitch Lift Capacity (at 24”)
700 lb
1631 lb
Lift Control Type
Hydraulic Position Control System
Hydraulic Position Control System
Transmission Type
2-Range HST
9F x 3R Manual
No. of Speeds
Infinite forward and reverse (2-range)
9 forward, 3 reverse
Max Travel Speed (Forward)
11.1 mph
9.2 mph
Max Travel Speed (Reverse)
7.6 mph
6 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Rear differential lock (standard)
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Wet multi-disc
Wet multi-disc
Seat Suspension & Adjustability
Adjustable seat (standard)
Adjustable seat (standard)
Front Axle Type
Four-wheel drive (standard)
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1433 lb
Overall Length with 3-Point Hitch
99.3 in
120.9 in
Overall Width
45.7 in
62.4 in
Wheelbase
55.1 in
65.7 in
Ground Clearance
6.3 in
11.7 in
Min. Turn Radius without Brakes
100.0 in (with brake applied)
96.5 in (with brake applied)
Height to Top of ROPS
87.6 in
92.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
1521 lb
2634 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
18x8.5-10
7-16
R1 Agricultural - Rear
26x12.00-12
11.4-24
R3 Turf - Front
18x8.5-10
27x8.5-15
R3 Turf - Rear
26x12.00-12
41x14-20
R4 Industrial - Front
18x8.5-10
25x8.5-14
R4 Industrial - Rear
26x12.00-12
15-19.5
Quick Attach Loader System
Standard quick attach mounting system
Standard quick attach mounting system
Loader Model
FL6
FL7
Loader Lift Height
71.9 in
95.1 in
Loader Lift Capacity (Full Height)
608 lb
1369 lb
Loader Breakout Force
1554 lb
2575 lb
Warranty Length & Coverage
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
