Which has more horsepower, the Bobcat CT1025 or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on engine hp at 24.7 hp hp, compared to 24.5 hp hp for the Bobcat CT1025.

Which has more PTO horsepower, the Bobcat CT1025 or the LS Tractor XJ2025H?

The Bobcat CT1025 leads on pto hp at 18.8 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.

Which has more loader lift capacity, the Bobcat CT1025 or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 608 lb lb for the Bobcat CT1025.

Which has more three-point hitch lift capacity, the Bobcat CT1025 or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 700 lb lb for the Bobcat CT1025.

Bobcat CT1025 vs LS Tractor XJ2025H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor XJ2025H leads 6 categories to 1. Machine pages: Bobcat CT1025 and LS Tractor XJ2025H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat CT1025	LS Tractor XJ2025H
Engine HP (hp)	24.5 hp	▲ 24.7 hp
PTO HP (hp)	▲ 18.8 hp	18.5 hp
Weight (lb)	2,127 lb	—
Loader Lift (lb)	608 lb	▲ 1,276 lb
3-Pt Lift (24 in) (lb)	700 lb	▲ 1,058 lb
Lift Height (in)	71.9 in	▲ 85.7 in
Breakout Force (lbf)	1,554 lbf	▲ 1,687 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 8.5 gpm
Travel Speed (mph)	11.1 mph	—

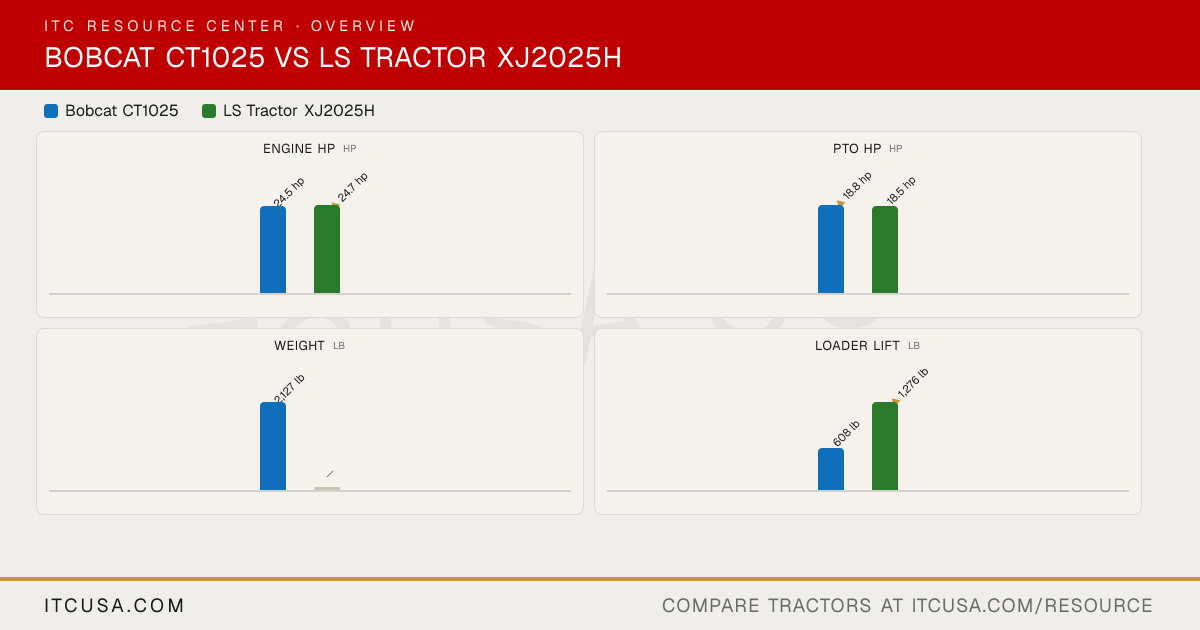

The headline numbers at a glance.

Bobcat CT1025LS Tractor XJ2025H

Engine HPhp

24.5 hp

▲24.7 hp

PTO HPhp

▲18.8 hp

18.5 hp

Weightlb

2,127 lb

—

Loader Liftlb

608 lb

▲1,276 lb

3-Pt Lift (24 in)lb

700 lb

▲1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1025	LS TractorXJ2025H


PTO Power	18.8 hp	18.5 hp
Alternator	alternator	50 A, 12 V
Air Cleaner	Dry type, replaceable	Dry
Engine Type	Diesel	3-cylinder, Indirect-injection (swirl chamber), Water-cooled
Fuel System	Diesel, Common Rail Direct Injection (CRDI)	Indirect injection (in-line pump)
Displacement	69.01 in³	80.4 in³
Engine Model	Shibaura 0.3 gal 3-cyl diesel	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	water cooled	Water-cooled
Engine Manufacturer	Shibaura	Mitsubishi
Engine Power (Gross)	24.5 hp	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	2,127 LB Approximate Operating Weight	Not Published
Weight with Cab and Loader	1652.00 KG	Not Published

Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Gear	Transmission drive pump
Steering Flow	16.90	2.6 gpm
Implement Flow	26.00	5.9 gpm
Total Hydraulic Flow	6.5 gpm	8.5 gpm
Hydraulic System Type	Open Center	Not Published
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	7.2 gpm	8.5 gpm
No. of Optional Remote Valves	1 Pair	1 pair (2 outlets; optional)
No. of Standard Remote Valves	Std. (4 port)	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Electro-hydraulic rear PTO / mid-PTO
Lift Control Type	Hydraulic Position Control System	Position control
Hitch Lift Capacity	700 lb.	1,433 lb
Mid-PTO Availability	Standard: 2200 rpm	Standard (2000 rpm)
Category, 3-Point Hitch	Category 1 Limited	Category I
Hitch Lift Capacity (at 24”)	700 lb	1,058 lb

R3 Turf - Rear	41x14.0-20 R3	320/65-16.5
R3 Turf - Front	27x8.5-15 R3	23X8.50-12
Tire Size & Options	Agricultural, Turf, Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5 R4	305/70-16.5 (6PR)
R4 Industrial - Front	25x8.5-14 R4	23X8.50-12 (4PR)
R1 Agricultural - Rear	26x12.00-12	255/75-15.3
R1 Agricultural - Front	18x8.5-10	23X10.50-12

Coolant Capacity	0.9 gal	1.0 gal
Crankcase Capacity	2 gal	1.1 gal
Fuel Tank Capacity	7.1 gal.	6.6 gal
Front Axle Fluid Capacity	1.6 gal	0.8 gal
Transmission / Hydraulic System Capacity	5.8 gal	5.3 gal

Loader Model	FL6	—
Loader Lift Height	71.9 in.	85.7 in
Loader Breakout Force	1554 lb.	1,687 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	LL2102: Quick-attach front end loader
Loader Lift Capacity (Full Height)	608 lb.	1,276 lb

Clutch	Clutch-free (hydrostatic)	Not Applicable
No. of Speeds	2-Range	2 ranges
Transmission Type	Hydrostatic	Hydrostatic Drive
Max Travel Speed (Forward)	11.1 mph (17.8 km/hr.)	Not Published
Max Travel Speed (Reverse)	7.6 mph (12.2 km/hr.)	Not Published
Differential Lock & Limited Slip Options	Std	Mechanical differential lock (pedal)

Brakes	Wet Multi-disc	Wet, multi-disc
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Frame Type	4x4 MFWD 4WD	Not Published
Front Axle Type	MFWD	Front wheel mechanical assist (4WD)
Drawbar Capacity	650.00 KG	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed
Front Axle Rating	Manual(MEC)	Not Published
Seat Suspension & Adjustability	Std	Not Published

Wheelbase	55.1 in.	59 in
Overall Width	46.0 in.	44.9 in
Ground Clearance	6.3 in.	Not Published
Height to Top of ROPS	87.56 in	84.5 in
Height to Top of Cab Model	Not Published	Not Published
Height to Top of ROPS (folded)	2520.00 MM	Not Published
Min. Turn Radius without Brakes	8.3 ft. (2.54 m)	Not Published
Overall Length with 3-Point Hitch	99.3 in.	103 in
