Which has more horsepower, the Bobcat CT1025 or the Massey Ferguson MF 1520?

The Bobcat CT1025 leads on engine hp at 24.5 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1520.

Which has more three-point hitch lift capacity, the Bobcat CT1025 or the Massey Ferguson MF 1520?

The Massey Ferguson MF 1520 leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 700 lb lb for the Bobcat CT1025.

Bobcat CT1025 vs Massey Ferguson MF 1520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Massey Ferguson MF 1520 leads 2 categories to 1. Machine pages: Bobcat CT1025 and Massey Ferguson MF 1520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat CT1025	Massey Ferguson MF 1520
Engine HP (hp)	▲ 24.5 hp	20 hp
PTO HP (hp)	18.8 hp	—
Weight (lb)	2,127 lb	—
Loader Lift (lb)	608 lb	—
3-Pt Lift (24 in) (lb)	700 lb	▲ 1,323 lb
Lift Height (in)	71.9 in	—
Breakout Force (lbf)	1,554 lbf	—
Hydraulic Flow (gpm)	6.5 gpm	▲ 8.7 gpm
Travel Speed (mph)	11.1 mph	—

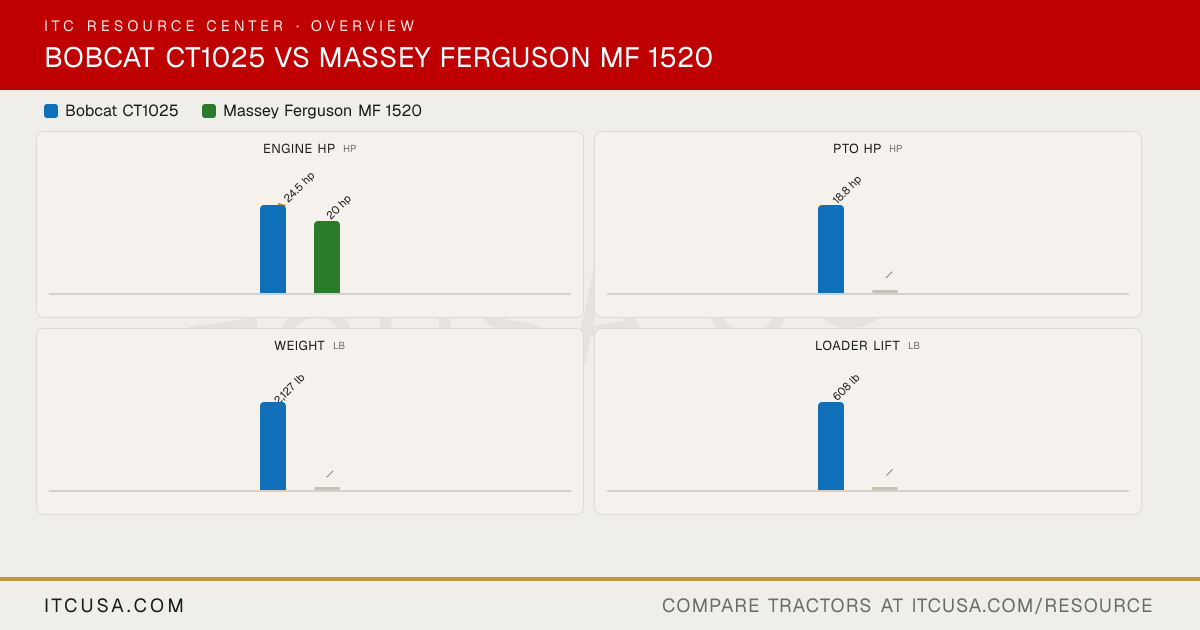

The headline numbers at a glance.

Bobcat CT1025Massey Ferguson MF 1520

Engine HPhp

▲24.5 hp

20 hp

PTO HPhp

18.8 hp

—

Weightlb

2,127 lb

—

Loader Liftlb

608 lb

—

3-Pt Lift (24 in)lb

700 lb

▲1,323 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1025	Massey FergusonMF 1520


PTO Power	18.8 hp	Not Published
Alternator	alternator	Not Published
Air Cleaner	Dry type, replaceable	Not Published
Engine Type	Diesel	3-cylinder diesel
Fuel System	Diesel, Common Rail Direct Injection (CRDI)	Not Published
Displacement	69.01 in³	68.5 in³
Engine Model	Shibaura 0.3 gal 3-cyl diesel	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	water cooled	Not Published
Engine Manufacturer	Shibaura	Massey Ferguson (AGCO)
Engine Power (Gross)	24.5 hp	20 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	2,127 LB Approximate Operating Weight	Not Published
Weight with Cab and Loader	1652.00 KG	Not Published

Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	Not Published

Pump Type	Gear	Not Published
Steering Flow	16.90	3.2 gpm
Implement Flow	26.00	5.5 gpm
Total Hydraulic Flow	6.5 gpm	8.7 gpm
Hydraulic System Type	Open Center	Not Published
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	7.2 gpm	8.7 gpm
No. of Optional Remote Valves	1 Pair	Not Published
No. of Standard Remote Valves	Std. (4 port)	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Sliding gear
Lift Control Type	Hydraulic Position Control System	Not Published
Hitch Lift Capacity	700 lb.	1,323 lb
Mid-PTO Availability	Standard: 2200 rpm	Optional
Category, 3-Point Hitch	Category 1 Limited	Category I
Hitch Lift Capacity (at 24”)	700 lb	Not Published

R3 Turf - Rear	41x14.0-20 R3	315X75D-15
R3 Turf - Front	27x8.5-15 R3	24X8.5-12
Tire Size & Options	Agricultural, Turf, Industrial	R1 Agricultural, R3 Turf
R4 Industrial - Rear	15-19.5 R4	Not Applicable
R4 Industrial - Front	25x8.5-14 R4	Not Applicable
R1 Agricultural - Rear	26x12.00-12	9.5-16
R1 Agricultural - Front	18x8.5-10	6.0-12

Coolant Capacity	0.9 gal	Not Published
Crankcase Capacity	2 gal	Not Published
Fuel Tank Capacity	7.1 gal.	7.4 gal
Front Axle Fluid Capacity	1.6 gal	Not Published
Transmission / Hydraulic System Capacity	5.8 gal	Not Published

Loader Model	FL6	—
Loader Lift Height	71.9 in.	Not Published
Loader Breakout Force	1554 lb.	Not Published
Quick Attach Loader System	Standard Quick Attach Mounting System	Not Published
Loader Lift Capacity (Full Height)	608 lb.	Not Published

Clutch	Clutch-free (hydrostatic)	Not Published
No. of Speeds	2-Range	8F / 8R
Transmission Type	Hydrostatic	Mechanical
Max Travel Speed (Forward)	11.1 mph (17.8 km/hr.)	Not Published
Max Travel Speed (Reverse)	7.6 mph (12.2 km/hr.)	Not Published
Differential Lock & Limited Slip Options	Std	Rear differential lock

Brakes	Wet Multi-disc	Not Published
Steering	Hydrostatic Power Steering	Not Published
Frame Type	4x4 MFWD 4WD	Not Published
Front Axle Type	MFWD	Not Published
Drawbar Capacity	650.00 KG	Not Published
Front Axle Rating	Manual(MEC)	Not Published
Seat Suspension & Adjustability	Std	Not Published

Wheelbase	55.1 in.	61.4 in
Overall Width	46.0 in.	43.3 in
Ground Clearance	6.3 in.	9.6 in
Height to Top of ROPS	87.56 in	79.1 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	2520.00 MM	Not Published
Min. Turn Radius without Brakes	8.3 ft. (2.54 m)	Not Published
Overall Length with 3-Point Hitch	99.3 in.	112.8 in
