Bobcat CT1025 vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 25S leads 6 categories to 3. Machine pages: Bobcat CT1025 and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat CT1025	New Holland Workmaster 25S
Engine HP (hp)	24.5 hp	▲ 24.7 hp
PTO HP (hp)	▲ 18.8 hp	17.2 hp
Weight (lb)	▲ 2,127 lb	1,444 lb
Loader Lift (lb)	608 lb	▲ 1,005 lb
3-Pt Lift (24 in) (lb)	700 lb	▲ 728 lb
Lift Height (in)	71.9 in	▲ 72 in
Breakout Force (lbf)	1,554 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 6.7 gpm
Travel Speed (mph)	▲ 11.1 mph	9.1 mph

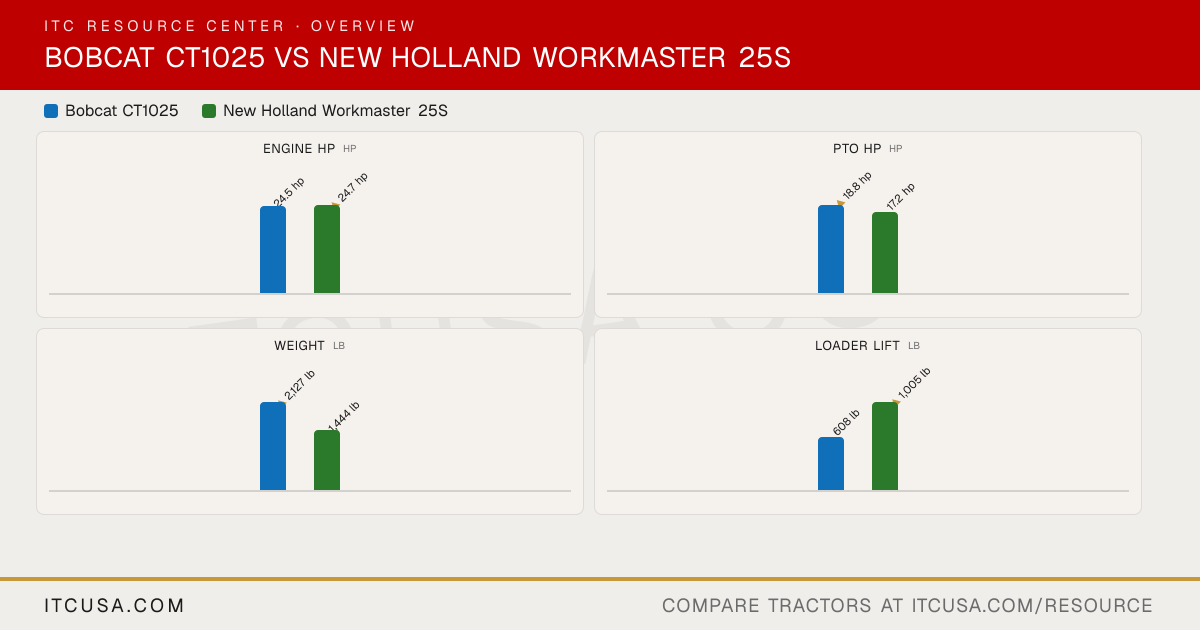

The headline numbers at a glance.

Bobcat CT1025New Holland Workmaster 25S

Engine HPhp

24.5 hp

▲24.7 hp

PTO HPhp

▲18.8 hp

17.2 hp

Weightlb

▲2,127 lb

1,444 lb

Loader Liftlb

608 lb

▲1,005 lb

3-Pt Lift (24 in)lb

700 lb

▲728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1025	New HollandWorkmaster 25S


PTO Power	18.8 hp	17.2 hp
Alternator	alternator	40 A, 12 V
Air Cleaner	Dry type, replaceable	Not Published
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel, Common Rail Direct Injection (CRDI)	In-line injection pump
Displacement	69.01 in³	76.9 in³
Engine Model	Shibaura 0.3 gal 3-cyl diesel	n/a
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3000 rpm
Cooling System Type	water cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	Shibaura	Yanmar
Engine Power (Gross)	24.5 hp	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	2,127 LB Approximate Operating Weight	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	1652.00 KG	1,805 lb (Cab tractor only)

Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Gear
Steering Flow	16.90	2.1 gpm
Implement Flow	26.00	4.6 gpm
Total Hydraulic Flow	6.5 gpm	6.7 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	7.2 gpm	6.7 gpm
No. of Optional Remote Valves	1 Pair	1
No. of Standard Remote Valves	Std. (4 port)	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent, electro-hydraulic engagement
Lift Control Type	Hydraulic Position Control System	Lift-hold-lower
Hitch Lift Capacity	700 lb.	992 lb at ball ends
Mid-PTO Availability	Standard: 2200 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category 1 Limited	Category I
Hitch Lift Capacity (at 24”)	700 lb	728 lb

R3 Turf - Rear	41x14.0-20 R3	26X12.0-12
R3 Turf - Front	27x8.5-15 R3	18X8.50-10
Tire Size & Options	Agricultural, Turf, Industrial	R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5 R4	26X12.0-12
R4 Industrial - Front	25x8.5-14 R4	18X8.50-10
R1 Agricultural - Rear	26x12.00-12	Not Applicable
R1 Agricultural - Front	18x8.5-10	Not Applicable

Coolant Capacity	0.9 gal	3.5 qt
Crankcase Capacity	2 gal	3.0 qt
Fuel Tank Capacity	7.1 gal.	6.6 gal
Front Axle Fluid Capacity	1.6 gal	0.5 gal
Transmission / Hydraulic System Capacity	5.8 gal	3.0 gal

Loader Model	FL6	n/a
Loader Lift Height	71.9 in.	72 in
Loader Breakout Force	1554 lb.	2,078 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	608 lb.	1,005 lb

Clutch	Clutch-free (hydrostatic)	Not Applicable
No. of Speeds	2-Range	Infinite (2-range)
Transmission Type	Hydrostatic	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	11.1 mph (17.8 km/hr.)	9.1 mph
Max Travel Speed (Reverse)	7.6 mph (12.2 km/hr.)	5.5 mph
Differential Lock & Limited Slip Options	Std	Mechanical, foot-operated rear diff lock

Brakes	Wet Multi-disc	Wet, multi-disc
Steering	Hydrostatic Power Steering	Central support, bevel gear type
Frame Type	4x4 MFWD 4WD	Not Published
Front Axle Type	MFWD	4WD (FWD)
Drawbar Capacity	650.00 KG	Not Published
Front Axle Rating	Manual(MEC)	Not Published
Seat Suspension & Adjustability	Std	Not Published

Wheelbase	55.1 in.	56.1 in
Overall Width	46.0 in.	46.7 in
Ground Clearance	6.3 in.	12 in
Height to Top of ROPS	87.56 in	90 in
Height to Top of Cab Model	Not Published	87.4 in
Height to Top of ROPS (folded)	2520.00 MM	64 in
Min. Turn Radius without Brakes	8.3 ft. (2.54 m)	94 in
Overall Length with 3-Point Hitch	99.3 in.	97.4 in

Find a dealer near you Find a New Holland dealer near you

Bobcat CT1025 vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the Bobcat CT1025 or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 24.5 hp hp for the Bobcat CT1025.
Which has more PTO horsepower, the Bobcat CT1025 or the New Holland Workmaster 25S?: The Bobcat CT1025 leads on pto hp at 18.8 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which is heavier, the Bobcat CT1025 or the New Holland Workmaster 25S?: The Bobcat CT1025 leads on weight at 2,127 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.
Which has more loader lift capacity, the Bobcat CT1025 or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on loader lift at 1,005 lb lb, compared to 608 lb lb for the Bobcat CT1025.
Which has more three-point hitch lift capacity, the Bobcat CT1025 or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on 3-pt lift (24 in) at 728 lb lb, compared to 700 lb lb for the Bobcat CT1025.

More Head-to-Heads

Category Verdict

Spec	Bobcat CT1025	New Holland Workmaster 25S
Engine HP (hp)	24.5 hp	▲ 24.7 hp
PTO HP (hp)	▲ 18.8 hp	17.2 hp
Weight (lb)	▲ 2,127 lb	1,444 lb
Loader Lift (lb)	608 lb	▲ 1,005 lb
3-Pt Lift (24 in) (lb)	700 lb	▲ 728 lb
Lift Height (in)	71.9 in	▲ 72 in
Breakout Force (lbf)	1,554 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 6.7 gpm
Travel Speed (mph)	▲ 11.1 mph	9.1 mph

The headline numbers at a glance.

Bobcat CT1025New Holland Workmaster 25S

Engine HPhp

24.5 hp

▲24.7 hp

PTO HPhp

▲18.8 hp

17.2 hp

Weightlb

▲2,127 lb

1,444 lb

Loader Liftlb

608 lb

▲1,005 lb

3-Pt Lift (24 in)lb

700 lb

▲728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1025	New HollandWorkmaster 25S


PTO Power	18.8 hp	17.2 hp
Alternator	alternator	40 A, 12 V
Air Cleaner	Dry type, replaceable	Not Published
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel, Common Rail Direct Injection (CRDI)	In-line injection pump
Displacement	69.01 in³	76.9 in³
Engine Model	Shibaura 0.3 gal 3-cyl diesel	n/a
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3000 rpm
Cooling System Type	water cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	Shibaura	Yanmar
Engine Power (Gross)	24.5 hp	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	2,127 LB Approximate Operating Weight	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	1652.00 KG	1,805 lb (Cab tractor only)

Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Gear
Steering Flow	16.90	2.1 gpm
Implement Flow	26.00	4.6 gpm
Total Hydraulic Flow	6.5 gpm	6.7 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	7.2 gpm	6.7 gpm
No. of Optional Remote Valves	1 Pair	1
No. of Standard Remote Valves	Std. (4 port)	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent, electro-hydraulic engagement
Lift Control Type	Hydraulic Position Control System	Lift-hold-lower
Hitch Lift Capacity	700 lb.	992 lb at ball ends
Mid-PTO Availability	Standard: 2200 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category 1 Limited	Category I
Hitch Lift Capacity (at 24”)	700 lb	728 lb

R3 Turf - Rear	41x14.0-20 R3	26X12.0-12
R3 Turf - Front	27x8.5-15 R3	18X8.50-10
Tire Size & Options	Agricultural, Turf, Industrial	R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5 R4	26X12.0-12
R4 Industrial - Front	25x8.5-14 R4	18X8.50-10
R1 Agricultural - Rear	26x12.00-12	Not Applicable
R1 Agricultural - Front	18x8.5-10	Not Applicable

Coolant Capacity	0.9 gal	3.5 qt
Crankcase Capacity	2 gal	3.0 qt
Fuel Tank Capacity	7.1 gal.	6.6 gal
Front Axle Fluid Capacity	1.6 gal	0.5 gal
Transmission / Hydraulic System Capacity	5.8 gal	3.0 gal

Loader Model	FL6	n/a
Loader Lift Height	71.9 in.	72 in
Loader Breakout Force	1554 lb.	2,078 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	608 lb.	1,005 lb

Clutch	Clutch-free (hydrostatic)	Not Applicable
No. of Speeds	2-Range	Infinite (2-range)
Transmission Type	Hydrostatic	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	11.1 mph (17.8 km/hr.)	9.1 mph
Max Travel Speed (Reverse)	7.6 mph (12.2 km/hr.)	5.5 mph
Differential Lock & Limited Slip Options	Std	Mechanical, foot-operated rear diff lock

Brakes	Wet Multi-disc	Wet, multi-disc
Steering	Hydrostatic Power Steering	Central support, bevel gear type
Frame Type	4x4 MFWD 4WD	Not Published
Front Axle Type	MFWD	4WD (FWD)
Drawbar Capacity	650.00 KG	Not Published
Front Axle Rating	Manual(MEC)	Not Published
Seat Suspension & Adjustability	Std	Not Published

Wheelbase	55.1 in.	56.1 in
Overall Width	46.0 in.	46.7 in
Ground Clearance	6.3 in.	12 in
Height to Top of ROPS	87.56 in	90 in
Height to Top of Cab Model	Not Published	87.4 in
Height to Top of ROPS (folded)	2520.00 MM	64 in
Min. Turn Radius without Brakes	8.3 ft. (2.54 m)	94 in
Overall Length with 3-Point Hitch	99.3 in.	97.4 in

Find a dealer near you Find a New Holland dealer near you

Bobcat CT1025 vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the Bobcat CT1025 or the New Holland Workmaster 25S?

The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 24.5 hp hp for the Bobcat CT1025.

Which has more PTO horsepower, the Bobcat CT1025 or the New Holland Workmaster 25S?

The Bobcat CT1025 leads on pto hp at 18.8 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the Bobcat CT1025 or the New Holland Workmaster 25S?

The Bobcat CT1025 leads on weight at 2,127 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the Bobcat CT1025 or the New Holland Workmaster 25S?

The New Holland Workmaster 25S leads on loader lift at 1,005 lb lb, compared to 608 lb lb for the Bobcat CT1025.

Which has more three-point hitch lift capacity, the Bobcat CT1025 or the New Holland Workmaster 25S?

The New Holland Workmaster 25S leads on 3-pt lift (24 in) at 728 lb lb, compared to 700 lb lb for the Bobcat CT1025.
