Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bobcat CT2035, 4 to the Mahindra 1640 Shuttle. Machine pages: Bobcat CT2035 and Mahindra 1640 Shuttle .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bobcat CT2035 Mahindra 1640 Shuttle Engine HP (hp) 34.9 hp ▲ 38.7 hpPTO HP (hp) 29.4 hp ▲ 29.9 hpWeight (lb) — 3,809 lb Loader Lift (lb) 1,389 lb ▲ 1,830 lb3-Pt Lift (24 in) (lb) 1,631 lb ▲ 1,720 lbLift Height (in) ▲ 99.6 in92 in Breakout Force (lbf) ▲ 3,285 lbf2,777 lbf Hydraulic Flow (gpm) ▲ 11.4 gpm11.1 gpm Travel Speed (mph) ▲ 14.4 mph13.6 mph

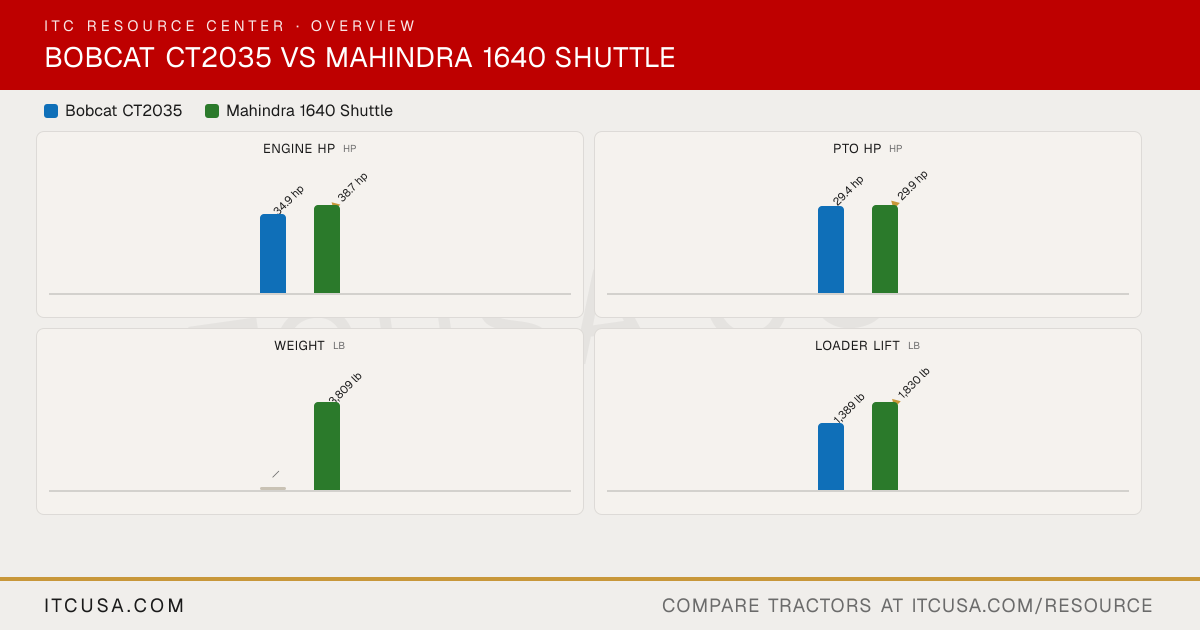

Overview Loader Work PTO Work
The headline numbers at a glance.
Bobcat CT2035 Mahindra 1640 Shuttle
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bobcat CT2035 Mahindra 1640 Shuttle
▶ EnginePTO Power 29.4 hp 29.9 hp Alternator alternator 90 A, 12 V Air Cleaner Dry type, replaceable Not Published Engine Type Diesel Four-stroke, Naturally Aspirated, Direct Injection, Water-Cooled Diesel Fuel System Common Rail Direct Injection (CRDI) Direct Injection Displacement 111.4 in³ 166.7 in³ Engine Model Daedong 0.5 gal 3-cyl diesel — No. of Cylinders 3 4 Rated Engine Speed 2600 rpm 2400 rpm Cooling System Type Water cooled Water-cooled Engine Manufacturer Daedong Mahindra Engine Power (Gross) 34.9 hp 38.7 hp @ 400 rpm Engine Emissions Constraints Stage V DOC / No DPF ▶ WeightWeight with ROPS and Loader 1410.00 KG 3809 lb Weight with Cab and Loader NOT FOUND Not Applicable ▶ WarrantyWarranty Length & Coverage 24 months or 1,500 hours (whichever occurs first) 7-Year Limited Powertrain Warranty ▶ HydraulicsPump Type 26.00 Not Published Steering Flow 4.5 gpm 3.4 gpm Implement Flow 11.34 gpm 42.9 lpm 7.7 gpm Total Hydraulic Flow 11.4 gpm 11.1 gpm Hydraulic System Type Open Center Open Center Rear Remote Hydraulic Flow 26.00 Not Published Overall Hydraulic Pump Flow 11.4 gpm 11.1 gpm No. of Optional Remote Valves NOT FOUND 1 No. of Standard Remote Valves Std. (2 port) Not Published ▶ PTO & HitchPTO Rear 540 rpm 540 rpm @ 2376 rpm PTO Type Live Independent Lift Control Type Hydraulic Position Control System Position Control Hitch Lift Capacity 1631 lb. 2646 lb Mid-PTO Availability Optional: 1988 rpm Optional; 2000 @ 2526 rpm Category, 3-Point Hitch Category 1 CAT I with Telescoping Stabilizers & Flex Links Hitch Lift Capacity (at 24”) 1,631 lb 1720 lb ▶ Tire OptionsR3 Turf - Rear 41x14.0-20 R3 41X14-20 R3 Turf - Front 27x8.5-15 R3 27X10.5-15 Tire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agriculture, R3 Turf, R4 Industrial R4 Industrial - Rear 15-19.5 R4 43X16-20 R4 Industrial - Front 25x8.5-14 R4 28X8.5-15 R1 Agricultural - Rear 11.2-24 11.2X24 R1 Agricultural - Front 7-16 7X16 ▶ Fluid CapacityCoolant Capacity 0.9 gal Not Published Crankcase Capacity 2 gal Not Published Fuel Tank Capacity 9.0 gal. 7.7 gal Front Axle Fluid Capacity 1.6 gal Not Published Transmission / Hydraulic System Capacity 5.8 gal Not Published ▶ Loader & AttachmentsLoader Model FL8 — Loader Lift Height 99.6 in. 92 in Loader Breakout Force 3285 lb. 2777 lb Quick Attach Loader System Standard Quick Attach Mounting System 433.2 gal: Front loader with skid-steer couplers for superfast hookups. Loader Lift Capacity (Full Height) 1389 lb. 1830 lb ▶ Transmission & DrivetrainClutch Four-wheel drive (Std) Dry-Single No. of Speeds 9-speed 8F / 8R Transmission Type 3-Range HST / 9F x 3R Manual Constant mesh on gearshift and synchromesh on F-R shuttle Max Travel Speed (Forward) 14.4 mph (23.1 km/hr.) [HST] / 14.1 mph (22.7 km/hr.) [MST] 13.6 mph Max Travel Speed (Reverse) 12.9 mph (20.8 km/hr.) [HST] / 9.3 mph (14.9 km/hr.) [MST] Not Published Differential Lock & Limited Slip Options Std Not Published ▶ Chassis, Steering & ControlsBrakes Wet Multi-disc Wet Disc Steering Hydrostatic Power Steering Hydrostatic Power Steering Frame Type Hydrostatic power steering Not Published Front Axle Type Not Published Not Published Drawbar Capacity 650.00 KG Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Vinyl Suspension Seat, w/retractable seat belt Not Published ▶ Dimensions & ManeuverabilityWheelbase 65.7 in. 76.9 in Overall Width 63.4 in. 62.0 in Ground Clearance 11.5 in. 12.8 in Height to Top of ROPS 91.5 in. 91.5 in Height to Top of Cab Model Not Published Not Applicable Height to Top of ROPS (folded) Rear folding ROPS yes Not Published Min. Turn Radius without Brakes 96.5 in. Not Published Overall Length with 3-Point Hitch 120.9 in. 127.8 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bobcat CT2035 vs Mahindra 1640 Shuttle: Quick Answers
Which has more horsepower, the Bobcat CT2035 or the Mahindra 1640 Shuttle? The Mahindra 1640 Shuttle leads on engine hp at 38.7 hp hp, compared to 34.9 hp hp for the Bobcat CT2035.
Which has more PTO horsepower, the Bobcat CT2035 or the Mahindra 1640 Shuttle? The Mahindra 1640 Shuttle leads on pto hp at 29.9 hp hp, compared to 29.4 hp hp for the Bobcat CT2035.
Which has more loader lift capacity, the Bobcat CT2035 or the Mahindra 1640 Shuttle? The Mahindra 1640 Shuttle leads on loader lift at 1,830 lb lb, compared to 1,389 lb lb for the Bobcat CT2035.
Which has more three-point hitch lift capacity, the Bobcat CT2035 or the Mahindra 1640 Shuttle? The Mahindra 1640 Shuttle leads on 3-pt lift (24 in) at 1,720 lb lb, compared to 1,631 lb lb for the Bobcat CT2035. More Head-to-Heads
