Bobcat CT2040 vs Case IH Farmall Compact 35A

Across 7 measurable specs, the Bobcat CT2040 leads 6 categories to 1. Machine pages: Bobcat CT2040 and Case IH Farmall Compact 35A.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

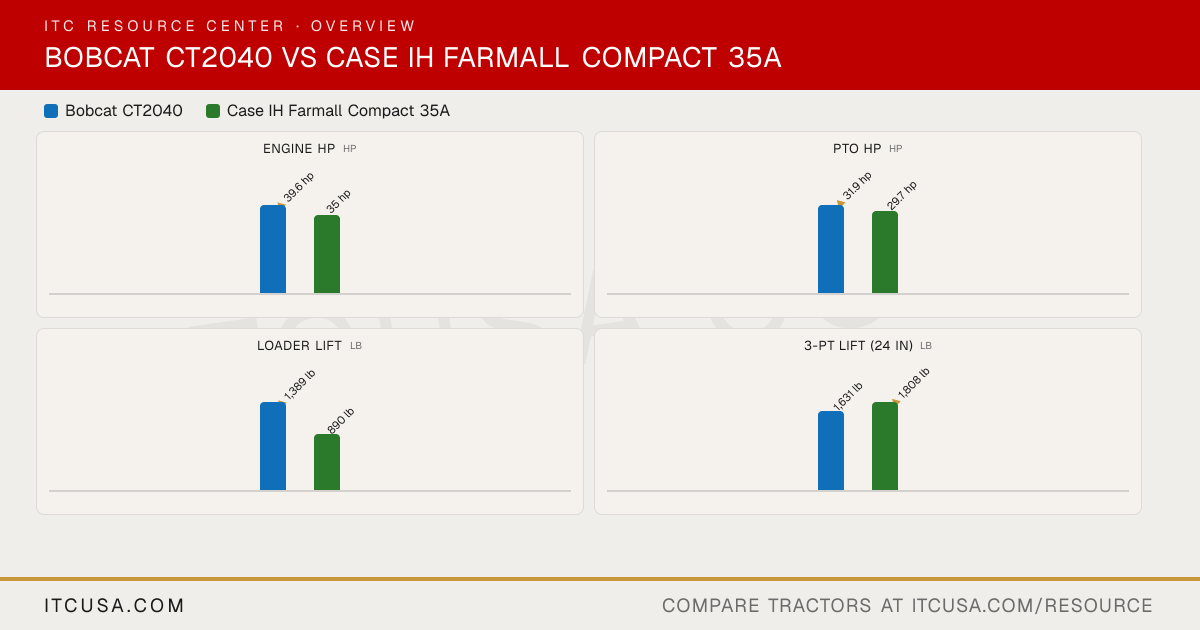

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT2040	Case IHFarmall Compact 35A

▶Engine
PTO Power	31.9 hp	29.7 hp
Alternator	alternator	Not Published
Air Cleaner	NOT FOUND — no source reviewed explicitly states an air cleaner type for the CT2040	Not Published
Engine Type	Diesel	Diesel, turbocharged
Fuel System	Common rail direct injection	Not Published
Displacement	111.4 in³	115.9 in³
Engine Model	Daedong 0.5 gal 3-cyl diesel	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	liquid-cooling	Not Published
Engine Manufacturer	Daedong	Not Published
Engine Power (Gross)	39.6 hp	35 hp
Engine Emissions Constraints	Stage V	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	6-year extended warranty: 2 years bumper-to-bumper + 4 years powertrain (Compact Farmall A “Series II”)
▶Hydraulics
Pump Type	Gear	Not Published
Steering Flow	4.5 gpm	Not Published
Implement Flow	11.7 gpm 44.3 lpm	8.2 gpm
Total Hydraulic Flow	11.4 gpm	Not Published
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Optional	Not Published
Overall Hydraulic Pump Flow	11.4 gpm	Not Published
No. of Optional Remote Valves	NOT FOUND	1
No. of Standard Remote Valves	1/2	0
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Live	Rear independent 540 rpm PTO with electro-hydraulic engagement (standard)
Lift Control Type	Hydraulic Position Control System	Mechanical Draft Control (MDC)
Hitch Lift Capacity	1631 lb.	1,808 lb @ 24 in behind pin
Mid-PTO Availability	Optional: 1988 rpm	Optional mid-PTO (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity (at 24”)	1,631 lb	1,808 lb @ 24 in behind pin
▶Tire Options
R3 Turf - Rear	41 x 14-20/4	Not Published
R3 Turf - Front	28 x 8.5-15/6	Not Published
Tire Size & Options	Front AG. (TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15) | Rear AG. (TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)	Not Published
R4 Industrial - Rear	15-19.5	Not Published
R4 Industrial - Front	27X8.5-15	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R1 Agricultural - Front	7-16	Not Published
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	6.4 qts	Not Published
Fuel Tank Capacity	9.0 gal.	7.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
▶Loader & Attachments
Loader Model	FL8	—
Loader Lift Height	99.6 in.	98 in
Loader Breakout Force	3285 lb.	1,900 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	L340A
Loader Lift Capacity (Full Height)	1389 lb.	890 lb
▶Transmission & Drivetrain
Clutch	Not Published	Dry clutch (mechanical shuttle)
No. of Speeds	9-speed	12F/12R (mechanical shuttle); optional 3-range hydrostatic
Transmission Type	3-Range HST	12x12 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic
Max Travel Speed (Forward)	14.4 mph (23.1 km/hr.)	Not Published
Max Travel Speed (Reverse)	12.9 mph (20.8 km/hr.)	Not Published
Differential Lock & Limited Slip Options	Std	Mechanical differential lock
▶Chassis, Steering & Controls
Brakes	Wet Multi-disc	Not Published
Steering	Hydrostatic Power Steering	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Mechanical Front Drive (MFD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Std	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in.	67.3 in
Overall Width	63.4 in.	Not Published
Ground Clearance	11.5 in.	Not Published
Height to Top of ROPS	91.5 in.	93.5 in
Height to Top of Cab Model	NOT FOUND	Not Applicable
Height to Top of ROPS (folded)	NOT FOUND	68.2 in
Min. Turn Radius without Brakes	96.5 in.	Not Published
Overall Length with 3-Point Hitch	120.9 in.	122.5 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Bobcat CT2040 vs Case IH Farmall Compact 35A: Quick Answers

Which has more horsepower, the Bobcat CT2040 or the Case IH Farmall Compact 35A?

The Bobcat CT2040 leads on engine hp at 39.6 hp hp, compared to 35 hp hp for the Case IH Farmall Compact 35A.

Which has more PTO horsepower, the Bobcat CT2040 or the Case IH Farmall Compact 35A?

The Bobcat CT2040 leads on pto hp at 31.9 hp hp, compared to 29.7 hp hp for the Case IH Farmall Compact 35A.

Which has more loader lift capacity, the Bobcat CT2040 or the Case IH Farmall Compact 35A?

The Bobcat CT2040 leads on loader lift at 1,389 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 35A.

Which has more three-point hitch lift capacity, the Bobcat CT2040 or the Case IH Farmall Compact 35A?

The Case IH Farmall Compact 35A leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,631 lb lb for the Bobcat CT2040.
