Bobcat CT2040 vs Case IH Farmall Compact 40C

Across 5 measurable specs, the Case IH Farmall Compact 40C leads 4 categories to 1. Machine pages: Bobcat CT2040 and Case IH Farmall Compact 40C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

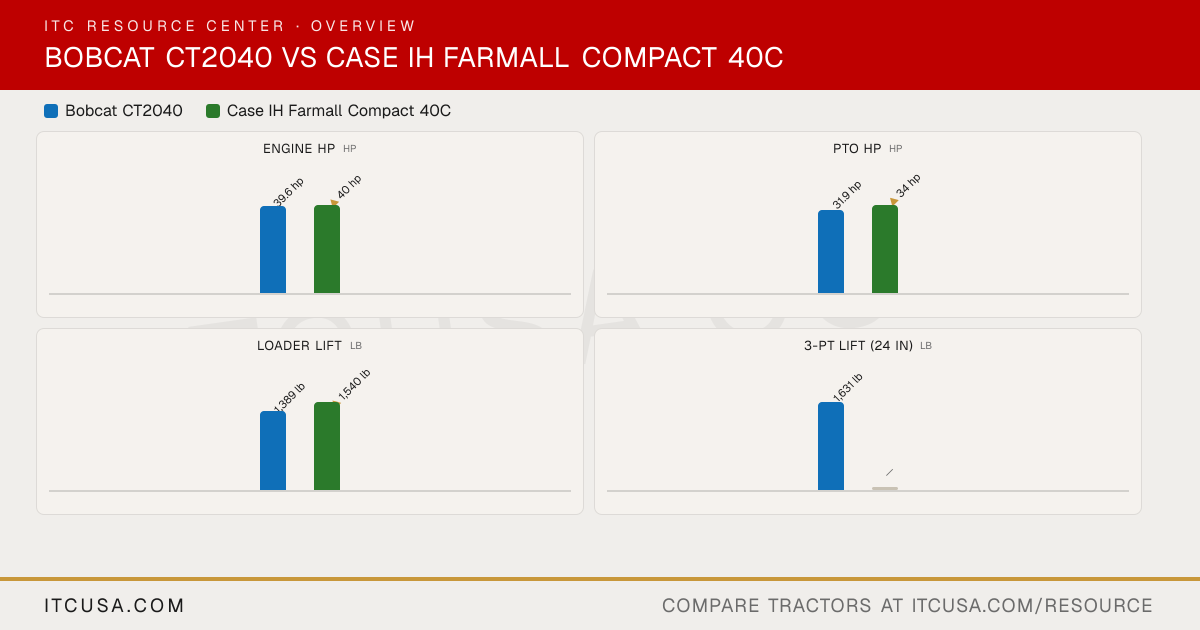

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT2040	Case IHFarmall Compact 40C

▶Engine
PTO Power	31.9 hp	34 hp
Alternator	alternator	Not Published
Air Cleaner	NOT FOUND — no source reviewed explicitly states an air cleaner type for the CT2040	Not Published
Engine Type	Diesel	Diesel, naturally aspirated
Fuel System	Common rail direct injection	Not Published
Displacement	111.4 in³	Not Published
Engine Model	Daedong 0.5 gal 3-cyl diesel	—
No. of Cylinders	3	Not Published
Rated Engine Speed	2600 rpm	Not Published
Cooling System Type	liquid-cooling	Not Published
Engine Manufacturer	Daedong	Not Published
Engine Power (Gross)	39.6 hp	40 hp
Engine Emissions Constraints	Stage V	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	Not Published
▶Hydraulics
Pump Type	Gear	Not Published
Steering Flow	4.5 gpm	Not Published
Implement Flow	11.7 gpm 44.3 lpm	Not Published
Total Hydraulic Flow	11.4 gpm	Not Published
Hydraulic System Type	Open Center	Not Published
Rear Remote Hydraulic Flow	Optional	Not Published
Overall Hydraulic Pump Flow	11.4 gpm	Not Published
No. of Optional Remote Valves	NOT FOUND	Not Published
No. of Standard Remote Valves	1/2	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	Not Published
PTO Type	Live	Not Published
Lift Control Type	Hydraulic Position Control System	Not Published
Hitch Lift Capacity	1631 lb.	Not Published
Mid-PTO Availability	Optional: 1988 rpm	Not Published
Category, 3-Point Hitch	Category 1	Not Published
Hitch Lift Capacity (at 24”)	1,631 lb	Not Published
▶Tire Options
R3 Turf - Rear	41 x 14-20/4	Not Published
R3 Turf - Front	28 x 8.5-15/6	Not Published
Tire Size & Options	Front AG. (TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15) | Rear AG. (TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)	Not Published
R4 Industrial - Rear	15-19.5	Not Published
R4 Industrial - Front	27X8.5-15	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R1 Agricultural - Front	7-16	Not Published
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	6.4 qts	Not Published
Fuel Tank Capacity	9.0 gal.	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
▶Loader & Attachments
Loader Model	FL8	—
Loader Lift Height	99.6 in.	105 in
Loader Breakout Force	3285 lb.	2,640 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	L350A
Loader Lift Capacity (Full Height)	1389 lb.	1,540 lb
▶Transmission & Drivetrain
Clutch	Not Published	Not Published
No. of Speeds	9-speed	Not Published
Transmission Type	3-Range HST	12x12 Mechanical Shuttle or 3-range Hydrostatic
Max Travel Speed (Forward)	14.4 mph (23.1 km/hr.)	Not Published
Max Travel Speed (Reverse)	12.9 mph (20.8 km/hr.)	Not Published
Differential Lock & Limited Slip Options	Std	Not Published
▶Chassis, Steering & Controls
Brakes	Wet Multi-disc	Not Published
Steering	Hydrostatic Power Steering	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	MFD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Std	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in.	Not Published
Overall Width	63.4 in.	Not Published
Ground Clearance	11.5 in.	Not Published
Height to Top of ROPS	91.5 in.	Not Published
Height to Top of Cab Model	NOT FOUND	Not Published
Height to Top of ROPS (folded)	NOT FOUND	Not Published
Min. Turn Radius without Brakes	96.5 in.	Not Published
Overall Length with 3-Point Hitch	120.9 in.	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Bobcat CT2040 vs Case IH Farmall Compact 40C: Quick Answers

Which has more horsepower, the Bobcat CT2040 or the Case IH Farmall Compact 40C?

The Case IH Farmall Compact 40C leads on engine hp at 40 hp hp, compared to 39.6 hp hp for the Bobcat CT2040.

Which has more PTO horsepower, the Bobcat CT2040 or the Case IH Farmall Compact 40C?

The Case IH Farmall Compact 40C leads on pto hp at 34 hp hp, compared to 31.9 hp hp for the Bobcat CT2040.

Which has more loader lift capacity, the Bobcat CT2040 or the Case IH Farmall Compact 40C?

The Case IH Farmall Compact 40C leads on loader lift at 1,540 lb lb, compared to 1,389 lb lb for the Bobcat CT2040.
