Bobcat CT2040 vs Kubota L4760

Across 8 measurable specs, the Kubota L4760 leads 7 categories to 1. Machine pages: Bobcat CT2040 and Kubota L4760.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT2040	KubotaL4760

▶Engine
PTO Power	31.9 hp	41 hp
Alternator	alternator	40 A, 12 V
Air Cleaner	NOT FOUND — no source reviewed explicitly states an air cleaner type for the CT2040	Dry paper, dual element
Engine Type	Diesel	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
Fuel System	Common rail direct injection	Electronic CRS (Common Rail System)
Displacement	111.4 in³	148.5 in³
Engine Model	Daedong 0.5 gal 3-cyl diesel	—
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	liquid-cooling	Liquid-cooled
Engine Manufacturer	Daedong	Kubota
Engine Power (Gross)	39.6 hp	49 hp
Engine Emissions Constraints	Stage V	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Gear	Tandem pump - gear type
Steering Flow	4.5 gpm	GST (4WD): 4.9 gpm; HST (4WD), HSTC (4WD, CAB): 4.7 gpm
Implement Flow	11.7 gpm 44.3 lpm	GST (4WD): 9.8 gpm; HST (4WD), HSTC (4WD, CAB): 9.4 gpm
Total Hydraulic Flow	11.4 gpm	GST (4WD): 14.7 gpm; HST (4WD), HSTC (4WD, CAB): 14.1 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Optional	Not Published
Overall Hydraulic Pump Flow	11.4 gpm	GST (4WD): 14.7 gpm; HST (4WD), HSTC (4WD, CAB): 14.1 gpm
No. of Optional Remote Valves	NOT FOUND	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	1/2	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	GST (4WD): 540 rpm @ 2550 engine rpm; HST (4WD), HSTC (4WD, CAB): 540 rpm @ 2475 engine rpm
PTO Type	Live	Live independent (hydraulic clutch)
Lift Control Type	Hydraulic Position Control System	Position control
Hitch Lift Capacity	1631 lb.	3,858 lb
Mid-PTO Availability	Optional: 1988 rpm	Optional
Category, 3-Point Hitch	Category 1	SAE Category 1
Hitch Lift Capacity (at 24”)	1,631 lb	2,756 lb
▶Tire Options
R3 Turf - Rear	41 x 14-20/4	44X18-20
R3 Turf - Front	28 x 8.5-15/6	29X12.50-15
Tire Size & Options	Front AG. (TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15) | Rear AG. (TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	15-19.5	4.6 gal-24
R4 Industrial - Front	27X8.5-15	10-16.5
R1 Agricultural - Rear	11.2-24	14.9-24
R1 Agricultural - Front	7-16	8.3-16
▶Fluid Capacity
Coolant Capacity	Not Published	8.7 qt
Crankcase Capacity	6.4 qts	8.7 qt
Fuel Tank Capacity	9.0 gal.	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	11.4 gal
▶Loader & Attachments
Loader Model	FL8	—
Loader Lift Height	99.6 in.	112.7 in
Loader Breakout Force	3285 lb.	3171 lb (14107 N)
Quick Attach Loader System	Standard Quick Attach Mounting System	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	1389 lb.	2361 lb
▶Transmission & Drivetrain
Clutch	Not Published	GST (4WD): Dry type single stage; HST (4WD), HSTC (4WD, CAB): N/A
No. of Speeds	9-speed	GST (4WD): 12Fx8R; HST (4WD), HSTC (4WD, CAB): 3-range, 6 speeds (H-DS), infinitely variable in each
Transmission Type	3-Range HST	GST (4WD): Glide Shift; HST (4WD), HSTC (4WD, CAB): Hydrostatic
Max Travel Speed (Forward)	14.4 mph (23.1 km/hr.)	GST (4WD): 16.0 mph; HST (4WD), HSTC (4WD, CAB): 16.8 mph
Max Travel Speed (Reverse)	12.9 mph (20.8 km/hr.)	GST (4WD): 15.2 mph; HST (4WD), HSTC (4WD, CAB): 15.1 mph
Differential Lock & Limited Slip Options	Std	Rear differential lock, standard
▶Chassis, Steering & Controls
Brakes	Wet Multi-disc	Wet disc type, mechanically activated
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Std	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in.	74.6 in
Overall Width	63.4 in.	66.5 in
Ground Clearance	11.5 in.	14.4 in
Height to Top of ROPS	91.5 in.	GST (4WD), HST (4WD): 97.6 in; HSTC (4WD, CAB): Not Applicable
Height to Top of Cab Model	NOT FOUND	GST (4WD), HST (4WD): Not Applicable; HSTC (4WD, CAB): 91.9 in
Height to Top of ROPS (folded)	NOT FOUND	GST (4WD), HST (4WD): 91.1 in; HSTC (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	96.5 in.	8.9 ft (2.7 m)
Overall Length with 3-Point Hitch	120.9 in.	129.5 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Bobcat CT2040 vs Kubota L4760: Quick Answers

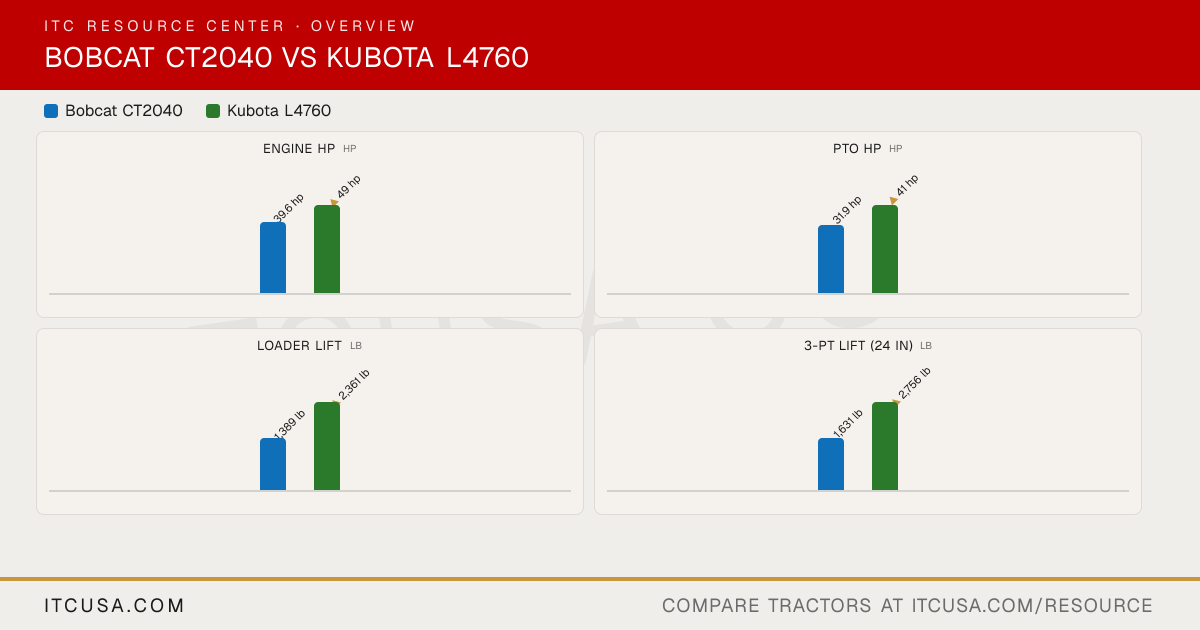

Which has more horsepower, the Bobcat CT2040 or the Kubota L4760?

The Kubota L4760 leads on engine hp at 49 hp hp, compared to 39.6 hp hp for the Bobcat CT2040.

Which has more PTO horsepower, the Bobcat CT2040 or the Kubota L4760?

The Kubota L4760 leads on pto hp at 41 hp hp, compared to 31.9 hp hp for the Bobcat CT2040.

Which has more loader lift capacity, the Bobcat CT2040 or the Kubota L4760?

The Kubota L4760 leads on loader lift at 2,361 lb lb, compared to 1,389 lb lb for the Bobcat CT2040.

Which has more three-point hitch lift capacity, the Bobcat CT2040 or the Kubota L4760?

The Kubota L4760 leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 1,631 lb lb for the Bobcat CT2040.
