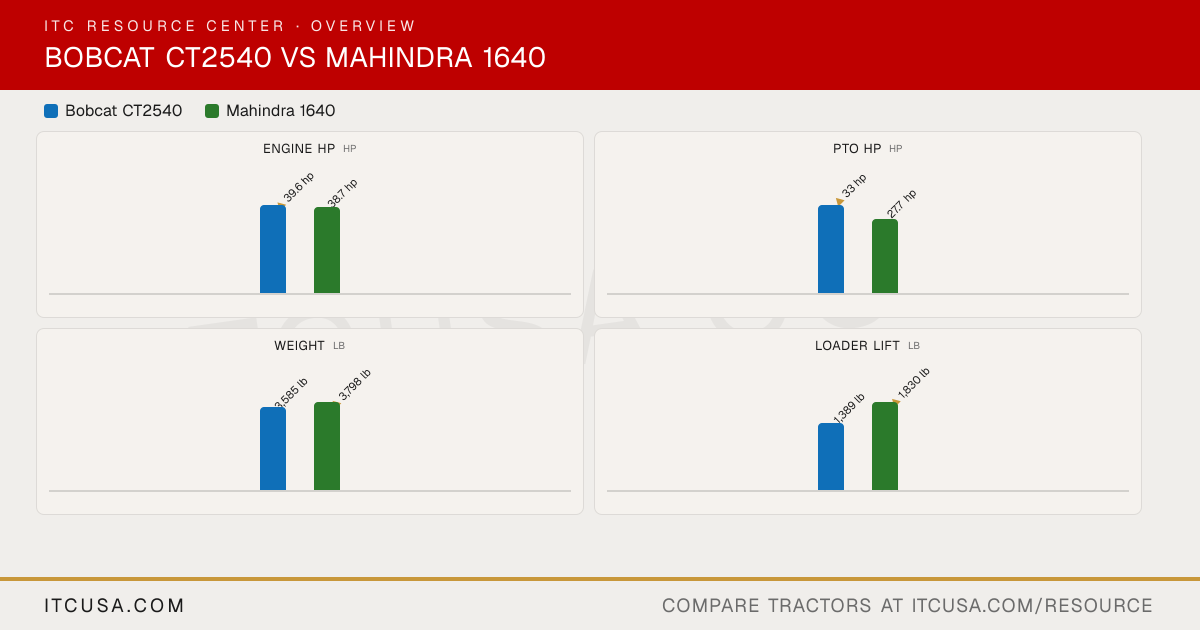

Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT2540
Mahindra1640
PTO Power
33 hp
27.7 hp
Alternator
75 A, 12 V
90 A, 12 V
Air Cleaner
Dry type, replaceable
Not Published
Engine Type
3 cylinder, water cooled, 4 cycle, Vertical In-Line Common Rail Direct Injection (CRDI)
Four-stroke, Naturally Aspirated, Direct Injection, Water-Cooled Diesel
Fuel System
Common Rail Direct Injection (CRDI)
Direct Injection
Displacement
109.8 in³
166.7 in³
Engine Model
Daedong 0.5 gal 3-cyl diesel
—
No. of Cylinders
3
4
Rated Engine Speed
2600 rpm
2400 rpm
Cooling System Type
Water cooled
Water-cooled
Engine Manufacturer
Daedong
Mahindra
Engine Power (Gross)
39.6 hp
38.7 hp @ 400 rpm
Engine Emissions Constraints
Stage V
DOC / No DPF
Weight with ROPS and Loader
3585 lbs
3798 lb
Weight with Cab and Loader
3,642 lb
Not Applicable
Warranty Length & Coverage
24 months of coverage from defects in material and workmanship or 1,500 hours of usage (whichever occurs first)
7-Year Limited Powertrain Warranty
Pump Type
Gear
Not Published
Steering Flow
4.5 gpm
3.4 gpm
Implement Flow
6.9 gpm
7.7 gpm
Total Hydraulic Flow
11.3 gpm
11.1 gpm
Hydraulic System Type
Open Center
Open Center
Rear Remote Hydraulic Flow
NOT FOUND — no source reviewed explicitly lists a separate 'Rear Remote Hydraulic Flow' figure for the CT2540. Sources only report total Implement Pump Flow of 11.7 gpm (44.5 Lpm).
Not Published
Overall Hydraulic Pump Flow
11.7 gpm (44.5 Lpm)
11.1 gpm
No. of Optional Remote Valves
NOT FOUND — no source reviewed explicitly lists a count of *optional* remote valves for the CT2540. The spec sheet at tractorgearbox.com lists 'Number of Standard Remote Valves: 1/2' only.
1
No. of Standard Remote Valves
Std. (4 port)
Not Published
PTO Rear
540/540E RPM
540 rpm @ 2376 rpm
PTO Type
Independent
Live with o/r clutch
Lift Control Type
Position
Position Control
Hitch Lift Capacity
2,270.7 lb
2646 lb
Mid-PTO Availability
2000.0 RPM
Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch
Category 1
CAT I with Telescoping Stabilizers & Flex Links
Hitch Lift Capacity (at 24”)
1,631 lb
1720 lb
R3 Turf - Rear
41x14.0-20 R3
41X14-20
R3 Turf - Front
27x8.5-15 R3
27X10.5-15
Tire Size & Options
Not Published
R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear
15-19.5 R4
43X16-20
R4 Industrial - Front
25x8.5-14 R4
28X8.5-15
R1 Agricultural - Rear
11.4-24 R1
11.2X24
R1 Agricultural - Front
7-16 R1
7X16
Coolant Capacity
NOT FOUND — field label present in source but numeric value is truncated/missing in all retrieved results
Not Published
Crankcase Capacity
6.4 qts
Not Published
Fuel Tank Capacity
9 gal
7.7 gal
Front Axle Fluid Capacity
NOT FOUND — no explicit value located in any source
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND — no explicit fill capacity value located in any source
Not Published
Loader Model
Bobcat FL8
—
Loader Lift Height
100 in
92 in
Loader Breakout Force
2838 lbs
2777 lb
Quick Attach Loader System
NOT FOUND — no CT2540-specific quick attach system name/model explicitly stated in any source reviewed
433.2 gal: Front loader with skid-steer couplers for superfast hookups.
