Bobcat CT4045 vs Kioti NX4510H

Across 8 measurable specs, the Kioti NX4510H leads 6 categories to 2. Machine pages: Bobcat CT4045 and Kioti NX4510H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

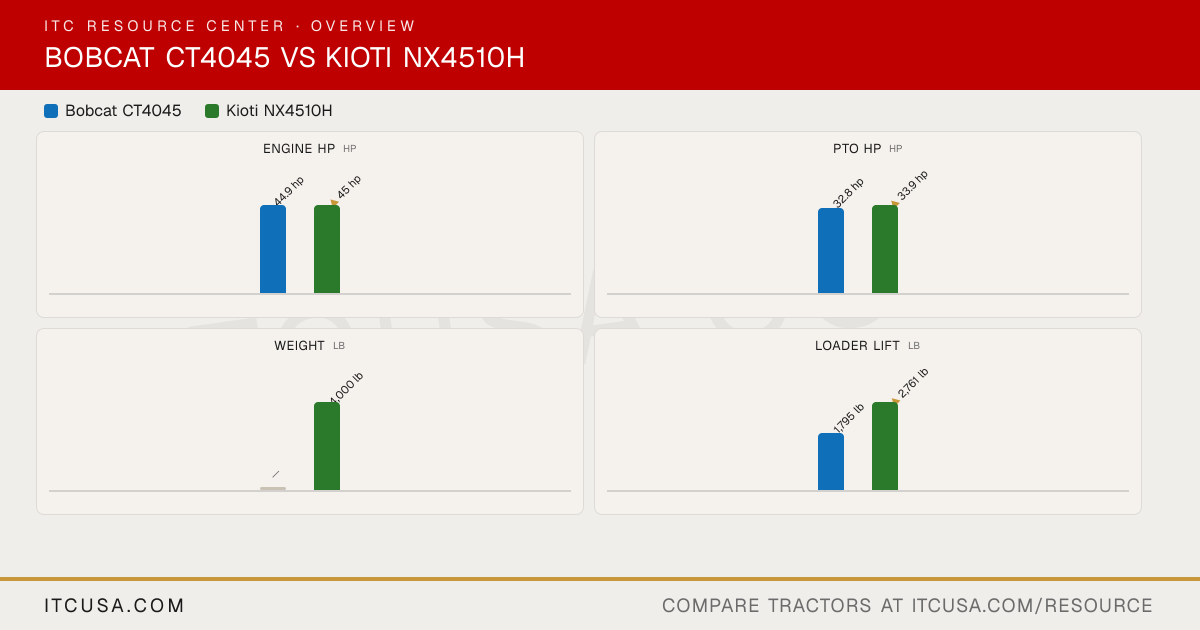

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT4045	KiotiNX4510H

▶Engine
PTO Power	32.8 hp	33.9 hp
Alternator	alternator	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Common rail direct injection	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³
Engine Model	Daedong 3F183T	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	Daedong	KIOTI (Daedong)
Engine Power (Gross)	44.9 hp	45 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	4,000 lb
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	24 months / 1,500 hours (whichever occurs first)	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)
▶Hydraulics
Pump Type	Open Center, Gear	Gear
Steering Flow	4.94 gpm 18.7 lpm	8.2 gpm
Implement Flow	9.6 gal/min (36.5 Lpm)	9.6 gpm
Total Hydraulic Flow	16.5 gpm	17.90 gpm
Hydraulic System Type	open center	Open Center
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	17.90 gpm
No. of Optional Remote Valves	NOT FOUND	1
No. of Standard Remote Valves	1 Pair Std (2nd Pair Opt)	1
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Hydraulic Position Control System	Position with Draft Control
Hitch Lift Capacity	2716 lb.	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional: 2119 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,716 lb	3,177 lbs
▶Tire Options
R3 Turf - Rear	44X18-20	21.5lx16.1
R3 Turf - Front	29X12.5-15	29x12.5-15
Tire Size & Options	Turf Tires, Industrial Tires, Agricultural Tires	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	NOT FOUND	14.9-24
R4 Industrial - Front	NOT FOUND	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24
R1 Agricultural - Front	8-16	8.0-16
▶Fluid Capacity
Coolant Capacity	6.7 (6.3) qts (L)	2.0 gal
Crankcase Capacity	6.4 (6.0) qts (L)	1.58 gal
Fuel Tank Capacity	12.7 gal.	14.8 gal
Front Axle Fluid Capacity	Not Published	1.8 gal
Transmission / Hydraulic System Capacity	Not Published	11.89 gal
▶Loader & Attachments
Loader Model	FL9	—
Loader Lift Height	104.6 in.	108.3 in
Loader Breakout Force	4136 lb.	3,727 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	1795 lb.	2,761 lb
▶Transmission & Drivetrain
Clutch	NOT FOUND — no source explicitly states clutch type (e.g., dry single-disc). SST requires clutch to shift gears; HST has no clutch pedal.	None
No. of Speeds	8F X 8R Synchro	3 Range
Transmission Type	3-Range HST	Hydrostatic
Max Travel Speed (Forward)	18.5 mph (29.7 km/hr.)	16.52 mph
Max Travel Speed (Reverse)	12.9 mph (20.8 km/hr.)	16.52 mph
Differential Lock & Limited Slip Options	Std	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Brakes	Wet Multi-disc	Wet Multi Disc
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Frame Type	4x4 MFWD 4WD	Not Published
Front Axle Type	NOT FOUND — no source explicitly labels a 'Front Axle Type' value for the CT4045	Not Published
Drawbar Capacity	NOT FOUND — no credible source reviewed lists an explicit drawbar capacity value for the CT4045	Not Published
Front Axle Rating	NOT FOUND — no source reviewed lists an explicit front axle rating (lb or kg) for the CT4045	Not Published
Seat Suspension & Adjustability	Suspension seat (standard); deluxe suspension seat available on select models - fully adjustable, foldable right-hand armrest	Adjustable Seat
▶Dimensions & Maneuverability
Wheelbase	71.2 in.	75.6 in
Overall Width	67.0 in.	65.6 in
Ground Clearance	15.3 in.	13.7 in
Height to Top of ROPS	97.4 in.	103.1 in
Height to Top of Cab Model	NOT FOUND — no cab model variant of the CT4045 was found in any source reviewed; all sources describe an open ROPS station	Not Applicable
Height to Top of ROPS (folded)	NOT FOUND — no source reviewed explicitly lists a folded ROPS height for the CT4045	Not Published
Min. Turn Radius without Brakes	103.5 in.	9.81 ft (2.99 m)
Overall Length with 3-Point Hitch	125.5 in.	139.6 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Bobcat CT4045 vs Kioti NX4510H: Quick Answers

Which has more horsepower, the Bobcat CT4045 or the Kioti NX4510H?

The Kioti NX4510H leads on engine hp at 45 hp hp, compared to 44.9 hp hp for the Bobcat CT4045.

Which has more PTO horsepower, the Bobcat CT4045 or the Kioti NX4510H?

The Kioti NX4510H leads on pto hp at 33.9 hp hp, compared to 32.8 hp hp for the Bobcat CT4045.

Which has more loader lift capacity, the Bobcat CT4045 or the Kioti NX4510H?

The Kioti NX4510H leads on loader lift at 2,761 lb lb, compared to 1,795 lb lb for the Bobcat CT4045.

Which has more three-point hitch lift capacity, the Bobcat CT4045 or the Kioti NX4510H?

The Kioti NX4510H leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Bobcat CT4045.
