Bobcat CT4050 vs Kioti NX5010CH

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bobcat CT4050, 4 to the Kioti NX5010CH. Machine pages: Bobcat CT4050 and Kioti NX5010CH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

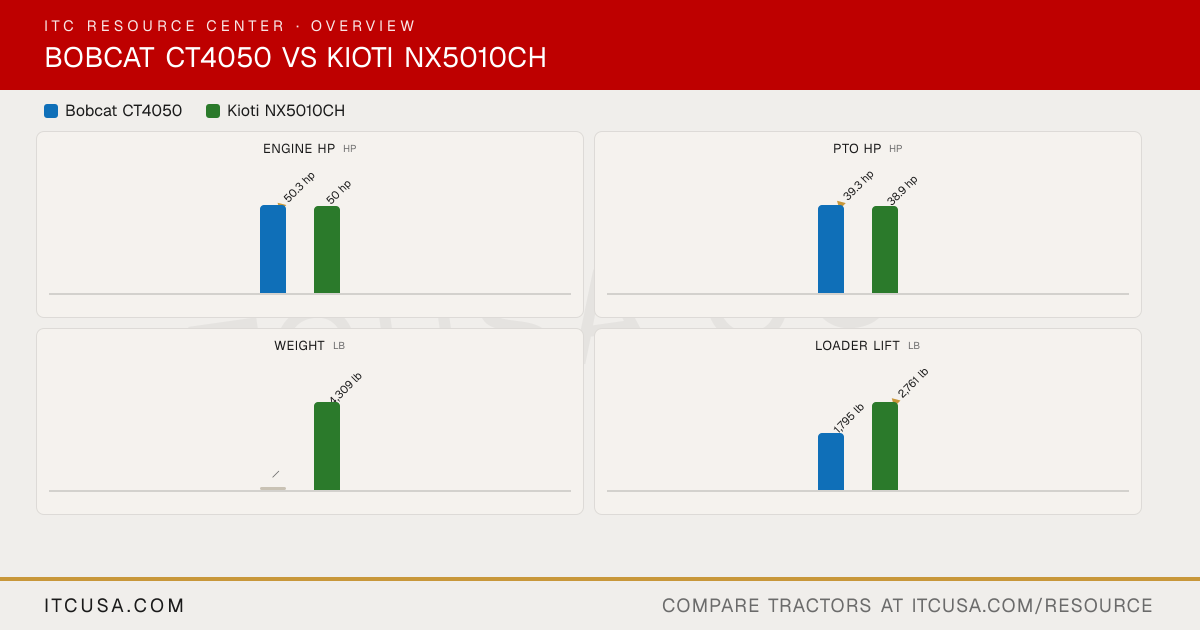

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT4050	KiotiNX5010CH

▶Engine
PTO Power	39.3 hp	38.9 hp
Alternator	alternator	Not Published
Air Cleaner	Dry type, replaceable	Not Published
Engine Type	diesel	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³
Engine Model	3FT-THL4-U	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	water cooled	Water-cooled
Engine Manufacturer	Daedong	KIOTI (Daedong)
Engine Power (Gross)	50.3 hp	50 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Applicable	4,309 lb
▶Warranty
Warranty Length & Coverage	24 months / 1,500 hours (whichever occurs first)	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)
▶Hydraulics
Pump Type	36.40	Gear
Steering Flow	4.94 gpm 18.7 lpm	8.2 gpm
Implement Flow	9.62 gpm 36.4 lpm	9.6 gpm
Total Hydraulic Flow	16.5 gpm [HST] / 16.5 gpm [SST]	17.90 gpm
Hydraulic System Type	open center	Open Center
Rear Remote Hydraulic Flow	36.40	Not Published
Overall Hydraulic Pump Flow	16.5 gpm [HST] / 16.5 gpm [SST]	17.90 gpm
No. of Optional Remote Valves	2nd Pair Opt [HST] / 2 Pairs Opt [SST]	1
No. of Standard Remote Valves	1 Pair Std (2nd Pair Opt) [HST] / Opt 2 Pairs [SST]	1
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Hydraulic Position Control System	Position with Draft Control
Hitch Lift Capacity	2716 lb.	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional: 2119 rpm [HST] / - [SST]	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,716 lb	3,177 lbs
▶Tire Options
R3 Turf - Rear	44x18.0-20 R3	21.5lx16.1
R3 Turf - Front	29x12.5-15NHS R3	29x12.5-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	4.6 gal-24 R4	14.9-24
R4 Industrial - Front	10-16.5 (124 A2)	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24
R1 Agricultural - Front	8-16	8.0-16
▶Fluid Capacity
Coolant Capacity	0.9 gal	2.0 gal
Crankcase Capacity	2 gal	1.58 gal
Fuel Tank Capacity	11.9 gal	14.8 gal
Front Axle Fluid Capacity	1.5 gal	1.8 gal
Transmission / Hydraulic System Capacity	11.4 gal	11.89 gal
▶Loader & Attachments
Loader Model	FL9	—
Loader Lift Height	104.6 in.	108.3 in
Loader Breakout Force	4136 lb.	3,727 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	1795 lb.	2,761 lb
▶Transmission & Drivetrain
Clutch	Standard	None
No. of Speeds	8F X 8R [SST]	3 Range
Transmission Type	3-Range HST [HST] / 8F X 8R Synchro [SST]	Hydrostatic
Max Travel Speed (Forward)	18.5 mph (29.7 km/hr.) [HST] / 17.5 mph (28.2 km/hr.) [SST]	16.52 mph
Max Travel Speed (Reverse)	12.9 mph (20.8 km/hr.) [HST] / 17.1 mph (27.5 km/hr.) [SST]	16.52 mph
Differential Lock & Limited Slip Options	Std	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Brakes	Wet Multi-disc	Wet Multi Disc
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Hydraulic multi disc Clutch	Not Published
Drawbar Capacity	750.00 KG	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Std	Adjustable Seat
▶Dimensions & Maneuverability
Wheelbase	71.2 in.	75.6 in
Overall Width	Ag Tires: 67.0 in. / Industrial Tires: 69.8 in. / Turf Tires: 72.2 in.	65.6 in
Ground Clearance	15.3 in.	13.7 in
Height to Top of ROPS	97.4 in.	Not Applicable
Height to Top of Cab Model	Not Applicable	94.1 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	103.5 in.	9.81 ft (2.99 m)
Overall Length with 3-Point Hitch	125.5 in.	139.6 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection

Bobcat CT4050 vs Kioti NX5010CH: Quick Answers

Which has more horsepower, the Bobcat CT4050 or the Kioti NX5010CH?

The Bobcat CT4050 leads on engine hp at 50.3 hp hp, compared to 50 hp hp for the Kioti NX5010CH.

Which has more PTO horsepower, the Bobcat CT4050 or the Kioti NX5010CH?

The Bobcat CT4050 leads on pto hp at 39.3 hp hp, compared to 38.9 hp hp for the Kioti NX5010CH.

Which has more loader lift capacity, the Bobcat CT4050 or the Kioti NX5010CH?

The Kioti NX5010CH leads on loader lift at 2,761 lb lb, compared to 1,795 lb lb for the Bobcat CT4050.

Which has more three-point hitch lift capacity, the Bobcat CT4050 or the Kioti NX5010CH?

The Kioti NX5010CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Bobcat CT4050.
