Bobcat CT4055 vs Bobcat UT6066

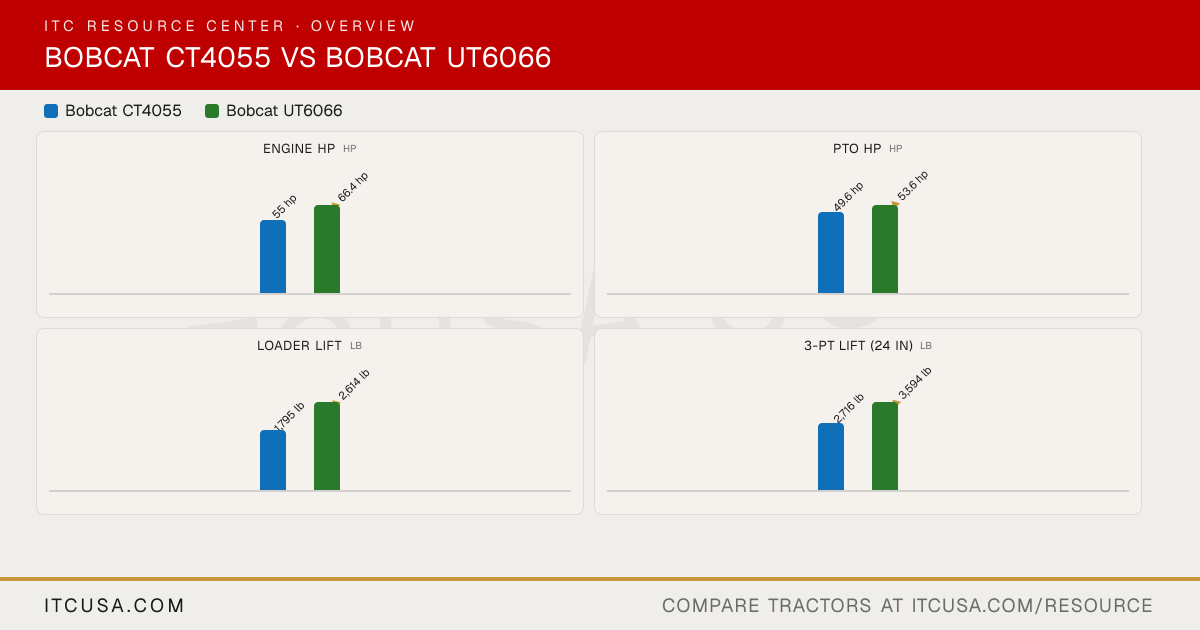

Across 9 measurable specs, the Bobcat UT6066 leads 9 categories to 0. Machine pages: Bobcat CT4055 and Bobcat UT6066.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT4055	BobcatUT6066

▶Engine
Engine Manufacturer	Daedong	Daedong
Engine Model	3FT-TL4-U	4HT-TP4A
Engine Type	Turbocharged diesel	Turbocharged diesel
No. of Cylinders	3	4
Displacement	111.4 in³	148.6 in³
Rated Engine Speed	2750 rpm	2600 rpm
Engine Power (Gross)	55 hp	66.4 hp
PTO Power	49.6 hp	57.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Common rail
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	9.6 gpm	11.0 gpm
Steering Flow	4.5 gpm	6.9 gpm
Total Hydraulic Flow	14.1 gpm	17.9 gpm
Overall Hydraulic Pump Flow	14.1 gpm	17.9 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard; 2 pairs optional	1
No. of Optional Remote Valves	2 pairs	2
▶Fluid Capacity
Fuel Tank Capacity	11.9 gal	22.5 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540/540E rpm
Mid-PTO Availability	Not offered (SST model)	Not Published
Category, 3-Point Hitch	Category I	Category II
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	2,716 lb	3,594 lb
Lift Control Type	Hydraulic position control	Position with draft control
▶Transmission & Drivetrain
Transmission Type	8F x 8R synchro shuttle (SST)	3-range powershuttle with electronic clutch
No. of Speeds	8 forward, 8 reverse	12 forward, 12 reverse
Max Travel Speed (Forward)	16.3 mph	19.8 mph
Max Travel Speed (Reverse)	15.9 mph	19.5 mph
Clutch	Not Published	Electronic clutch
Differential Lock & Limited Slip Options	Rear differential lock, standard	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering with tilt wheel
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable seat (standard)	Suspension seat, adjustable (standard)
Front Axle Type	Not Published	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	70.3 in (with industrial tires)	77.2 in
Wheelbase	71.2 in	82.7 in
Ground Clearance	15.3 in (with industrial tires)	12.3 in
Min. Turn Radius without Brakes	103.5 in (with assisted braking)	147.0 in
Height to Top of ROPS	97.4 in	102.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	n/a (open-station ROPS model)	Not Published
Overall Length	125.5 in (with 3-point hitch)	148.8 in
▶Weight
Tractor Weight (Base)	3,745 lb	5,440 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	n/a (open-station ROPS model)	Not Published
▶Tire Options
Tire Size & Options	Agricultural; Turf; Industrial	Industrial (standard), Agricultural, Multi-Use
R1 Agricultural - Front	8-16	9.5-24
R1 Agricultural - Rear	13.6-24	16.9-30
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	12.5/80-18
R4 Industrial - Rear	Not Published	18.4-24
▶Loader & Attachments
Quick Attach Loader System	Standard quick attach mounting system	Bob-Tach
Loader Model	FL9	FL10
Loader Lift Height	103.0 in (to pivot pin)	FL10: 129.0 in (to pivot pin)
Loader Lift Capacity (Full Height)	1,858 lb (at pivot pin, max height)	FL10: 2,614 lb (at pivot pin, max height)
Loader Breakout Force	3,938 lb (at pivot point)	FL10: 4,558 lb (at pivot point)
▶Warranty
Warranty Length & Coverage	Not Published	Basic 24 months or 1,500 hours; powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Find a dealer near you→

Bobcat CT4055 vs Bobcat UT6066: Quick Answers

Which has more horsepower, the Bobcat CT4055 or the Bobcat UT6066?

The Bobcat UT6066 leads on engine hp at 66.4 hp hp, compared to 55 hp hp for the Bobcat CT4055.

Which has more PTO horsepower, the Bobcat CT4055 or the Bobcat UT6066?

The Bobcat UT6066 leads on pto hp at 57.4 hp hp, compared to 49.6 hp hp for the Bobcat CT4055.

Which is heavier, the Bobcat CT4055 or the Bobcat UT6066?

The Bobcat UT6066 leads on weight at 5,440 lb lb, compared to 3,745 lb lb for the Bobcat CT4055.

Which has more loader lift capacity, the Bobcat CT4055 or the Bobcat UT6066?

The Bobcat UT6066 leads on loader lift at 2,614 lb lb, compared to 1,858 lb lb for the Bobcat CT4055.

Which has more three-point hitch lift capacity, the Bobcat CT4055 or the Bobcat UT6066?

The Bobcat UT6066 leads on 3-pt lift (24 in) at 3,594 lb lb, compared to 2,716 lb lb for the Bobcat CT4055.
