Across 8 measurable specs, the Bobcat UT6566 leads 8 categories to 0. Machine pages: Bobcat CT4055 and Bobcat UT6566.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bobcat CT4055 | Bobcat UT6566 |
|---|
| Engine HP (hp) | 55 hp | ▲ 66.4 hp |
| PTO HP (hp) | 49.6 hp | ▲ 57.4 hp |
| Weight (lb) | 3,745 lb | ▲ 5,830 lb |
| Loader Lift (lb) | 1,795 lb | ▲ 2,641 lb |
| 3-Pt Lift (24 in) (lb) | 2,716 lb | ▲ 3,594 lb |
| Lift Height (in) | 103.2 in | ▲ 129.3 in |
| Breakout Force (lbf) | 4,136 lbf | n/a |
| Hydraulic Flow (gpm) | 14.1 gpm | ▲ 19.2 gpm |
| Travel Speed (mph) | 17.5 mph | ▲ 19.8 mph |

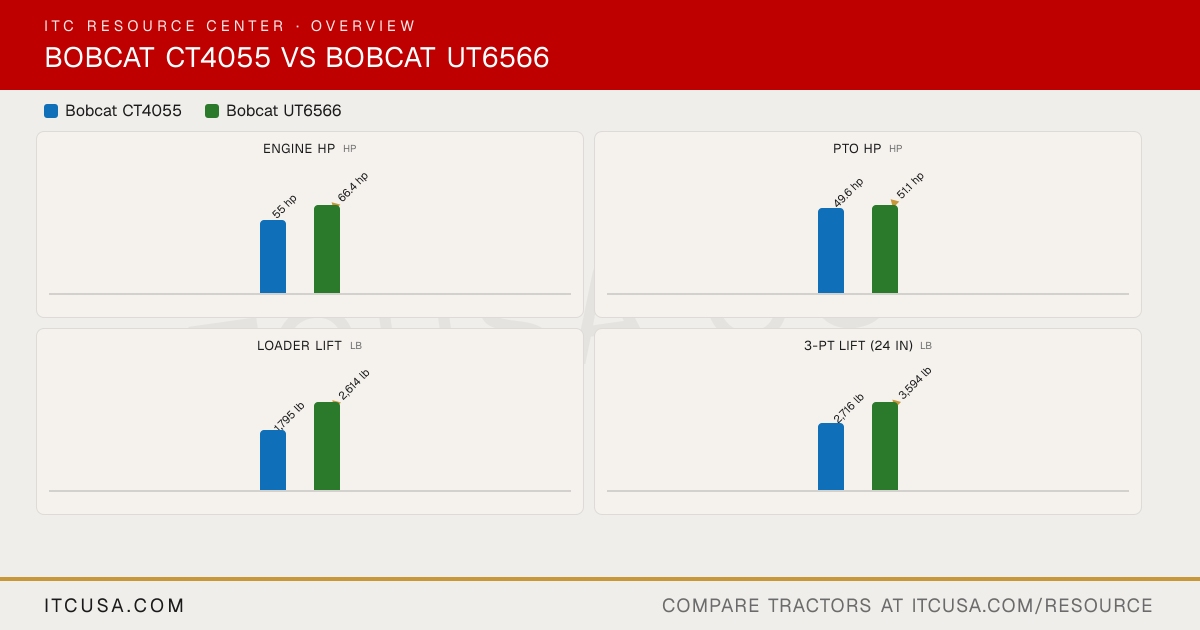

The headline numbers at a glance.
Bobcat CT4055Bobcat UT6566
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | BobcatCT4055 | BobcatUT6566 |
|---|
|
|---|
| Engine Manufacturer | Daedong | Daedong |
|---|
| Engine Model | 3FT | 4HT-TP4A |
|---|
| Engine Type | Turbocharged diesel | Turbocharged diesel |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Displacement | 111.4 in³ | 148.6 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 55 hp | 66.4 hp |
|---|
| PTO Power | 49.6 hp | 57.4 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Common rail |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 9.62 gpm | 11.0 gpm |
|---|
| Steering Flow | 4.94 gpm | 8.2 gpm |
|---|
| Total Hydraulic Flow | 14.1 gpm | 19.2 gpm |
|---|
| Overall Hydraulic Pump Flow | 14.1 gpm | 19.2 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | None standard; 2 pairs optional | 1 |
|---|
| No. of Optional Remote Valves | 2 pairs | 2 |
|---|
|
|---|
| Fuel Tank Capacity | 11.9 gal | 25.1 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm | 540/540E rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category II |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2716 lb | 3594 lb |
|---|
| Lift Control Type | Hydraulic position control | Position with draft control |
|---|
|
|---|
| Transmission Type | 8F x 8R synchro shuttle (SST) | 3-range powershuttle with electronic clutch |
|---|
| No. of Speeds | 8 forward, 8 reverse | 12 forward, 12 reverse |
|---|
| Max Travel Speed (Forward) | 17.5 mph | 19.8 mph |
|---|
| Max Travel Speed (Reverse) | 17.1 mph | 19.5 mph |
|---|
| Clutch | Not Published | Electronic clutch |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock, standard | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Power steering with tilt wheel |
|---|
| Brakes | Wet multi-disc | Wet multi-disc |
|---|
| Seat Suspension & Adjustability | Adjustable seat (standard) | Suspension seat, fully adjustable (standard) |
|---|
| Front Axle Type | Not Published | Four-wheel drive (standard) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 125.5 in | 148.8 in |
|---|
| Overall Width | 69.8 in | 77.2 in |
|---|
| Wheelbase | 71.2 in | 82.7 in |
|---|
| Ground Clearance | 15.3 in | 12.3 in |
|---|
| Min. Turn Radius without Brakes | 103.5 in (with brake applied) | 147.0 in |
|---|
| Height to Top of ROPS | 97.4 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | n/a (open-station ROPS model) | 99.3 in |
|---|
|
|---|
| Tractor Weight (Base) | 3745 lb | 5830 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | n/a (open-station ROPS model) | Not Published |
|---|
|
|---|
| Tire Size & Options | Agricultural (R1), Turf (R3), Industrial (R4) | Industrial (standard), Agricultural, Multi-Use |
|---|
| R1 Agricultural - Front | 8-16 | 9.5-24 |
|---|
| R1 Agricultural - Rear | 13.6-24 | 16.9-30 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | 12.5/80-18 |
|---|
| R4 Industrial - Rear | Not Published | 18.4-24 |
|---|
|
|---|
| Quick Attach Loader System | Standard quick attach mounting system | Bob-Tach |
|---|
| Loader Model | FL9 | FL10 |
|---|
| Loader Lift Height | FL9: 103.2 in | 129.3 in |
|---|
| Loader Lift Capacity (Full Height) | 1795 lb | 2641 lb |
|---|
| Loader Breakout Force | 4136 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | 24 months or 1,500 hours, whichever occurs first (defects in material and workmanship) | 24 months or 1,500 hours (whichever occurs first); powertrain 36 months or 2,000 hours |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Bobcat CT4055 vs Bobcat UT6566: Quick Answers
- Which has more horsepower, the Bobcat CT4055 or the Bobcat UT6566?
- The Bobcat UT6566 leads on engine hp at 66.4 hp hp, compared to 55 hp hp for the Bobcat CT4055.
- Which has more PTO horsepower, the Bobcat CT4055 or the Bobcat UT6566?
- The Bobcat UT6566 leads on pto hp at 57.4 hp hp, compared to 49.6 hp hp for the Bobcat CT4055.
- Which is heavier, the Bobcat CT4055 or the Bobcat UT6566?
- The Bobcat UT6566 leads on weight at 5,830 lb lb, compared to 3,745 lb lb for the Bobcat CT4055.
- Which has more loader lift capacity, the Bobcat CT4055 or the Bobcat UT6566?
- The Bobcat UT6566 leads on loader lift at 2,641 lb lb, compared to 1,795 lb lb for the Bobcat CT4055.
- Which has more three-point hitch lift capacity, the Bobcat CT4055 or the Bobcat UT6566?
- The Bobcat UT6566 leads on 3-pt lift (24 in) at 3,594 lb lb, compared to 2,716 lb lb for the Bobcat CT4055.
