Bobcat CT4545 vs Kioti DK4720

Across 8 measurable specs, the Kioti DK4720 leads 4 categories to 1 (3 tied). Machine pages: Bobcat CT4545 and Kioti DK4720.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

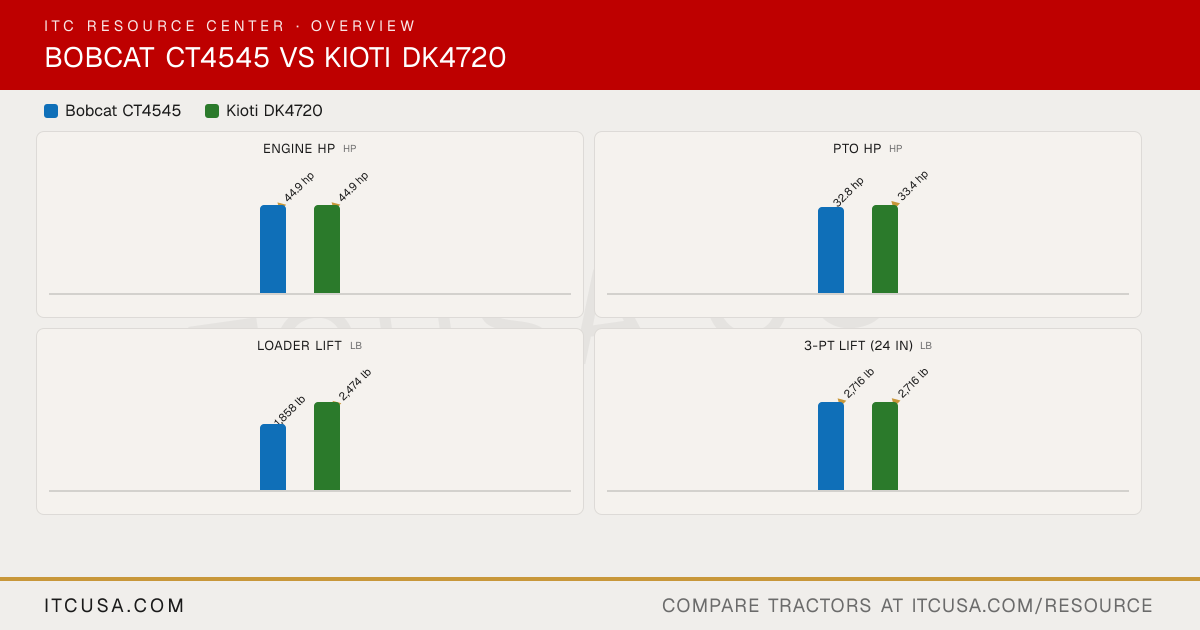

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT4545	KiotiDK4720

▶Engine
Engine Manufacturer	Daedong	KIOTI (Daedong)
Engine Model	3HT-TM4B	3HT-TH4C
Engine Type	Turbocharged diesel	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2750 rpm	2600 rpm
Engine Power (Gross)	44.9 hp	44.9 hp
PTO Power	32.8 hp	33.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry element
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	9.6 gpm	9.62 gpm
Steering Flow	6.9 gpm	6.87 gpm
Total Hydraulic Flow	16.5 gpm	16.5 gpm
Overall Hydraulic Pump Flow	16.5 gpm	16.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 pair	2
No. of Optional Remote Valves	1 pair (2nd pair optional)	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.9 gal	12.7 gal
Coolant Capacity	Not Published	2.1 gal
Crankcase Capacity	Not Published	1.95 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal
Front Axle Fluid Capacity	Not Published	1.48 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional: 2119 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2716 lb	2,998 lb
Hitch Lift Capacity (at 24”)	2716 lb	2,716 lb
Lift Control Type	Hydraulic Position Control System	Position
▶Transmission & Drivetrain
Transmission Type	3-Range HST	Hydrostatic (HST)
No. of Speeds	Infinite forward and reverse (3-range)	3 ranges (hydrostatic, infinite speeds)
Max Travel Speed (Forward)	18.0 mph	18.45 mph
Max Travel Speed (Reverse)	12.6 mph	12.92 mph
Clutch	Not Published	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable seat (standard)	Deluxe suspension seat
Front Axle Type	Four-wheel drive (standard)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	125.5 in	125.5 in
Overall Width	70.3 in	62.8 in
Wheelbase	71.2 in	71.3 in
Ground Clearance	15.3 in	14.5 in
Min. Turn Radius without Brakes	116.1 in (with brake applied)	102.8 in (with brake applied)
Height to Top of ROPS	Not Published	96.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94.3 in	93.0 in
▶Weight
Tractor Weight (Base)	4300 lb	3,523 lb (DK4720SEH); 4,043 lb (DK4720SEH CAB)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	Not Published	29-12.5-15
R3 Turf - Rear	Not Published	21.5L-16.1
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Front-end loader with standard quick attach mounting system	Quick attach (QA) bucket, 66 in or 72 in
Loader Model	FL9	KL5520; KL5521 (Cab models)
Loader Lift Height	103.2 in	KL5520: 107.7 in; KL5521: 107.7 in
Loader Lift Capacity (Full Height)	1795 lb	KL5520: 2,474 lb; KL5521: 2,474 lb
Loader Breakout Force	Not Published	KL5520: 3,895 lb; KL5521: 3,895 lb
▶Warranty
Warranty Length & Coverage	24 months or 1500 hours (whichever occurs first); powertrain 48 months (consumer use) or 36 months / 2000 hours (business use)	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a dealer near you→Find a KIOTI dealer near you→

Bobcat CT4545 vs Kioti DK4720: Quick Answers

Which has more horsepower, the Bobcat CT4545 or the Kioti DK4720?

They are effectively tied: both machines are rated at 44.9 hp hp for engine hp.

Which has more PTO horsepower, the Bobcat CT4545 or the Kioti DK4720?

The Kioti DK4720 leads on pto hp at 33.4 hp hp, compared to 32.8 hp hp for the Bobcat CT4545.

Which is heavier, the Bobcat CT4545 or the Kioti DK4720?

The Bobcat CT4545 leads on weight at 4,300 lb lb, compared to 3,523 lb lb for the Kioti DK4720.

Which has more loader lift capacity, the Bobcat CT4545 or the Kioti DK4720?

The Kioti DK4720 leads on loader lift at 2,474 lb lb, compared to 1,795 lb lb for the Bobcat CT4545.

Which has more three-point hitch lift capacity, the Bobcat CT4545 or the Kioti DK4720?

They are effectively tied: both machines are rated at 2,716 lb lb for 3-pt lift (24 in).
