Bobcat UT6066 vs Kubota M6060HDC

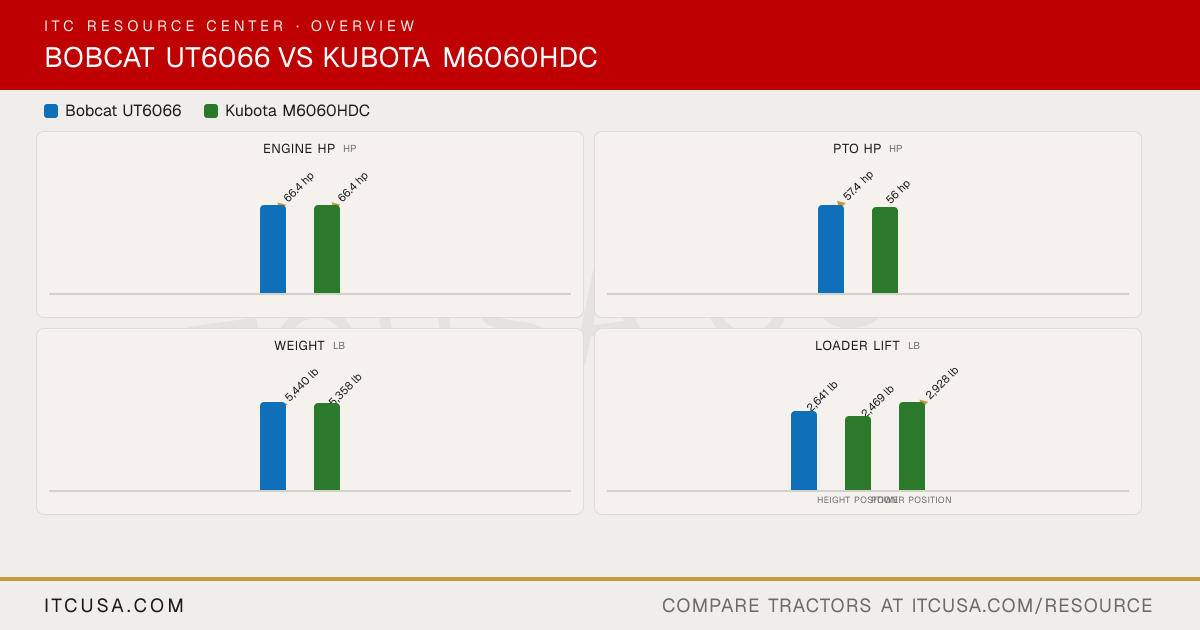

Across 8 measurable specs, the Bobcat UT6066 leads 5 categories to 2 (1 tied). Machine pages: Bobcat UT6066 and Kubota M6060HDC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatUT6066	KubotaM6060HDC

▶Engine
Engine Manufacturer	Daedong	Kubota
Engine Model	4HT-TP4A	V3307-CR-TE4
Engine Type	Turbocharged diesel	Liquid-cooled, diesel, 4-cylinder, Turbocharged
No. of Cylinders	4	4
Displacement	148.6 in³	203 in³
Rated Engine Speed	2600 rpm	2400 rpm
Engine Power (Gross)	66.4 hp	66.4 hp
PTO Power	57.4 hp	56 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Not Published	Dry paper, dual element, 8 in diameter, with pre-cleaner
Fuel System	Common rail	Common Rail System (CRS)
Alternator	Not Published	60 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	11.0 gpm	11.0 gpm
Steering Flow	6.9 gpm	6.1 gpm
Total Hydraulic Flow	17.9 gpm	17.1 gpm
Overall Hydraulic Pump Flow	17.9 gpm	17.1 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	11.0 gpm
No. of Standard Remote Valves	1	1 (SCD)
No. of Optional Remote Valves	2	2nd, 3rd (optional)
▶Fluid Capacity
Fuel Tank Capacity	22.5 gal	23.8 gal
Coolant Capacity	Not Published	8.5 qt
Crankcase Capacity	Not Published	12.7 qt
Transmission / Hydraulic System Capacity	Not Published	14.8 gal
Front Axle Fluid Capacity	Not Published	5.8 qt (differential) plus 3.7 qt (each bevel gear case)
▶PTO & Hitch
PTO Type	Independent	Live-independent PTO, electro-hydraulic clutch with brake
PTO Rear	540/540E rpm	540 rpm (540/540E optional)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 2	I / II
Hitch Lift Capacity	Not Published	4189 lb
Hitch Lift Capacity (at 24”)	3594 lb	3307 lb
Lift Control Type	Position with draft control	Position, Draft (Top Link Sensing) & Mixed Control
▶Transmission & Drivetrain
Transmission Type	3-range powershuttle with electronic clutch	Hydraulic-shuttle transmission (fully synchronized)
No. of Speeds	12 forward, 12 reverse	F8/R8
Max Travel Speed (Forward)	19.8 mph	18.0 mph
Max Travel Speed (Reverse)	19.5 mph	17.7 mph
Clutch	Electronic clutch	Multiple wet disc
Differential Lock & Limited Slip Options	Not Published	Rear differential lock standard (mechanical)
▶Chassis, Steering & Controls
Frame Type	Not Published	Certified ROPS cab
Steering	Power steering with tilt wheel	Hydrostatic power steering
Brakes	Wet multi-disc	Mechanical wet disc
Seat Suspension & Adjustability	Suspension seat, fully adjustable (standard)	Fully adjustable suspension seat (travel, suspension tension, backrest tilt, arm rests); optional air ride seat on cab models
Front Axle Type	Four-wheel drive (standard)	Bevel gear type with 55 degree turning angle (4WD)
Front Axle Rating	Not Published	5290 lb (6615 lb with loader)
Drawbar Capacity	Not Published	2200 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	148.8 in	138.0 in
Overall Width	77.2 in	73.0 in
Wheelbase	82.7 in	83.1 in
Ground Clearance	12.3 in	18.1 in
Min. Turn Radius without Brakes	147.0 in	11.8 ft
Height to Top of ROPS	102.1 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	100.6 in
▶Weight
Tractor Weight (Base)	5440 lb	5358 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Industrial (standard), Agricultural, Multi-Use	Standard: 9.5-24 front, 16.9-28 rear
R1 Agricultural - Front	9.5-24	9.5-24
R1 Agricultural - Rear	16.9-30	16.9-28/14.9-28
R3 Turf - Front	Not Published	LSW305-521
R3 Turf - Rear	Not Published	LSW570-648
R4 Industrial - Front	12.5/80-18	12.5/80-18
R4 Industrial - Rear	18.4-24	16.9-24
▶Loader & Attachments
Quick Attach Loader System	Bob-Tach	LA1154A: 2-Lever Quick Coupler
Loader Model	FL10	LA1154A
Loader Lift Height	129.3 in	Height position: 132.7 in; Power position: 117.2 in
Loader Lift Capacity (Full Height)	2641 lb	Height position: 2469 lb; Power position: 2928 lb
Loader Breakout Force	Not Published	Height position: 4230 lbf; Power position: 5354 lbf
▶Warranty
Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first); powertrain 36 months or 2,000 hours	All Usage - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota M6060/M7060/M4 Series Brush Guard Insert $287.00

Find a dealer near you→Find a Kubota dealer near you→

Bobcat UT6066 vs Kubota M6060HDC: Quick Answers

Which has more horsepower, the Bobcat UT6066 or the Kubota M6060HDC?

They are effectively tied: both machines are rated at 66.4 hp hp for engine hp.

Which has more PTO horsepower, the Bobcat UT6066 or the Kubota M6060HDC?

The Bobcat UT6066 leads on pto hp at 57.4 hp hp, compared to 56 hp hp for the Kubota M6060HDC.

Which is heavier, the Bobcat UT6066 or the Kubota M6060HDC?

The Bobcat UT6066 leads on weight at 5,440 lb lb, compared to 5,358 lb lb for the Kubota M6060HDC.

Which has more loader lift capacity, the Bobcat UT6066 or the Kubota M6060HDC?

The Kubota M6060HDC leads on loader lift at 2,928 lb lb, compared to 2,641 lb lb for the Bobcat UT6066.

Which has more three-point hitch lift capacity, the Bobcat UT6066 or the Kubota M6060HDC?

The Bobcat UT6066 leads on 3-pt lift (24 in) at 3,594 lb lb, compared to 3,307 lb lb for the Kubota M6060HDC.
