Across 9 measurable specs, the Bobcat UT6573 leads 8 categories to 0 (1 tied). Machine pages: Bobcat UT6566 and Bobcat UT6573.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bobcat UT6566 | Bobcat UT6573 |
|---|
| Engine HP (hp) | 66.4 hp | ▲ 73.1 hp |
| PTO HP (hp) | 57.4 hp | ▲ 62.1 hp |
| Weight (lb) | 5,830 lb | ▲ 5,960 lb |
| Loader Lift (lb) | 2,614 lb | ▲ 2,813 lb |
| 3-Pt Lift (24 in) (lb) | 3,594 lb | ▲ 3,898 lb |
| Lift Height (in) | 129 in | 129 in |
| Breakout Force (lbf) | 4,558 lbf | ▲ 4,628 lbf |
| Hydraulic Flow (gpm) | 17.9 gpm | ▲ 19.2 gpm |
| Travel Speed (mph) | 19.8 mph | ▲ 19.9 mph |

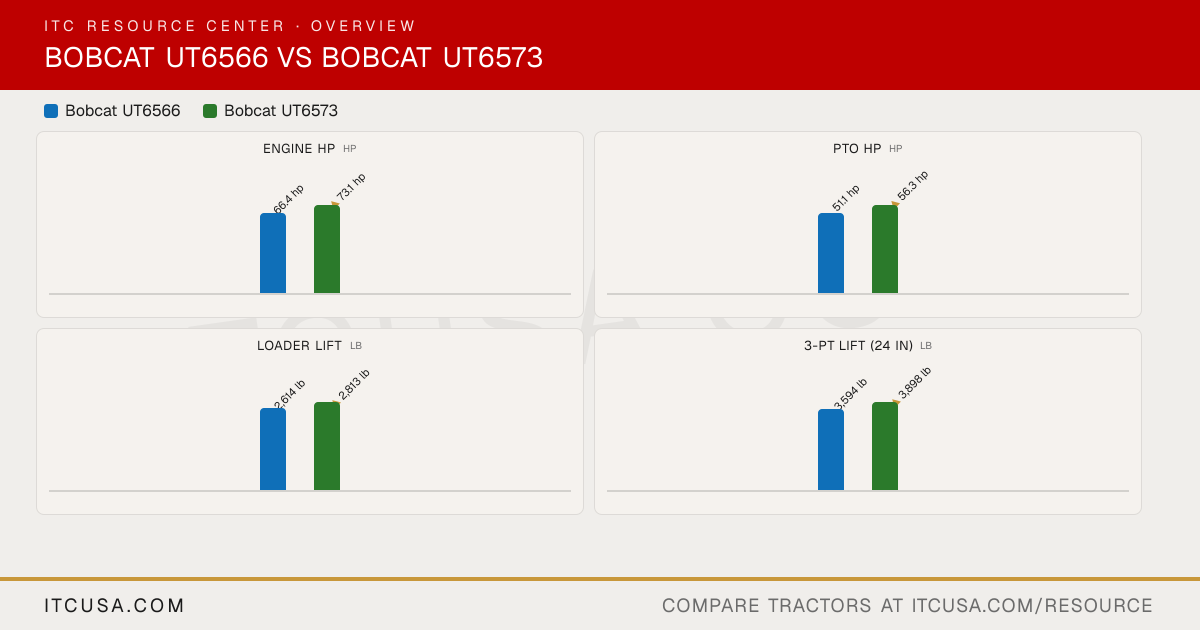

The headline numbers at a glance.
Bobcat UT6566Bobcat UT6573
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | BobcatUT6566 | BobcatUT6573 |
|---|
|
|---|
| Engine Manufacturer | Daedong | Daedong |
|---|
| Engine Model | 4HT-TP4A | 4HT-TP4A |
|---|
| Engine Type | Turbocharged diesel | Turbocharged diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 148.6 in³ | 148.6 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 66.4 hp | 73.1 hp |
|---|
| PTO Power | 57.4 hp | 62.1 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Common rail | Common rail |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 11.0 gpm | 11.0 gpm |
|---|
| Steering Flow | 6.9 gpm | 8.2 gpm |
|---|
| Total Hydraulic Flow | 17.9 gpm | 19.2 gpm |
|---|
| Overall Hydraulic Pump Flow | 17.9 gpm | 19.2 gpm |
|---|
| Hydraulic System Type | Not Published | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | 1 |
|---|
| No. of Optional Remote Valves | 2 | 2 |
|---|
|
|---|
| Fuel Tank Capacity | 25.1 gal | 25.1 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540/540E rpm | 540/540E rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 3,594 lb | 3,898 lb |
|---|
| Lift Control Type | Position with draft control | Position with draft control |
|---|
|
|---|
| Transmission Type | 3-range powershuttle with electronic clutch | 3-range powershuttle with electronic clutch |
|---|
| No. of Speeds | 12 forward, 12 reverse | 12 forward, 12 reverse |
|---|
| Max Travel Speed (Forward) | 19.8 mph | 19.9 mph |
|---|
| Max Travel Speed (Reverse) | 19.5 mph | 19.6 mph |
|---|
| Clutch | Electronic clutch | Electronic clutch |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering with tilt wheel | Power steering with tilt wheel |
|---|
| Brakes | Wet multi-disc | Wet multi-disc |
|---|
| Seat Suspension & Adjustability | Suspension seat, adjustable (standard) | Suspension seat, adjustable (standard) |
|---|
| Front Axle Type | Four-wheel drive (standard) | Four-wheel drive (standard) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 77.2 in | 83.5 in |
|---|
| Wheelbase | 82.7 in | 83.9 in |
|---|
| Ground Clearance | 12.3 in | 12.3 in |
|---|
| Min. Turn Radius without Brakes | 147.0 in | 154.0 in |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 99.3 in | 101.1 in |
|---|
| Overall Length | 148.8 in | 150.0 in |
|---|
|
|---|
| Tractor Weight (Base) | 5,830 lb (operating weight) | 5,960 lb (operating weight) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Industrial (standard), Agricultural, Multi-Use | Industrial (standard), Agricultural, Multi-Use |
|---|
| R1 Agricultural - Front | 9.5-24 | 11.2-24 |
|---|
| R1 Agricultural - Rear | 16.9-30 | 16.9-30 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | 12.5/80-18 | 12.5/80-18 |
|---|
| R4 Industrial - Rear | 18.4-24 | 18.4-24 |
|---|
|
|---|
| Quick Attach Loader System | Bob-Tach | Bob-Tach |
|---|
| Loader Model | FL10 | FL10 |
|---|
| Loader Lift Height | FL10: 129.0 in (to pivot pin) | FL10: 129.0 in (to pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | FL10: 2,614 lb (at pivot pin, max height) | FL10: 2,813 lb |
|---|
| Loader Breakout Force | FL10: 4,558 lb (at pivot point) | FL10: 4,628 lb (at pivot point) |
|---|
|
|---|
| Warranty Length & Coverage | Basic 24 months or 1,500 hours; powertrain 36 months or 2,000 hours | Basic 24 months or 1,500 hours; powertrain 36 months or 2,000 hours |
|---|
Bobcat UT6566 vs Bobcat UT6573: Quick Answers
- Which has more horsepower, the Bobcat UT6566 or the Bobcat UT6573?
- The Bobcat UT6573 leads on engine hp at 73.1 hp hp, compared to 66.4 hp hp for the Bobcat UT6566.
- Which has more PTO horsepower, the Bobcat UT6566 or the Bobcat UT6573?
- The Bobcat UT6573 leads on pto hp at 62.1 hp hp, compared to 57.4 hp hp for the Bobcat UT6566.
- Which is heavier, the Bobcat UT6566 or the Bobcat UT6573?
- The Bobcat UT6573 leads on weight at 5,960 lb lb, compared to 5,830 lb lb for the Bobcat UT6566.
- Which has more loader lift capacity, the Bobcat UT6566 or the Bobcat UT6573?
- The Bobcat UT6573 leads on loader lift at 2,813 lb lb, compared to 2,614 lb lb for the Bobcat UT6566.
- Which has more three-point hitch lift capacity, the Bobcat UT6566 or the Bobcat UT6573?
- The Bobcat UT6573 leads on 3-pt lift (24 in) at 3,898 lb lb, compared to 3,594 lb lb for the Bobcat UT6566.
