Across 8 measurable specs, the Kioti RX6620 leads 4 categories to 3 (1 tied). Machine pages: Bobcat UT6566 and Kioti RX6620.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bobcat UT6566 | Kioti RX6620 |
|---|
| Engine HP (hp) | ▲ 66.4 hp | 66 hp |
| PTO HP (hp) | 57.4 hp | ▲ 57.6 hp |
| Weight (lb) | ▲ 5,830 lb | 5,202 lb |
| Loader Lift (lb) | 2,641 lb | ▲ 3,384 lb |
| 3-Pt Lift (24 in) (lb) | 3,594 lb | 3,594 lb |
| Lift Height (in) | 129.3 in | ▲ 133.9 in |
| Breakout Force (lbf) | n/a | 5,359 lbf |
| Hydraulic Flow (gpm) | ▲ 19.2 gpm | 17.9 gpm |
| Travel Speed (mph) | 19.8 mph | ▲ 21.8 mph |

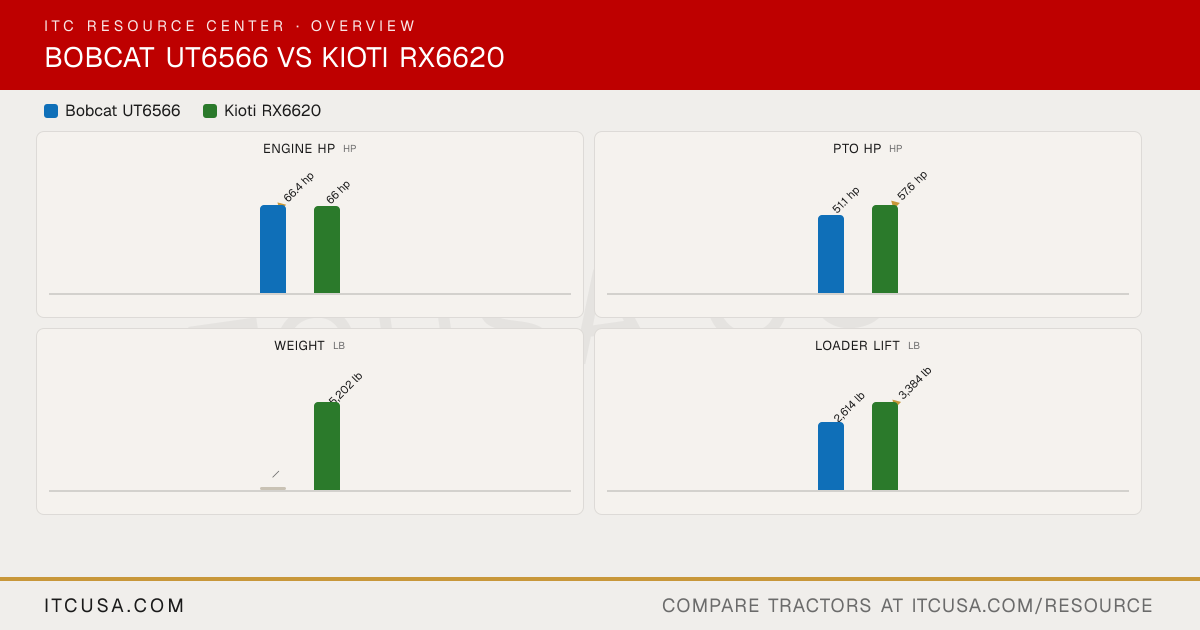

The headline numbers at a glance.
Bobcat UT6566Kioti RX6620
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | BobcatUT6566 | KiotiRX6620 |
|---|
|
|---|
| Engine Manufacturer | Daedong | KIOTI |
|---|
| Engine Model | 4HT-TP4A | 4F243T |
|---|
| Engine Type | Turbocharged diesel | In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4F243T) |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 148.6 in³ | 148.6 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 66.4 hp | 66 hp |
|---|
| PTO Power | 57.4 hp | 57.6 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Not Published | Water-cooled |
|---|
| Air Cleaner | Not Published | Dry element |
|---|
| Fuel System | Common rail | Common Rail Direct Injection (CRDI) |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Gear |
|---|
| Implement Flow | 11.0 gpm | 11.0 gpm |
|---|
| Steering Flow | 8.2 gpm | 6.9 gpm |
|---|
| Total Hydraulic Flow | 19.2 gpm | 17.9 gpm |
|---|
| Overall Hydraulic Pump Flow | 19.2 gpm | 17.9 gpm |
|---|
| Hydraulic System Type | Not Published | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | 1 |
|---|
| No. of Optional Remote Valves | 2 | 2 |
|---|
|
|---|
| Fuel Tank Capacity | 25.1 gal | 22.5 gal |
|---|
| Coolant Capacity | Not Published | 2.40 gal |
|---|
| Crankcase Capacity | Not Published | 2.2 gal |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 15.9 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 2.2 gal |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540/540E rpm | 540 / 540E rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | Not Published | 4,575 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3594 lb | 3,594 lb |
|---|
| Lift Control Type | Position with draft control | Position, Draft, Mixed Control |
|---|
|
|---|
| Transmission Type | 3-range powershuttle with electronic clutch | Manual: Synchro Shuttle |
|---|
| No. of Speeds | 12 forward, 12 reverse | 12 forward / 12 reverse |
|---|
| Max Travel Speed (Forward) | 19.8 mph | 21.79 mph |
|---|
| Max Travel Speed (Reverse) | 19.5 mph | 21.42 mph |
|---|
| Clutch | Electronic clutch | Dry Single Plate |
|---|
| Differential Lock & Limited Slip Options | Not Published | Rear differential lock (standard) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering with tilt wheel | Hydrostatic Power Steering |
|---|
| Brakes | Wet multi-disc | Wet Multi Disc |
|---|
| Seat Suspension & Adjustability | Suspension seat, fully adjustable (standard) | Adjustable Seat |
|---|
| Front Axle Type | Four-wheel drive (standard) | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 148.8 in | 145.0 in |
|---|
| Overall Width | 77.2 in | 70.9 in |
|---|
| Wheelbase | 82.7 in | 82.7 in |
|---|
| Ground Clearance | 12.3 in | 16.5 in |
|---|
| Min. Turn Radius without Brakes | 147.0 in | 10.2 ft (with brake applied) |
|---|
| Height to Top of ROPS | Not Published | 105.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 99.3 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 5830 lb | 5,202 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Industrial (standard), Agricultural, Multi-Use | R1 Agricultural, R3 Turf, R4 Industrial |
|---|
| R1 Agricultural - Front | 9.5-24 | 9.5-20 |
|---|
| R1 Agricultural - Rear | 16.9-30 | 14.9-28 |
|---|
| R3 Turf - Front | Not Published | 31x13.5-15/8 |
|---|
| R3 Turf - Rear | Not Published | 44x18-20/4 |
|---|
| R4 Industrial - Front | 12.5/80-18 | 12.5/80-18 |
|---|
| R4 Industrial - Rear | 18.4-24 | 18.4-24/8 |
|---|
|
|---|
| Quick Attach Loader System | Bob-Tach | Built-in parking stand; designed to be quickly and easily attached and detached. |
|---|
| Loader Model | FL10 | KL7320 |
|---|
| Loader Lift Height | 129.3 in | KL7320: 133.9 in (to pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | 2641 lb | KL7320: 3,384 lb (to full height at pivot pins) |
|---|
| Loader Breakout Force | Not Published | KL7320: 5,359 lb (at pivot pins) |
|---|
|
|---|
| Warranty Length & Coverage | 24 months or 1,500 hours (whichever occurs first); powertrain 36 months or 2,000 hours | Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage. |
|---|
Bobcat UT6566 vs Kioti RX6620: Quick Answers
- Which has more horsepower, the Bobcat UT6566 or the Kioti RX6620?
- The Bobcat UT6566 leads on engine hp at 66.4 hp hp, compared to 66 hp hp for the Kioti RX6620.
- Which has more PTO horsepower, the Bobcat UT6566 or the Kioti RX6620?
- The Kioti RX6620 leads on pto hp at 57.6 hp hp, compared to 57.4 hp hp for the Bobcat UT6566.
- Which is heavier, the Bobcat UT6566 or the Kioti RX6620?
- The Bobcat UT6566 leads on weight at 5,830 lb lb, compared to 5,202 lb lb for the Kioti RX6620.
- Which has more loader lift capacity, the Bobcat UT6566 or the Kioti RX6620?
- The Kioti RX6620 leads on loader lift at 3,384 lb lb, compared to 2,641 lb lb for the Bobcat UT6566.
- Which has more three-point hitch lift capacity, the Bobcat UT6566 or the Kioti RX6620?
- They are effectively tied: both machines are rated at 3,594 lb lb for 3-pt lift (24 in).
