Which has more horsepower, the Bobcat UT6566 or the Kubota M6060?

They are effectively tied: both machines are rated at 66.4 hp hp for engine hp.

Which has more PTO horsepower, the Bobcat UT6566 or the Kubota M6060?

The Kubota M6060 leads on pto hp at 56 hp hp, compared to 51.1 hp hp for the Bobcat UT6566.

Which has more loader lift capacity, the Bobcat UT6566 or the Kubota M6060?

The Kubota M6060 leads on loader lift at 2,928 lb lb, compared to 2,614 lb lb for the Bobcat UT6566.

Which has more three-point hitch lift capacity, the Bobcat UT6566 or the Kubota M6060?

The Bobcat UT6566 leads on 3-pt lift (24 in) at 3,594 lb lb, compared to 3,307 lb lb for the Kubota M6060.

Bobcat UT6566 vs Kubota M6060

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Kubota M6060 leads 3 categories to 2 (1 tied). Machine pages: Bobcat UT6566 and Kubota M6060.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat UT6566	Kubota M6060
Engine HP (hp)	66.4 hp	66.4 hp
PTO HP (hp)	51.1 hp	▲ 56 hp
Loader Lift (lb)	2,614 lb	▲ 2,928 lb
3-Pt Lift (24 in) (lb)	▲ 3,594 lb	3,307 lb
Lift Height (in)	129 in	▲ 132.7 in
Hydraulic Flow (gpm)	▲ 17.9 gpm	17.1 gpm
Travel Speed (mph)	19.8 mph	—

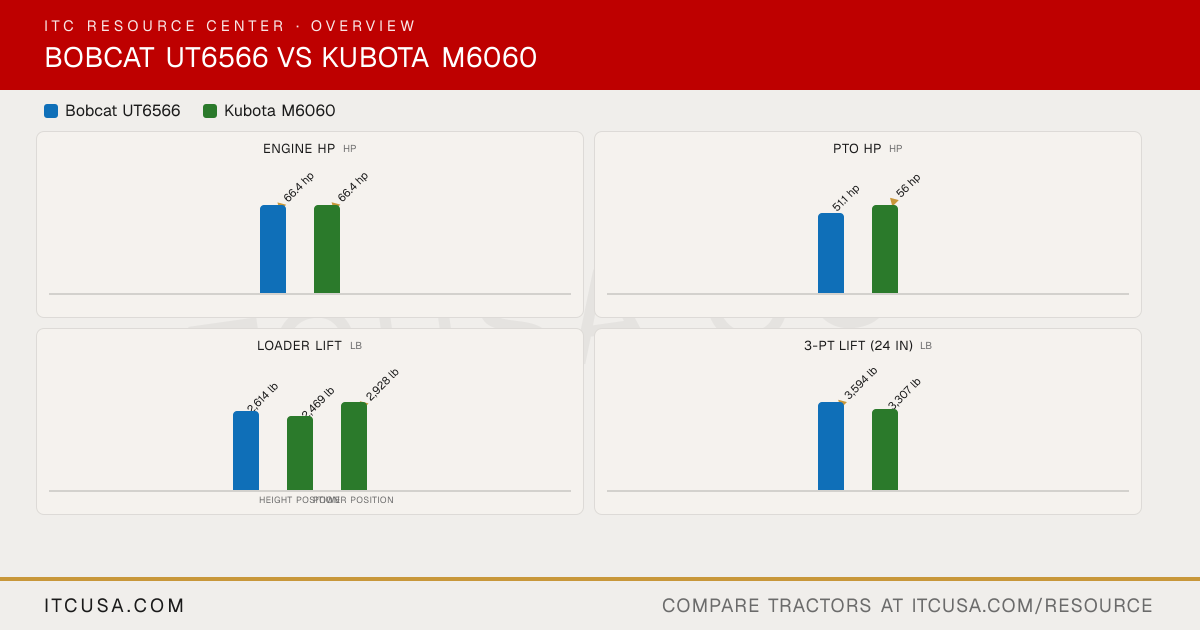

The headline numbers at a glance.

Bobcat UT6566Kubota M6060

Engine HPhp

▲66.4 hp

PTO HPhp

51.1 hp

▲56 hp

Weightlb

—

Loader Liftlb

2,614 lb

2,469 lb

▲2,928 lb

Height positionPower position

3-Pt Lift (24 in)lb

▲3,594 lb

3,307 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatUT6566	KubotaM6060


PTO Power	51.1 hp	56 hp
Alternator	Not Published	45 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Diesel	Liquid-cooled, diesel, 4-cylinder, Turbocharged
Fuel System	Not Published	Common Rail System (CRS)
Displacement	148.6 in³	203.3 (3331)
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2400 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	Daedong (4HT-TP4A)	Kubota
Engine Power (Gross)	66.4 hp	66.4 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	24 months / 1,500 hours (whichever occurs first)	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Gear
Steering Flow	6.9 gpm	6.1 gpm
Implement Flow	11.0 gpm	11.0 gpm
Total Hydraulic Flow	17.9 gpm	17.1 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	17.9 gpm	17.1 gpm
No. of Optional Remote Valves	2	2nd, 3rd (optional)
No. of Standard Remote Valves	1	1 (SCD)

PTO Rear	540/540E rpm	540 rpm (540/540E optional)
PTO Type	Independent	Live-independent PTO, electro-hydraulic clutch with brake
Lift Control Type	Position with Draft Control	Position, Draft (Top Link Sensing) & Mixed Control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Not Applicable	Not Published
Category, 3-Point Hitch	Category 2	I / II
Hitch Lift Capacity (at 24”)	3,594 lb @ 24 in behind lift point	3307 lbs

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Industrial (Ag, Multi-Use)	Standard tire size
R4 Industrial - Rear	18.4-24 (16.9-30, 480/80R26)	Not Published
R4 Industrial - Front	12.5/80-18 (9.5-24, 340/80R18)	Not Published
R1 Agricultural - Rear	Not Published	16.9-28/14.9-28
R1 Agricultural - Front	Not Published	HFC (2WD): 2.5 gal-15; HD/HDC (4WD): 9.5-24

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	25.1 gal	ROPS: 18.5 gal; CAB: 23.8 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	129.0 in	Height position: 132.7 in; Power position: 117.2 in
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	Bob-Tach	LA1154A: 2-Lever Quick Coupler
Loader Lift Capacity (Full Height)	2,614 lb @ bucket pivot	Height position: 2469 lb; Power position: 2928 lb

Clutch	Electronic Clutch	Multiple wet disc
No. of Speeds	12x12	F8/R8
Transmission Type	3-Range Powershuttle with Electronic Clutch	Hydraulic-shuttle transmission (fully synchronized)
Max Travel Speed (Forward)	19.8 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Differential Lock & Limited Slip Options	Not Published	HD/HDC (4WD): Rear differential lock standard (mechanical)

Brakes	Wet Multi-Disc	Mechanical wet disc
Steering	Not Published	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	82.7 in	HFC (2WD): 84.4 in; HD/HDC (4WD): 83.1 in
Overall Width	77.2 in	73.0 in
Ground Clearance	12.3 in	18.1 in
Height to Top of ROPS	Not Applicable	HD (4WD): 96.9 in
Height to Top of Cab Model	99.3 in	HFC (2WD), HDC (4WD): 100.6 in
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	147.0 in	HFC (2WD): 10.8 ft (3.3 m); HD/HDC (4WD): 11.8 ft (3.6 m)
Overall Length with 3-Point Hitch	148.8 in	HFC (2WD): 142.7 in; HD/HDC (4WD): 138.0 in
