| Engine Manufacturer | FPT | FPT |
|---|
| Engine Model | Not Published | Not Published |
|---|
| Engine Type | 4-cylinder diesel | 4-cylinder diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 207 in³ | 207 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|

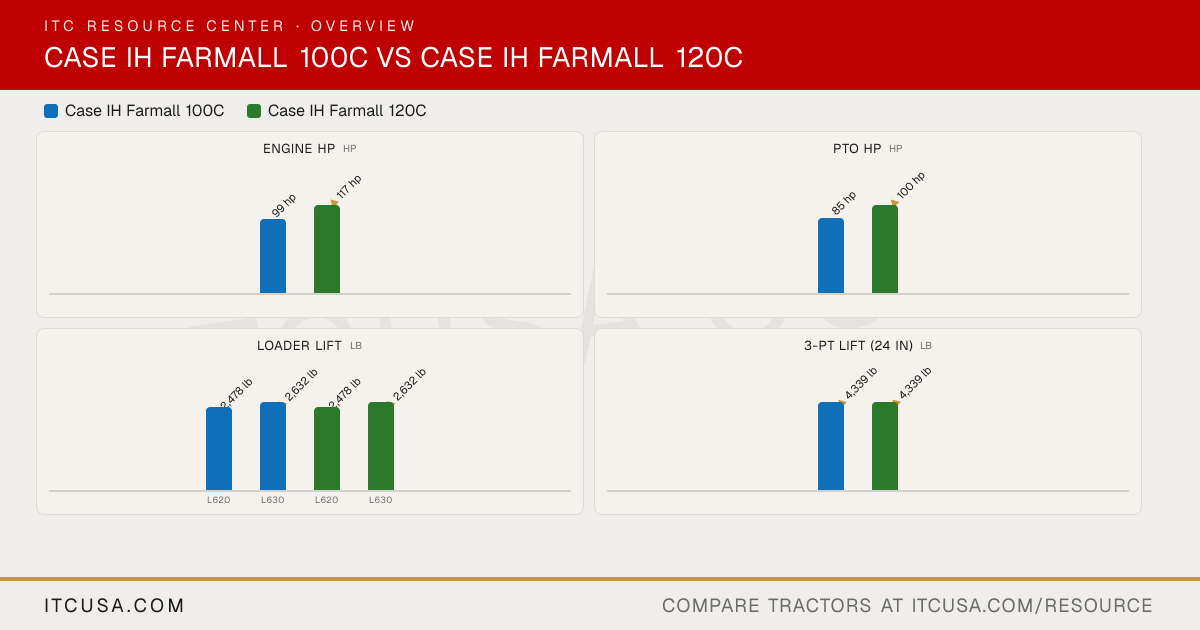

| Engine Power (Gross) | 99 hp | 117 hp |
|---|
| PTO Power | 85 hp | 100 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | High-pressure common rail electronic direct injection | High-pressure common rail electronic direct injection |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 16.9 gpm | 16.9 gpm |
|---|
| Steering Flow | 9.7 gpm | 9.7 gpm |
|---|
| Total Hydraulic Flow | 26.6 gpm (16.9 + 9.7, computed) | 26.6 gpm (16.9 + 9.7, computed) |
|---|
| Overall Hydraulic Pump Flow | 26.6 gpm (16.9 + 9.7, computed) | 26.6 gpm (16.9 + 9.7, computed) |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
| No. of Optional Remote Valves | 3 (3rd through Parts) | 3 (3rd through Parts) |
|---|
|
|---|
| Fuel Tank Capacity | 42.3 gal | 42.3 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | Not Published | Not Published |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II with flex link ends | Category II with flex link ends |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 4,339 lb (5,620 lb with auxiliary lift ram) | 4,339 lb (5,620 lb with auxiliary lift ram) |
|---|
| Lift Control Type | Mechanical draft control (MDC), top link sensing (12x12); electronic draft control (EDC), lower link sensing (Hi-Lo cab) | Mechanical draft control (MDC), top link sensing (12x12); electronic draft control (EDC), lower link sensing (Hi-Lo cab) |
|---|
|
|---|
| Transmission Type | Not Published | Not Published |
|---|
| No. of Speeds | 12F/12R (20F/20R creeper, 24F/24R Hi-Lo or 40F/40R Hi-Lo creeper optional) | 12F/12R (20F/20R creeper, 24F/24R Hi-Lo or 40F/40R Hi-Lo creeper optional) |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet clutch (power shuttle and Hi-Lo) | Wet clutch (power shuttle and Hi-Lo) |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock (12x12); electrohydraulic (Hi-Lo); MFD front axle with limited slip | Mechanical rear differential lock (12x12); electrohydraulic (Hi-Lo); MFD front axle with limited slip |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Power steering |
|---|
| Brakes | Wet disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Air suspension seat with 15-degree swivel (optional); instructional seat (optional) | Air suspension seat with 15-degree swivel (optional); instructional seat (optional) |
|---|
| Front Axle Type | HD 2WD, MFD or HD MFD with limited slip (12x12); HD MFD with limited slip (Hi-Lo) | HD 2WD, MFD or HD MFD with limited slip (12x12); HD MFD with limited slip (Hi-Lo) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 160 in (MFD cab) | 160 in (MFD cab) |
|---|
| Overall Width | 76 in (across standard fenders) | 76 in (across standard fenders) |
|---|
| Wheelbase | 90 in (MFD) | 90 in (MFD) |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 106 in (18.4R34 rear tires) | 106 in (18.4R34 rear tires) |
|---|
| Height to Top of ROPS (folded) | 82.9 in (18.4R34 rear tires) | 82.9 in (18.4R34 rear tires) |
|---|
| Height to Top of Cab Model | 102 in | 102 in |
|---|
|
|---|
| Tractor Weight (Base) | Not Published | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 agricultural or turf, radial or bias; 18.4R34 rear reference tire | R1 agricultural or turf, radial or bias; 18.4R34 rear reference tire |
|---|
| R1 Agricultural - Front | 7.50-16 (2WD); 11.2R24 or 14.9R24 (4WD) | 7.50-16 (2WD); 11.2R24 or 14.9R24 (4WD) |
|---|
| R1 Agricultural - Rear | 18.4R34 (reference tire) | 18.4R34 (reference tire) |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | L620; L630 | L620; L630 |
|---|
| Loader Lift Height | L620: 126.3 in (NSL) / 125.9 in (MSL); L630: 134 in (NSL) / 135 in (MSL) | L620: 126.3 in (NSL) / 125.9 in (MSL); L630: 134 in (NSL) / 135 in (MSL) |
|---|
| Loader Lift Capacity (Full Height) | L620: 2,478 lb (NSL) / 3,179 lb (MSL); L630: 2,632 lb (NSL) / 3,428 lb (MSL) (at 31.5 in forward of pivot pin) | L620: 2,478 lb (NSL) / 3,179 lb (MSL); L630: 2,632 lb (NSL) / 3,428 lb (MSL) (at 31.5 in forward of pivot pin) |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
