Across 4 measurable specs, the LS Tractor MT7101 leads 3 categories to 1. Machine pages: Case IH Farmall 100C and LS Tractor MT7101.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 100C | LS Tractor MT7101 |
|---|
| Engine HP (hp) | ▲ 101 hp | 100.6 hp |
| PTO HP (hp) | 85 hp | ▲ 85.5 hp |
| Weight (lb) | n/a | 7,985 lb |
| Loader Lift (lb) | n/a | 5,139 lb |
| 3-Pt Lift (24 in) (lb) | 4,123 lb | ▲ 8,378 lb |
| Lift Height (in) | n/a | 139.9 in |
| Breakout Force (lbf) | n/a | 5,313 lbf |
| Hydraulic Flow (gpm) | 21.7 gpm | ▲ 22.2 gpm |
| Travel Speed (mph) | n/a | 23.1 mph |

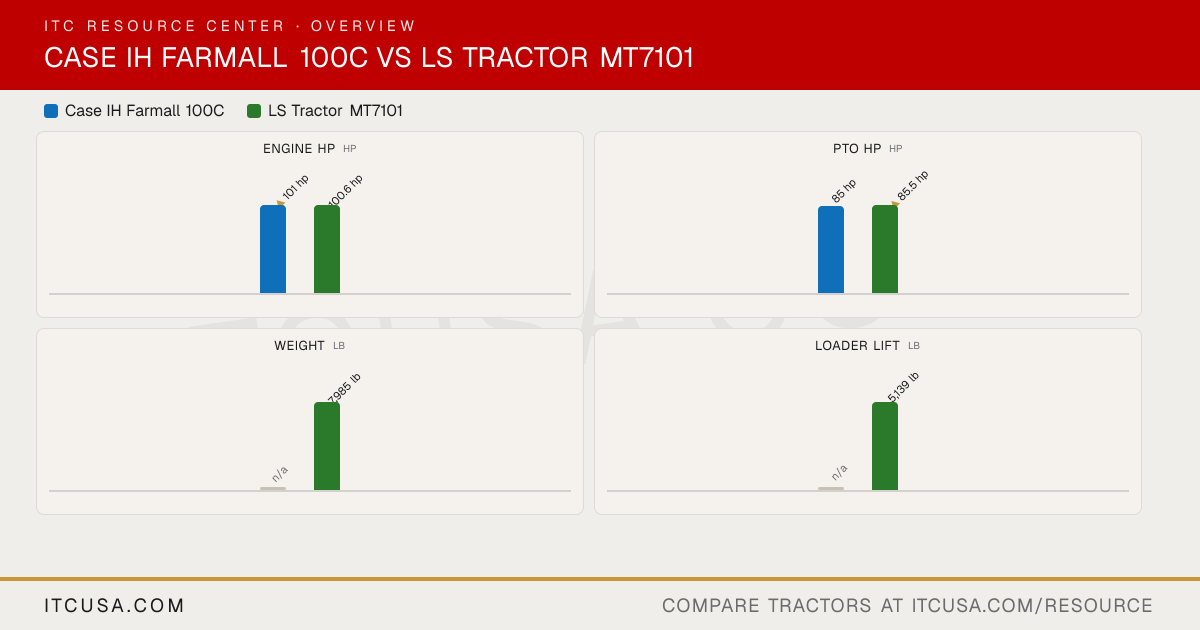

The headline numbers at a glance.
Case IH Farmall 100CLS Tractor MT7101
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 100C | LS TractorMT7101 |
|---|
|
|---|
| Engine Manufacturer | FPT | FPT Industrial |
|---|
| Engine Model | Not Published | F5G |
|---|
| Engine Type | 4-cylinder, turbocharged and aftercooled | 4-cylinder, CRDI, water-cooled |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 219.7 in³ | 206.7 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 101 hp | 100.6 hp |
|---|
| PTO Power | 85 hp | 85.5 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
| Cooling System Type | Not Published | Water-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Gear pump type, engine drive |
|---|
| Implement Flow | 21.7 gpm | 15.7 gpm |
|---|
| Steering Flow | Not Published | 6.5 gpm |
|---|
| Total Hydraulic Flow | Not Published | 22.2 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 22.2 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 3 Pairs (Front), 2 Pairs (Rear) |
|---|
| No. of Optional Remote Valves | 3 (or 3 with diverter) | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 34.3 gal | 30.4 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 14.5 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Not Published | Independent |
|---|
| PTO Rear | Not Published | 540 / 750 / 1,000 |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II with flex link ends | Category II |
|---|
| Hitch Lift Capacity | Not Published | 8,378 lb |
|---|
| Hitch Lift Capacity (at 24”) | 4,123 lb (6,938 lb optional) | Not Published |
|---|
| Lift Control Type | 12x12: mechanical draft control, top link sensing; Hi-Lo: electronic draft control, lower link sensing | Position & Draft |
|---|
|
|---|
| Transmission Type | 12x12 electronic power shuttle (standard); 20x20 electronic power shuttle with creeper (optional) | Power shuttle |
|---|
| No. of Speeds | 12F/12R (20F/20R with creeper optional) | 24 X 24 |
|---|
| Max Travel Speed (Forward) | Not Published | 23.1 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Wet clutch disks |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic differential lock; Class 1.5 HD MFD front axle with limited slip | Electro-Hydraulic Differential lock (EHD) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Not Published | Hydrostatic |
|---|
| Brakes | Not Published | Wet, Multi-disc |
|---|
| Seat Suspension & Adjustability | Not Published | Air suspension seat |
|---|
| Front Axle Type | Class 1.5 HD MFD with limited slip | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 158.2 in (MFD cab) | 152.2 in |
|---|
| Overall Width | Not Published | 78.7 in |
|---|
| Wheelbase | 92.5 in (MFD) | 90 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 106.2 in | 107 in |
|---|
|
|---|
| Tractor Weight (Base) | Not Published | 7,985 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | 9,645 lb (7,985 + 1,660, computed; LL8100 loader without bucket) |
|---|
|
|---|
| Tire Size & Options | Not Published | Ag 13.6-24 / 18.4-34; R14 340/70R28 / 460/75R38 |
|---|
| R1 Agricultural - Front | Not Published | 13.6-24 |
|---|
| R1 Agricultural - Rear | Not Published | 18.4-34 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | L635 | LL8100 |
|---|
| Loader Lift Height | Not Published | LL8100: 139.9 in |
|---|
| Loader Lift Capacity (Full Height) | Not Published | LL8100: 5,139 lb |
|---|
| Loader Breakout Force | Not Published | LL8100: 5,313 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Basic 2 years or 750 hours; powertrain 5 years or 1,500 hours |
|---|
Case IH Farmall 100C vs LS Tractor MT7101: Quick Answers
- Which has more horsepower, the Case IH Farmall 100C or the LS Tractor MT7101?
- The Case IH Farmall 100C leads on engine hp at 101 hp hp, compared to 100.6 hp hp for the LS Tractor MT7101.
- Which has more PTO horsepower, the Case IH Farmall 100C or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on pto hp at 85.5 hp hp, compared to 85 hp hp for the Case IH Farmall 100C.
- Which has more three-point hitch lift capacity, the Case IH Farmall 100C or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on 3-pt lift (24 in) at 8,378 lb lb, compared to 4,123 lb lb for the Case IH Farmall 100C.
