| Engine Manufacturer | FPT | AGCO Power |
|---|
| Engine Model | Not Published | 33 AWI HD |
|---|
| Engine Type | 4-cylinder diesel | 3-cylinder turbocharged and intercooled diesel |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 207 in³ | 201 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|

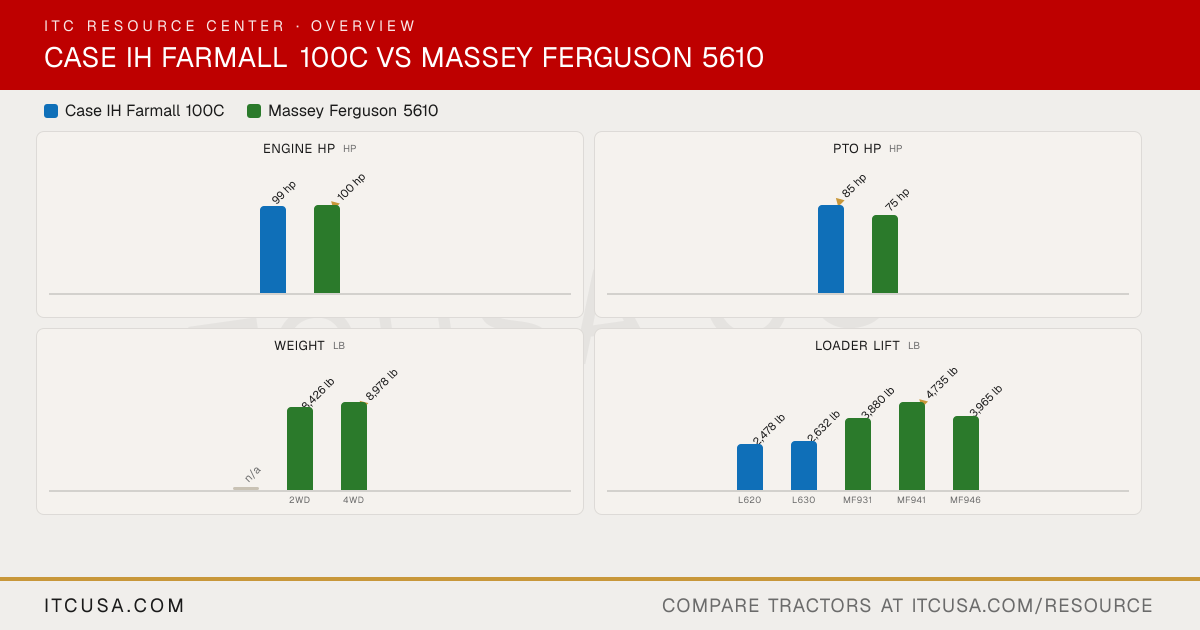

| Engine Power (Gross) | 99 hp | 100 hp |
|---|
| PTO Power | 85 hp | 75 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled (water-cooled) |
|---|
| Air Cleaner | Not Published | 2-stage dry |
|---|
| Fuel System | High-pressure common rail electronic direct injection | Common rail direct injection |
|---|
| Alternator | Not Published | 95 A |
|---|
|
|---|
| Pump Type | Not Published | Single gear-type pump (tandem gear-type pumps with optional Twin Flow) |
|---|
| Implement Flow | 16.9 gpm | 15 gpm standard; 26 gpm with optional Twin Flow |
|---|
| Steering Flow | 9.7 gpm | Not Published |
|---|
| Total Hydraulic Flow | 26.6 gpm (16.9 + 9.7, computed) | 26 gpm (Twin Flow: 15 gpm to 3-point hitch plus 11 gpm to remotes, combinable) |
|---|
| Overall Hydraulic Pump Flow | 26.6 gpm (16.9 + 9.7, computed) | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 15 gpm standard; 26 gpm with optional Twin Flow |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
| No. of Optional Remote Valves | 3 (3rd through Parts) | Up to 4 |
|---|
|
|---|
| Fuel Tank Capacity | 42.3 gal | 42 gal |
|---|
| Coolant Capacity | Not Published | 15.3 qt |
|---|
| Crankcase Capacity | Not Published | 13.7 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 17.2 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 5.3 qt axle beam; 0.85 qt each final drive |
|---|
|
|---|
| PTO Type | Independent | Independent, electro-hydraulic engagement and speed selection |
|---|
| PTO Rear | Not Published | 540/540E standard; 540/540E/1000 optional |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II with flex link ends | Category II |
|---|
| Hitch Lift Capacity | Not Published | 9,480 lb |
|---|
| Hitch Lift Capacity (at 24”) | 4,339 lb (5,620 lb with auxiliary lift ram) | 7,100 lb |
|---|
| Lift Control Type | Mechanical draft control (MDC), top link sensing (12x12); electronic draft control (EDC), lower link sensing (Hi-Lo cab) | Electronic linkage control (ELC), position and draft control, lower link draft sensing |
|---|
|
|---|
| Transmission Type | Not Published | Dyna-4 16x16 power shift and power shuttle (AUTO-DRIVE optional, 14:1 creeper optional) |
|---|
| No. of Speeds | 12F/12R (20F/20R creeper, 24F/24R Hi-Lo or 40F/40R Hi-Lo creeper optional) | 16F / 16R |
|---|
| Max Travel Speed (Forward) | Not Published | 25 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet clutch (power shuttle and Hi-Lo) | Wet multi-disc, foot pedal and electronic control |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock (12x12); electrohydraulic (Hi-Lo); MFD front axle with limited slip | Fully locking front and rear differentials, electro-hydraulically engaged |
|---|
|
|---|
| Frame Type | Not Published | Rigid structural chassis, solid cast steel flanged rear axle with internal planetary reduction |
|---|
| Steering | Power steering | Hydrostatic power steering, adjustable steering wheel |
|---|
| Brakes | Wet disc | Internal wet disc, hydraulic power assist, individual left and right foot pedals |
|---|
| Seat Suspension & Adjustability | Air suspension seat with 15-degree swivel (optional); instructional seat (optional) | Mechanical suspended swivel seat standard; manual or automatic air suspension optional |
|---|
| Front Axle Type | HD 2WD, MFD or HD MFD with limited slip (12x12); HD MFD with limited slip (Hi-Lo) | Adjustable 2WD or fixed cast steel 4WD, single piece with outboard planetary final drives |
|---|
| Front Axle Rating | Not Published | 2WD: 6,085 lb; 4WD: 10,500 lb |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 160 in (MFD cab) | 167.5 in |
|---|
| Overall Width | 76 in (across standard fenders) | 79.3 in |
|---|
| Wheelbase | 90 in (MFD) | 97.1 in |
|---|
| Ground Clearance | Not Published | 17.6 in |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 106 in (18.4R34 rear tires) | Not Published |
|---|
| Height to Top of ROPS (folded) | 82.9 in (18.4R34 rear tires) | Not Published |
|---|
| Height to Top of Cab Model | 102 in | 108.5 in |
|---|
|
|---|
| Tractor Weight (Base) | Not Published | 2WD: 8,426 lb; 4WD: 8,978 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 agricultural or turf, radial or bias; 18.4R34 rear reference tire | R1 radial agricultural tires only; 16.9R38 rear is the speed chart basis (16.9R34, 16.9R30, 18.4R30, 18.4R34, 13.6R38 listed) |
|---|
| R1 Agricultural - Front | 7.50-16 (2WD); 11.2R24 or 14.9R24 (4WD) | Not Published |
|---|
| R1 Agricultural - Rear | 18.4R34 (reference tire) | 16.9R38 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | MF931, MF941, MF946: Euro quick attach, single lever locking |
|---|
| Loader Model | L620; L630 | MF931, MF941, MF946 |
|---|
| Loader Lift Height | L620: 126.3 in (NSL) / 125.9 in (MSL); L630: 134 in (NSL) / 135 in (MSL) | MF931: 138 in; MF941: 148 in; MF946: 148 in |
|---|
| Loader Lift Capacity (Full Height) | L620: 2,478 lb (NSL) / 3,179 lb (MSL); L630: 2,632 lb (NSL) / 3,428 lb (MSL) (at 31.5 in forward of pivot pin) | MF931: 3,880 lb; MF941: 4,735 lb; MF946: 3,965 lb |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | 2-year/2,000-hour full coverage, all parts and labor |
|---|
