Across 4 measurable specs, this matchup is a dead heat: 1 categories to the Case IH Farmall 100C, 1 to the New Holland Workmaster 100 PLUS, 2 tied. Machine pages: Case IH Farmall 100C and New Holland Workmaster 100 PLUS .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Case IH Farmall 100C New Holland Workmaster 100 PLUS Engine HP (hp) 101 hp 101 hp PTO HP (hp) 85 hp 85 hp Weight (lb) 10,240 lb n/a Loader Lift (lb) n/a 3,882 lb 3-Pt Lift (24 in) (lb) 4,123 lb n/a Lift Height (in) ▲ 149 in143.9 in Hydraulic Flow (gpm) 21.7 gpm ▲ 26.6 gpm

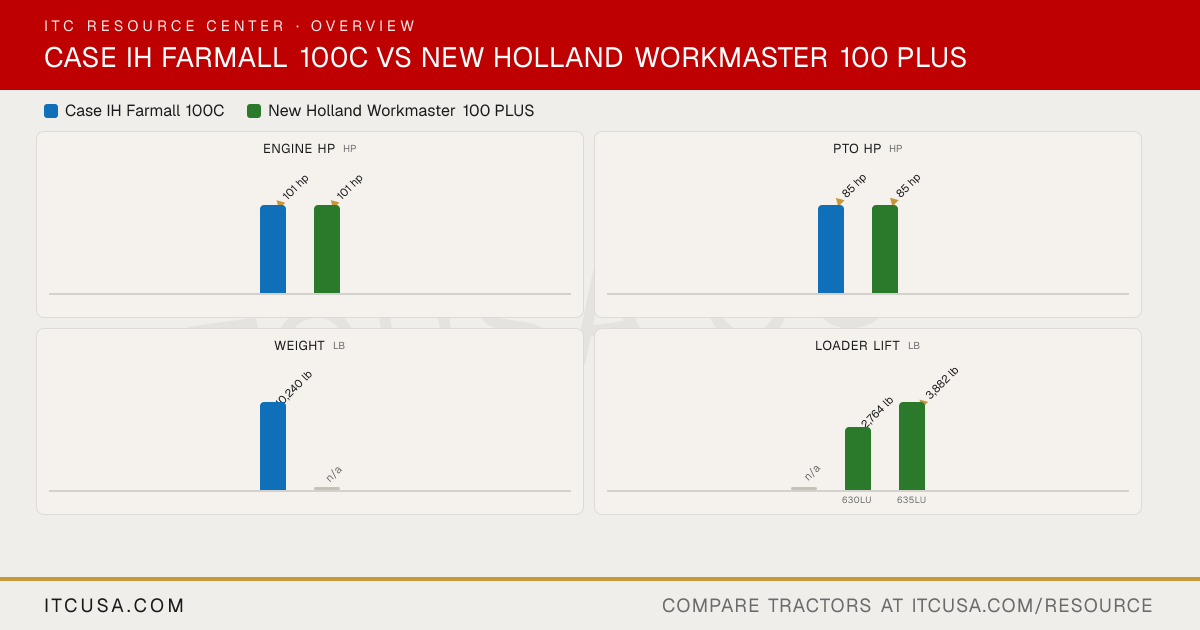

Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall 100C New Holland Workmaster 100 PLUS
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall 100C New Holland Workmaster 100 PLUS
▶ EngineEngine Manufacturer FPT FPT Engine Model Not Published F36 Engine Type 4-cylinder, turbocharged and aftercooled 4-cylinder No. of Cylinders 4 4 Displacement 219.7 in³ Not Published Rated Engine Speed 2300 rpm Not Published Engine Power (Gross) 101 hp 101 hp PTO Power 85 hp 85 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Not Published Not Published Air Cleaner Not Published Not Published Fuel System Not Published Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 21.7 gpm Not Published Steering Flow Not Published Not Published Total Hydraulic Flow Not Published 26.6 gpm Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves 3 (or 3 with diverter) Not Published ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 34.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Not Published Not Published PTO Rear Not Published Not Published Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II with flex link ends Not Published Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 4,123 lb (6,938 lb optional) Not Published Lift Control Type 12x12: mechanical draft control, top link sensing; Hi-Lo: electronic draft control, lower link sensing Not Published ▶ Transmission & DrivetrainTransmission Type 12x12 electronic power shuttle (standard); 20x20 electronic power shuttle with creeper (optional) 12x12 electronic power shuttle No. of Speeds 12F/12R (20F/20R with creeper optional) 12 forward / 12 reverse Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Electro-hydraulic differential lock; Class 1.5 HD MFD front axle with limited slip Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Not Published Brakes Not Published Not Published Seat Suspension & Adjustability Not Published Air ride seat (standard); instructor seat available Front Axle Type Class 1.5 HD MFD with limited slip Class 1.0 HD heavy-duty front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width Not Published Not Published Wheelbase 92.5 in (MFD) Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 106.2 in Not Published Overall Length 158.2 in (MFD cab) Not Published ▶ WeightTractor Weight (Base) 10,240 lb (MFD, cab, without ballast) Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model L635 630LU; 635LU Loader Lift Height L635: up to 149 in 143.9 in (630LU and 635LU) Loader Lift Capacity (Full Height) Not Published 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, @ 31.5 in) Loader Breakout Force Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
Case IH Farmall 100C vs New Holland Workmaster 100 PLUS: Quick Answers
Which has more horsepower, the Case IH Farmall 100C or the New Holland Workmaster 100 PLUS? They are effectively tied: both machines are rated at 101 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 100C or the New Holland Workmaster 100 PLUS? They are effectively tied: both machines are rated at 85 hp hp for pto hp.
