Case IH Farmall 105U vs Case IH Farmall 125A
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 5 measurable specs, the Case IH Farmall 125A leads 4 categories to 1. Machine pages: Case IH Farmall 105U and Case IH Farmall 125A.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

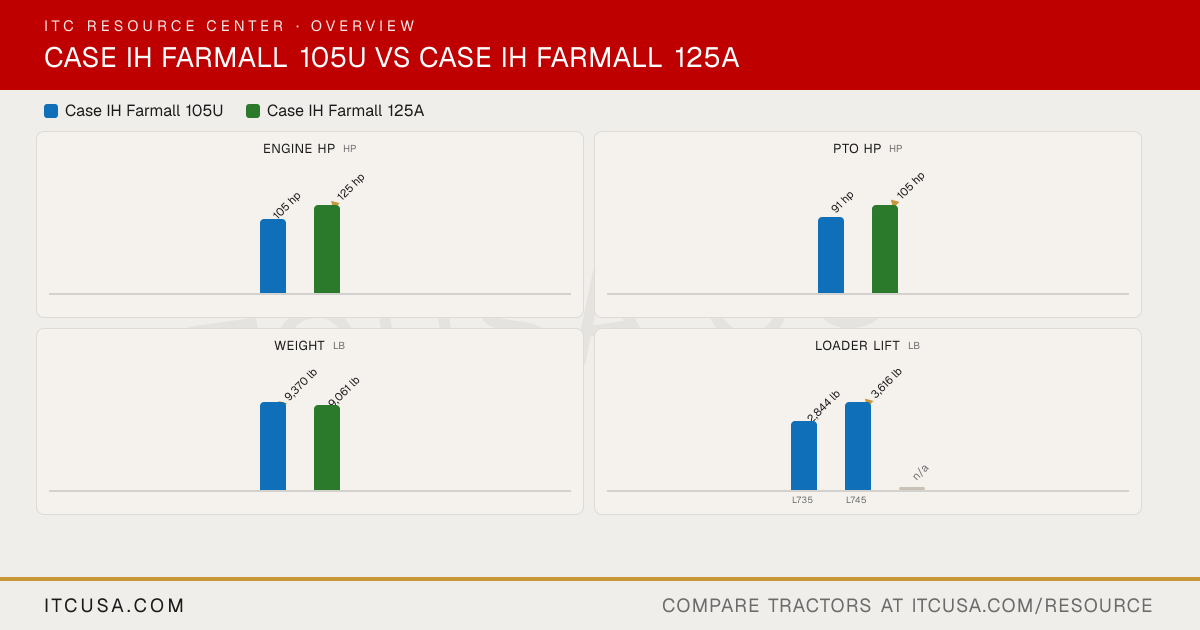

Category Verdict
| Spec | Case IH Farmall 105U | Case IH Farmall 125A |
|---|---|---|
| Engine HP (hp) | 105 hp | ▲ 125 hp |
| PTO HP (hp) | 91 hp | ▲ 105 hp |
| Weight (lb) | ▲ 9,370 lb | 9,061 lb |
| Loader Lift (lb) | 3,616 lb | n/a |
| 3-Pt Lift (24 in) (lb) | 6,393 lb | ▲ 7,200 lb |
| Lift Height (in) | 146.8 in | n/a |
| Breakout Force (lbf) | 3,858 lbf | n/a |
| Hydraulic Flow (gpm) | 27.2 gpm | ▲ 31 gpm |
| Travel Speed (mph) | n/a | 18.4 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 105U | Case IHFarmall 125A |
|---|
| Engine Manufacturer | FPT | FPT |
|---|---|---|
| Engine Model | Not Published | Not Published |
| Engine Type | 4-cylinder diesel, electronic high-pressure common rail | Turbocharged 6-cylinder diesel, 12 valves |
| No. of Cylinders | 4 | 6 |
| Displacement | 207 in³ | 411 in³ |
| Rated Engine Speed | 2300 rpm | 2200 rpm |
| Engine Power (Gross) | 105 hp | 125 hp |
| PTO Power | 91 hp | 105 hp |
| Engine Emissions Constraints | Tier 4 | Tier 3 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Not Published | Not Published |
| Fuel System | Electronic high-pressure common rail | Mechanical injection |
| Alternator | 120 A | 120 A |
Case IH Farmall 105U vs Case IH Farmall 125A: Quick Answers
- Which has more horsepower, the Case IH Farmall 105U or the Case IH Farmall 125A?
- The Case IH Farmall 125A leads on engine hp at 125 hp hp, compared to 105 hp hp for the Case IH Farmall 105U.
- Which has more PTO horsepower, the Case IH Farmall 105U or the Case IH Farmall 125A?
- The Case IH Farmall 125A leads on pto hp at 105 hp hp, compared to 91 hp hp for the Case IH Farmall 105U.
- Which is heavier, the Case IH Farmall 105U or the Case IH Farmall 125A?
- The Case IH Farmall 105U leads on weight at 9,370 lb lb, compared to 9,061 lb lb for the Case IH Farmall 125A.
- Which has more three-point hitch lift capacity, the Case IH Farmall 105U or the Case IH Farmall 125A?
- The Case IH Farmall 125A leads on 3-pt lift (24 in) at 7,200 lb lb, compared to 6,393 lb lb for the Case IH Farmall 105U.
