Case IH Farmall 105U vs Case IH Farmall 95C
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Case IH Farmall 105U leads 6 categories to 2. Machine pages: Case IH Farmall 105U and Case IH Farmall 95C.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

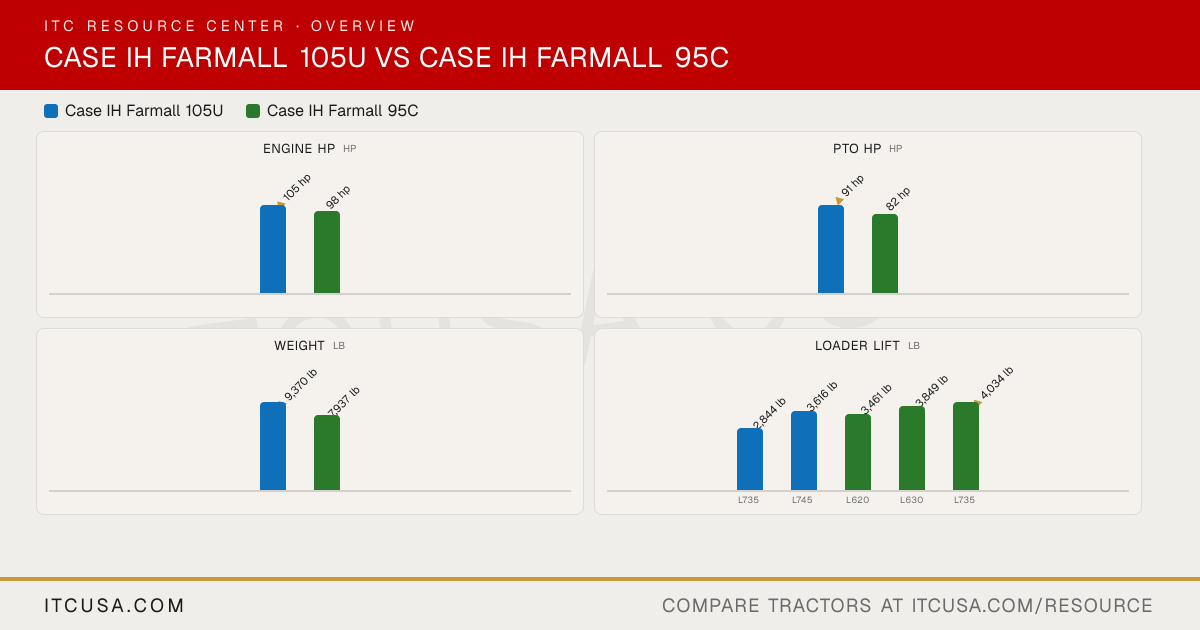

Category Verdict
| Spec | Case IH Farmall 105U | Case IH Farmall 95C |
|---|---|---|
| Engine HP (hp) | ▲ 105 hp | 98 hp |
| PTO HP (hp) | ▲ 91 hp | 82 hp |
| Weight (lb) | ▲ 9,370 lb | 7,937 lb |
| Loader Lift (lb) | 3,616 lb | ▲ 4,034 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 6,393 lb | 5,620 lb |
| Lift Height (in) | ▲ 146.8 in | 137 in |
| Breakout Force (lbf) | 3,858 lbf | ▲ 6,649 lbf |
| Hydraulic Flow (gpm) | ▲ 27.2 gpm | 19.8 gpm |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 105U | Case IHFarmall 95C |
|---|
| Engine Manufacturer | FPT | FPT |
|---|---|---|
| Engine Model | Not Published | F5D |
| Engine Type | 4-cylinder diesel, electronic high-pressure common rail | Turbocharged and intercooled 4-cylinder diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 207 in³ | 207 in³ |
| Rated Engine Speed | 2300 rpm | 2300 rpm |
| Engine Power (Gross) | 105 hp | 98 hp |
| PTO Power | 91 hp | 82 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Not Published | Dual dry element |
| Fuel System | Electronic high-pressure common rail | Electronic high-pressure common rail direct injection |
| Alternator | 120 A | 120 A |
Case IH Farmall 105U vs Case IH Farmall 95C: Quick Answers
- Which has more horsepower, the Case IH Farmall 105U or the Case IH Farmall 95C?
- The Case IH Farmall 105U leads on engine hp at 105 hp hp, compared to 98 hp hp for the Case IH Farmall 95C.
- Which has more PTO horsepower, the Case IH Farmall 105U or the Case IH Farmall 95C?
- The Case IH Farmall 105U leads on pto hp at 91 hp hp, compared to 82 hp hp for the Case IH Farmall 95C.
- Which is heavier, the Case IH Farmall 105U or the Case IH Farmall 95C?
- The Case IH Farmall 105U leads on weight at 9,370 lb lb, compared to 7,937 lb lb for the Case IH Farmall 95C.
- Which has more loader lift capacity, the Case IH Farmall 105U or the Case IH Farmall 95C?
- The Case IH Farmall 95C leads on loader lift at 4,034 lb lb, compared to 3,616 lb lb for the Case IH Farmall 105U.
- Which has more three-point hitch lift capacity, the Case IH Farmall 105U or the Case IH Farmall 95C?
- The Case IH Farmall 105U leads on 3-pt lift (24 in) at 6,393 lb lb, compared to 5,620 lb lb for the Case IH Farmall 95C.
