Case IH Farmall 105U vs Massey Ferguson MF 5M.105
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 5 measurable specs, this matchup is a dead heat: 2 categories to the Case IH Farmall 105U, 2 to the Massey Ferguson MF 5M.105, 1 tied. Machine pages: Case IH Farmall 105U and Massey Ferguson MF 5M.105.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict

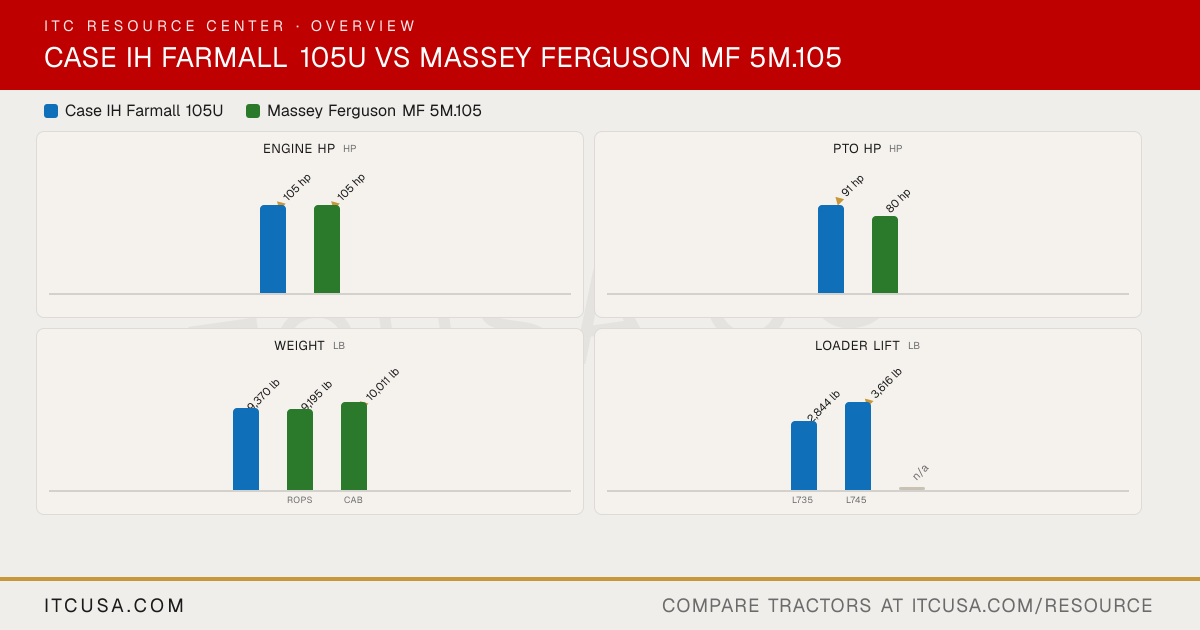

| Spec | Case IH Farmall 105U | Massey Ferguson MF 5M.105 |
|---|---|---|
| Engine HP (hp) | 105 hp | 105 hp |
| PTO HP (hp) | ▲ 91 hp | 80 hp |
| Weight (lb) | 9,370 lb | ▲ 10,011 lb |
| Loader Lift (lb) | 3,616 lb | n/a |
| 3-Pt Lift (24 in) (lb) | 6,393 lb | ▲ 7,500 lb |
| Lift Height (in) | 146.8 in | n/a |
| Breakout Force (lbf) | 3,858 lbf | n/a |
| Hydraulic Flow (gpm) | ▲ 27.2 gpm | 23.8 gpm |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 105U | Massey FergusonMF 5M.105 |
|---|
| Engine Manufacturer | FPT | AGCO Power |
|---|---|---|
| Engine Model | Not Published | Not Published |
| Engine Type | 4-cylinder diesel, electronic high-pressure common rail | 4-cylinder, turbocharged intercooled diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 207 in³ | 268.5 in³ |
| Rated Engine Speed | 2300 rpm | 2200 rpm |
| Engine Power (Gross) | 105 hp | 105 hp |
| PTO Power | 91 hp | 80 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid cooled |
| Air Cleaner | Not Published | Not Published |
| Fuel System | Electronic high-pressure common rail | High-pressure common-rail direct fuel injection |
| Alternator | 120 A | Platform: 80 A; Cab: 120 A |
Case IH Farmall 105U vs Massey Ferguson MF 5M.105: Quick Answers
- Which has more horsepower, the Case IH Farmall 105U or the Massey Ferguson MF 5M.105?
- They are effectively tied: both machines are rated at 105 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 105U or the Massey Ferguson MF 5M.105?
- The Case IH Farmall 105U leads on pto hp at 91 hp hp, compared to 80 hp hp for the Massey Ferguson MF 5M.105.
- Which is heavier, the Case IH Farmall 105U or the Massey Ferguson MF 5M.105?
- The Massey Ferguson MF 5M.105 leads on weight at 10,011 lb lb, compared to 9,370 lb lb for the Case IH Farmall 105U.
- Which has more three-point hitch lift capacity, the Case IH Farmall 105U or the Massey Ferguson MF 5M.105?
- The Massey Ferguson MF 5M.105 leads on 3-pt lift (24 in) at 7,500 lb lb, compared to 6,393 lb lb for the Case IH Farmall 105U.
