Across 5 measurable specs, the Case IH Farmall 125A leads 4 categories to 1. Machine pages: Case IH Farmall 120C and Case IH Farmall 125A.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 120C | Case IH Farmall 125A |
|---|
| Engine HP (hp) | 117 hp | ▲ 125 hp |
| PTO HP (hp) | 99 hp | ▲ 105 hp |
| Weight (lb) | ▲ 10,240 lb | 9,061 lb |
| 3-Pt Lift (24 in) (lb) | 4,123 lb | ▲ 7,200 lb |
| Lift Height (in) | 149 in | n/a |
| Hydraulic Flow (gpm) | 21.7 gpm | ▲ 31 gpm |
| Travel Speed (mph) | n/a | 18.4 mph |

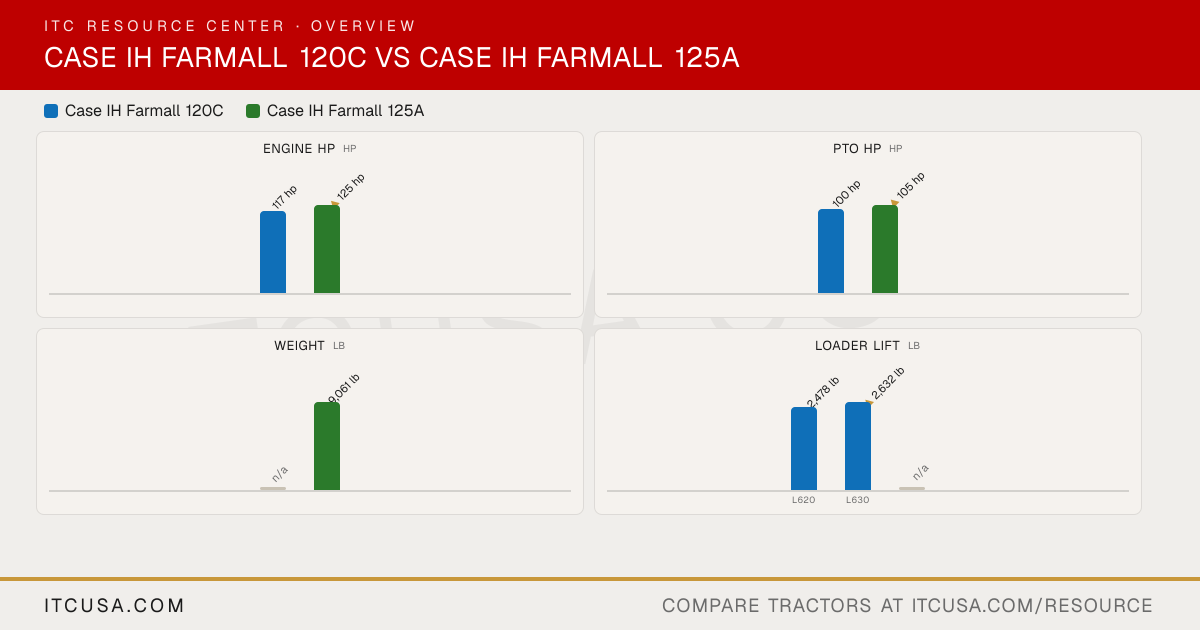

The headline numbers at a glance.
Case IH Farmall 120CCase IH Farmall 125A
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 120C | Case IHFarmall 125A |
|---|
|
|---|
| Engine Manufacturer | FPT | FPT |
|---|
| Engine Model | Not Published | Not Published |
|---|
| Engine Type | 4-cylinder, turbocharged and aftercooled | Turbocharged 6-cylinder diesel, 12 valves |
|---|
| No. of Cylinders | 4 | 6 |
|---|
| Displacement | 219.7 in³ | 411 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 117 hp | 125 hp |
|---|
| PTO Power | 99 hp | 105 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 3 |
|---|
| Cooling System Type | Not Published | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Mechanical injection |
|---|
| Alternator | Not Published | 120 A |
|---|
|
|---|
| Pump Type | Not Published | Fixed displacement pump |
|---|
| Implement Flow | 21.7 gpm | 22 gpm |
|---|
| Steering Flow | Not Published | 9 gpm |
|---|
| Total Hydraulic Flow | Not Published | 31 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 31 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
| No. of Optional Remote Valves | 3 (or 3 with diverter) | 4 |
|---|
|
|---|
| Fuel Tank Capacity | 34.3 gal | 62 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | 14.8 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 65.5 qt |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Not Published | Independent |
|---|
| PTO Rear | Not Published | 540/1000 (two individual shafts) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II with flex link ends | Category II |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 4,123 lb (6,938 lb optional) | 7,200 lb |
|---|
| Lift Control Type | 12x12: mechanical draft control, top link sensing; Hi-Lo: electronic draft control, lower link sensing | Not Published |
|---|
|
|---|
| Transmission Type | 12x12 electronic power shuttle (standard); 20x20 electronic power shuttle with creeper (optional) | Not Published |
|---|
| No. of Speeds | 12F/12R (20F/20R with creeper optional) | 8F/8R (16F/8R optional) |
|---|
| Max Travel Speed (Forward) | Not Published | 18.4 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | 19.0 mph |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic differential lock; Class 1.0 MFD front axle with limited slip | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Not Published | Power steering |
|---|
| Brakes | Not Published | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Mechanical seat (standard); air suspension seat (optional) |
|---|
| Front Axle Type | Class 1.0 MFD with limited slip | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | Not Published | Not Published |
|---|
| Wheelbase | 92.5 in (MFD) | 105 in (2WD); 104 in (MFD) |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 106.2 in | Not Published |
|---|
| Overall Length | 158.2 in (MFD cab) | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 10,240 lb (MFD, cab, without ballast) | 9,061 lb (2WD ROPS); 9,700 lb (MFD ROPS); 9,766 lb (2WD cab); 10,406 lb (MFD cab) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | 18.4-34 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Automatic quick-coupling loader mount with combined hydraulic connection |
|---|
| Loader Model | L635 | L755 |
|---|
| Loader Lift Height | L635: up to 149 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | Not Published | Not Published |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
Case IH Farmall 120C vs Case IH Farmall 125A: Quick Answers
- Which has more horsepower, the Case IH Farmall 120C or the Case IH Farmall 125A?
- The Case IH Farmall 125A leads on engine hp at 125 hp hp, compared to 117 hp hp for the Case IH Farmall 120C.
- Which has more PTO horsepower, the Case IH Farmall 120C or the Case IH Farmall 125A?
- The Case IH Farmall 125A leads on pto hp at 105 hp hp, compared to 99 hp hp for the Case IH Farmall 120C.
- Which is heavier, the Case IH Farmall 120C or the Case IH Farmall 125A?
- The Case IH Farmall 120C leads on weight at 10,240 lb lb, compared to 9,061 lb lb for the Case IH Farmall 125A.
- Which has more three-point hitch lift capacity, the Case IH Farmall 120C or the Case IH Farmall 125A?
- The Case IH Farmall 125A leads on 3-pt lift (24 in) at 7,200 lb lb, compared to 4,123 lb lb for the Case IH Farmall 120C.
