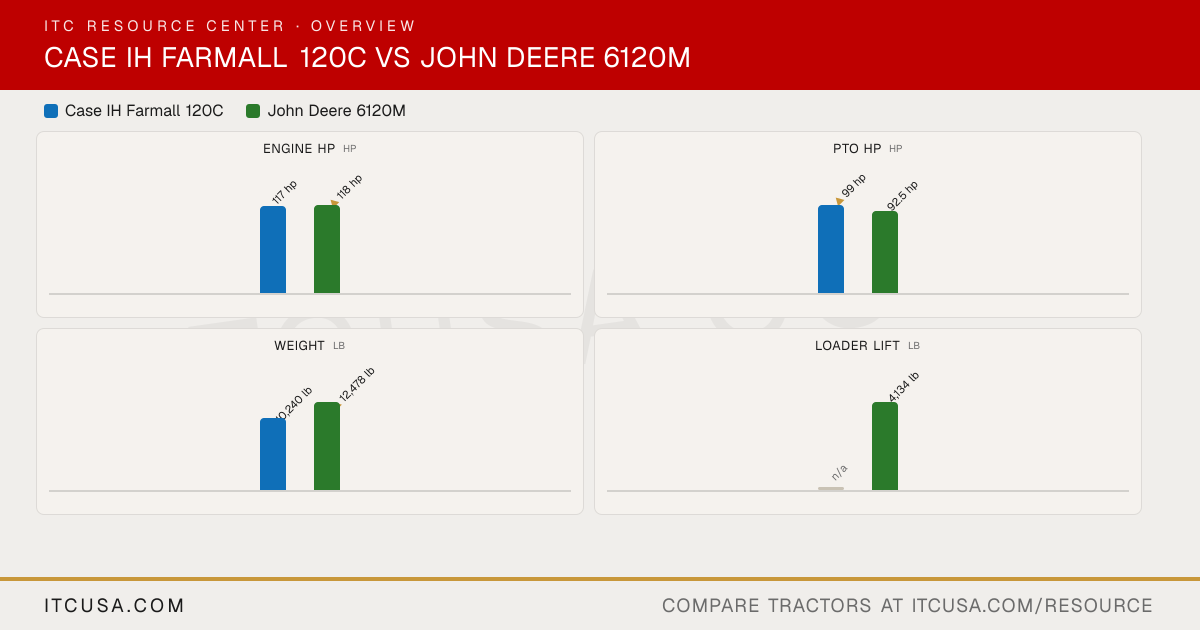

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Case IHFarmall 120C
John Deere6120M
Engine Manufacturer
FPT
John Deere
Engine Model
Not Published
PowerTech EWL
Engine Type
4-cylinder, turbocharged and aftercooled
Two-stage turbocharged with air-to-air charge air cooling and cooled exhaust gas recirculation
No. of Cylinders
4
4
Displacement
219.7 in³
275 in³
Rated Engine Speed
2300 rpm
2100 rpm
Engine Power (Gross)
117 hp
118 hp @ 2,100 rpm
PTO Power
99 hp
92.5 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Not Published
Cool-Gard II coolant, 5.8 gal system capacity
Air Cleaner
Not Published
Primary and secondary air filter elements
Fuel System
Not Published
Not Published
Alternator
Not Published
125 A, 14 V
Pump Type
Not Published
Not Published
Implement Flow
21.7 gpm
Not Published
Steering Flow
Not Published
Not Published
Total Hydraulic Flow
Not Published
21.1 gpm standard; 30.1 gpm optional
Overall Hydraulic Pump Flow
Not Published
21.1 gpm standard; 30.1 gpm optional
Hydraulic System Type
Open center
Load-sensing open system with fixed displacement 2.1 in³ gear pump (standard); closed-center PFC load-sensing system with 2.7 in³ axial piston pump (optional)
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
2 (mechanical, 200 Series; rear)
No. of Optional Remote Valves
3 (or 3 with diverter)
Up to 4 total (rear, 450 Series electronic)
Fuel Tank Capacity
34.3 gal
51.5 gal
Coolant Capacity
Not Published
5.8 gal
Crankcase Capacity
Not Published
4.2 gal
Transmission / Hydraulic System Capacity
Not Published
13.7 gal (PowrQuad Plus/AutoQuad Plus)
Front Axle Fluid Capacity
Not Published
Two-piece front axle: axle housing 1.69 gal (suspended), 1.43 gal (without suspension); final drives per side 0.21 gal (no brake), 0.37 gal (with brake). Three-piece front axle: axle housing 1.9 gal; final drives per side 0.19 to 0.21 gal (no brake), 0.32 to 0.37 gal (with brake)
PTO Type
Not Published
Electro-hydraulically operated, oil-cooled, multi-disc; standard 1.5 in 540/1000 reversible shaft
Electro-hydraulic differential lock; Class 1.0 MFD front axle with limited slip
Not Published
Frame Type
Not Published
Full frame design
Steering
Not Published
Hydrostatic steering
Brakes
Not Published
Hydraulically boosted service brakes
Seat Suspension & Adjustability
Not Published
Economy: seat with mechanical suspension, standard; standard: seat with air-suspension, optional
Front Axle Type
Class 1.0 MFD with limited slip
MFWD standard, 2WD optional; suspended MFWD (TLS) optional, also available with front brakes
Front Axle Rating
Not Published
9,655 lb (MFWD)
Drawbar Capacity
Not Published
Standard duty, field use: 4,960 lb, 3,085 lb, 2,645 lb; heavy-duty, field operation: 6,610 lb, 3,960 lb, 3,520 lb (maximum permissible static vertical load, drawbar extended 9.8 in, 13.8 in, 15.7 in, CAT 2)
Overall Width
Not Published
100.4 in (maximum width for road travel)
Wheelbase
92.5 in (MFD)
94.5 in
Ground Clearance
Not Published
Front-wheel drive axle: 11.3-25.1 in depending on front tire SRI; differential housing with drawbar: 13.7-23.5 in depending on rear tire SRI (cab + MFWD)
Min. Turn Radius without Brakes
Not Published
14 ft (4.36 m) (6110M & 6120M)
Height to Top of ROPS
Not Published
108.1 to 115.0 in depending on rear tire SRI (ground to extended ROPS, without beacon light, open operator's station, front-wheel drive axle)
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
106.2 in
105.4-115.3 in depending on rear tire SRI (ground to cab roof, without beacon light)
Overall Length
158.2 in (MFD cab)
172.3 in
Tractor Weight (Base)
10,240 lb (MFD, cab, without ballast)
12,478 lb (total weight, without fuel in tank)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R1 Agricultural - Front
Not Published
Not Published
R1 Agricultural - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
Not Published
Not Published
Quick Attach Loader System
Not Published
Automatic mast latch
Loader Model
L635
600R; 620R (up to MY19); 640R (up to MY19)
Loader Lift Height
L635: up to 149 in
600R: 154 in
Loader Lift Capacity (Full Height)
Not Published
600R: 4,134 lb (at pivot, full height)
Loader Breakout Force
Not Published
600R: 5,875 lb (boom breakout at pivot)
Warranty Length & Coverage
Not Published
Basic 24 months or 2,000 hours total, factory limited warranty
